Create Centerline between polygons

[reza]

Hello my dears:

in attached file I pose a problem,

Unfortunately, I search in internet but do't got the results

Except in ArcGIS-Esri Software

Is in the map3d software can be draw centerline like ArcGIS-Esri or need to code

I am grateful guide

test.dwg

[rlx]

Hi Reza,





Guess nobody knows how to help you??? Have never used the software you mention so I can't help you either unfortunately





gr. Rlx

[reza]

thank you for reply

dear Rlx:

I was not disappointed

Of course,I came results with the help of Raster design software and buffer in map 3d, but not with great accuracy.

I hope this technology will help me

[reza]

1:

create polygon topology

2:

create buffer around polygons area

3:

make hatch by pick in area



by Raster Design

4:

create Empty image on area

5:

merge vector to raster

6:

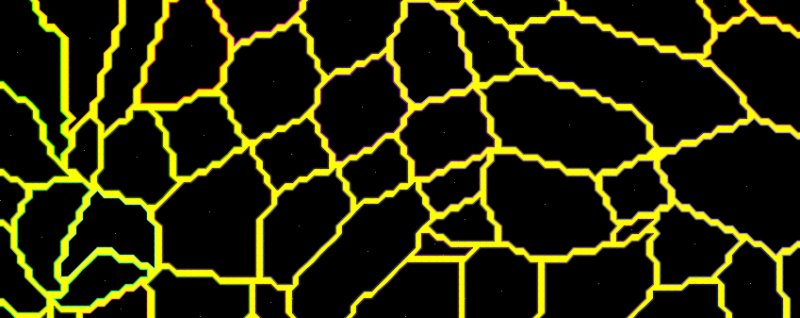

Skeleton new image

7:

convert raster to vector

[reza]

I admit that, this method is of Ice Age

:D:lol:

[rlx]

looks pretty comlicatedhttp://www.cadtutor.net/forum/images/smilies/tongue.png

[reza]

[reza]

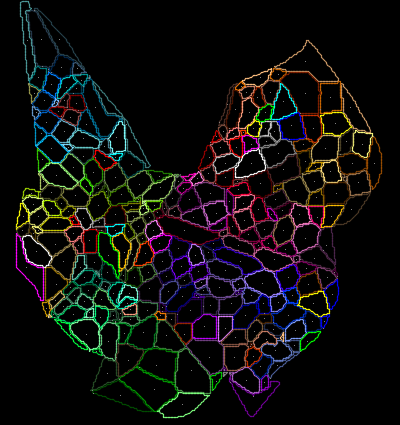

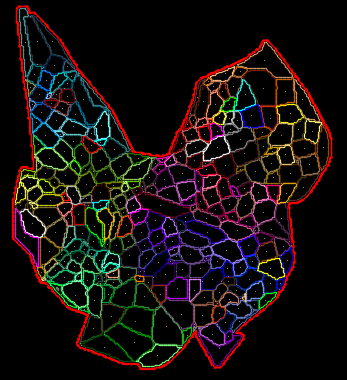

this file is result from arcmap

test2.dwg

[BIGAL]

I think you have answered your own question go back the source from Arcmap and make sure it includes centrelines when exporting to Autocad.

[reza]

Dear Bigal



I think I have not cleared up my purpose properly. I am already aware that Arcmap do the job for me; but I am seeking a solution to do the whole process in Autocad; a more simple method than the one I have described in thread #4. I need something solid like a Autolisp code or Map3D. Though I don't need exact center lines, a minimum of precision is required. One more thing, the intersection of center lines does not matter much.

[reza]

HELLLLLLLLO

No one is here ?
