Create bridge drawings by Revit Structural

sivapathasunderam

By sivapathasunderam
in Revit Structure

 Share

Recommended Posts

sivapathasunderam Community Regular

sivapathasunderam

Posted
Posted

Dear colleagues,



I have attached complete set of dwgs for a concrete bridge done by AutoCAD

Is these dwgs same way possible to do by here



thanks

Siva

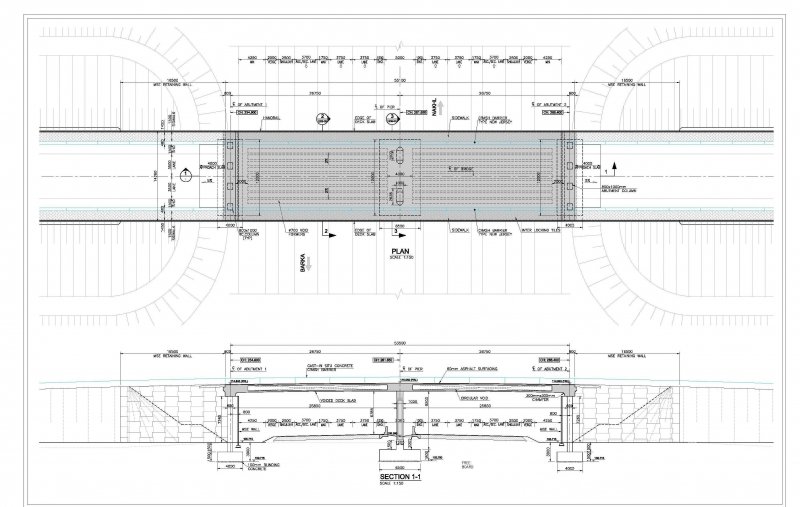

01_GENERAL ARRANGEMENT.jpg

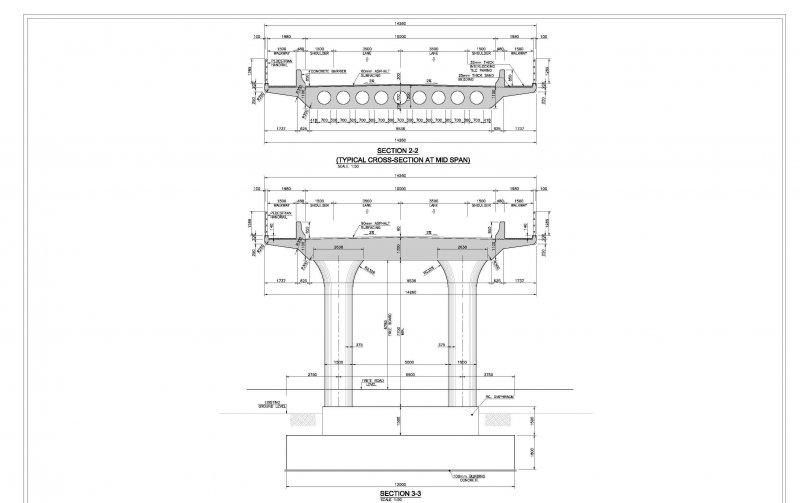

02_GENERAL ARRANGEMENT DETAILS.jpg

halam Mentor

halam

Posted
Posted

Nice drawing! Leave it to dwg is what I would recommend. 3d dwg in combination with civil3d and gis..

tzframpton Grand Master

tzframpton

Posted
Posted

Possible, yes. Worth it? Not really. I would take halam's advice.
