Where is my cube?

[halam]

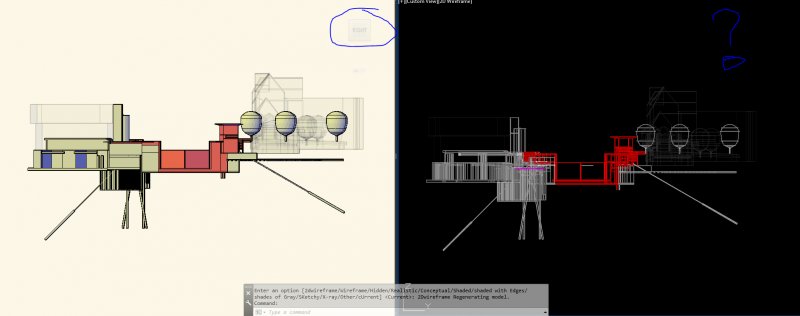

Some hate it, ..some use it. The viewcube. I do find it easy handy to use especially in combination with a named ucs. The problem now i have (only recently?) is that is only works in 3d displaystyle, conceptual. I want this to show in 2d as well, and i think i once had this going..



What cubedisplay setting do i miss here?



Thanks

Hans

[rkent]

Options, 3D Modeling tab, look along the left side for the selections you are needing.

[BIGAL]

Try also NAVVCUBE 0 or 1

[halam]

Very strange. It will not display in 2D wireframe.

But i seem to have more graphics problems.

Text is not visible with 3Dconfig - hardware accelaration turned ON.

maybe something with Direct X11?







So... i did a full reset of AutoCAD installations !





But navvcubedisplay =3 still does work

Strange..



Card name: NVIDIA Quadro K3100M
Driver version: 10.18.13.5456
Tuning Date: 25-7-2016
Virtual device: Dx11 (Hardware)
               The card and driver meets the recommended requirement.
Display Adapters:
Intel(R) HD Graphics 4600(Primary)
NVIDIA Quadro K3100M
RDPDD Chained DD
RDP Encoder Mirror Driver
RDP Reflector Display Driver
Certification:
Hardware Available     True
Hardware Recommended   True
Status                 3
Hardware ID            2
Hardware Feature Level 50
Software Feature Level 50
General Options:
Adaptive Degradation           True
Discard Backfaces              False
Dynamic Tessellation           True
Generate Vertex Normals        False
Handedness                     Right
Maximum LODs                   6
Redraw on Window Expose        True
Surface Tessellation Tolerance 92
Transparency                   MediumQuality
Additional System Information:
ComputerSystem
 Manufacturer        Hewlett-Packard
 Model               HP ZBook 17
 NumberOfProcessors  1
 TotalPhysicalMemory 16400838656
Processor
 MaxClockSpeed             2901
 Name                      Intel(R) Core(TM) i7-4600M CPU @ 2.90GHz
 NumberOfCores             2
 NumberOfLogicalProcessors 4
 Revision                  15363
OperatingSystem
 Name                    Microsoft Windows 7 Enterprise |C:\Windows|\Device\Harddisk0\Partition1
 OSLanguage              1043
 ServicePackMajorVersion 1
 ServicePackMinorVersion 0
 TotalSwapSpaceSize
 TotalVirtualMemorySize  32031028
 Version                 6.1.7601
DiskDrive
 Model  MQ01ACF050      SCSI Disk Device
 Name  [url="file://\\.\PHYSICALDRIVE0"]\\.\PHYSICALDRIVE0[/url]
 Size  500105249280
DesktopMonitor0
 MonitorManufacturer (Standaardbeeldschermtypen)
 MonitorType         Algemeen PnP-beeldscherm
 Name                Algemeen PnP-beeldscherm
 ScreenHeight        1080
 ScreenWidth         1920
DesktopMonitor1
 MonitorManufacturer (Standaardbeeldschermtypen)
 MonitorType         Algemeen PnP-beeldscherm
 Name                Algemeen PnP-beeldscherm
 ScreenHeight        1080
 ScreenWidth         1920
DisplayConfiguration
 DeviceName       NVIDIA Quadro K3100M
 DisplayFrequency 60
 DriverVersion    10.18.13.5456
 PelsHeight       768
 PelsWidth        1024
VideoController0
 AdapterDACType              Integrated RAMDAC
 AdapterRAM                  4293918720
 ConfigManagerErrorCode      0
 CurrentHorizontalResolution 1920
 CurrentVerticalResolution   1080
 DriverDate                  20151203000000.000000-000
 DriverVersion               10.18.13.5456
 InstalledDisplayDrivers     nvd3dumx.dll,nvwgf2umx.dll,nvwgf2umx.dll,nvd3dum,nvwgf2um,nvwgf2um
 Name                        NVIDIA Quadro K3100M
 Status                      OK
 TimeOfLastReset
 VideoArchitecture           5
 VideoModeDescription        1920 x 1080 x 4294967296 kleuren
VideoController1
 AdapterDACType              Internal
 AdapterRAM                  2684354560
 ConfigManagerErrorCode      0
 CurrentHorizontalResolution 1920
 CurrentVerticalResolution   1080
 DriverDate                  20131007000000.000000-000
 DriverVersion               9.18.10.3324
 InstalledDisplayDrivers     igdumdim64.dll,igd10iumd64.dll,igd10iumd64.dll,igdumdim32,igd10iumd32,igd10iumd32
 Name                        Intel(R) HD Graphics 4600
 Status                      OK
 TimeOfLastReset
 VideoArchitecture           5
 VideoModeDescription        1920 x 1080 x 4294967296 kleuren

Process Information:
Loaded ARX and CRX Modules
 acapp.arx
 acapp.crx
 acautoloader.crx
 acautoloader.arx
 acjscorestub.crx
 acgsconfig.arx
 acgsconfig.crx
 accloudconnect.crx
 acismui.arx
 acismui.crx
 aeccore.crx
 acETransmitui.arx
 aecloader.arx
 aeccsubentsel.arx
 acmaploader.arx
 AcMapCmdTarget.arx
 acadmap.arx
 AcMapAde.arx
 AcMapAnnotUi.arx
 AcOcSchemaUtil.arx
 Acpi.arx
 acmapird.arx
 ase.arx
 acmapobjclassui.arx
 AcMapObjClassPwApi.arx
 acobjclassimp.arx
 acmapworkspace.arx
 AcMapDisplayManagement.arx
 acpublish.crx
 AcMapObjClassApi.arx
 AcMapPropMan.arx
 AcMapFeatureSourceManager.arx
 AcGiMapToHeidi.arx
 AcMapRastUtils71.arx
 AcMapMapBook.arx
 AcSmPublishUtils.arx
 AcSmDwgMine.arx
 AcFdEval.crx
 accalcengine.crx
 acpublish.arx
 acmaprightclickmenu.arx
 acmapfeatureentitytooltips.arx
 acmapdmtask.arx
 AcTcTools.arx
 AcTp.arx
 AcMapFeatureEntityUI.arx
 acopm.arx
 acmapmapbookui.arx
 acmapstatusbar.arx
 acmapdwfapi.arx
 acmaprastex71.arx
 acpointcloud.crx
 acdbpointcloud.arx
 acauthenviron.arx
 acparameter.crx
 acvmtools.crx
 accmmgr.crx
 vl.crx
 acdwgrecovery.arx
 acopmext.arx
 AcFdUi.arx
 AcPEXCtl.arx
 aclaunchnfw.arx
 appload.arx
 doslib20x64.arx
 acsign.arx
 acetutil.arx
 vl.arx
 acsceneui.arx
 AcCamera.arx
 acsceneui.crx
 acvmtools.arx
 acdim.arx
 acdim.crx
 acseek.arx
 acxopen.arx
 acxopen.crx
 acparameter.arx
 acblock.crx
 geom3d.crx
 acblock.arx
 acrefed.arx
 rectang.crx
 acmatch.arx
 acarray.crx
 acarray.arx
 acdgnlsdraw.crx
 AcGeoLocationUI.arx
 acconnectwebservices.arx
 acgeolocationoe.crx
 acviewmgr.arx
 acmted.crx
 AcCmMgr.arx
 acxrefesw.arx
 AcXrefService.arx
 acdgnui.arx
 acdgnui.crx
 acdorder.crx
 acoscale.arx
 acfield.arx
 acplotgui.arx
 aceplotx.crx
 acpltstamp.crx
