Hello anyone;

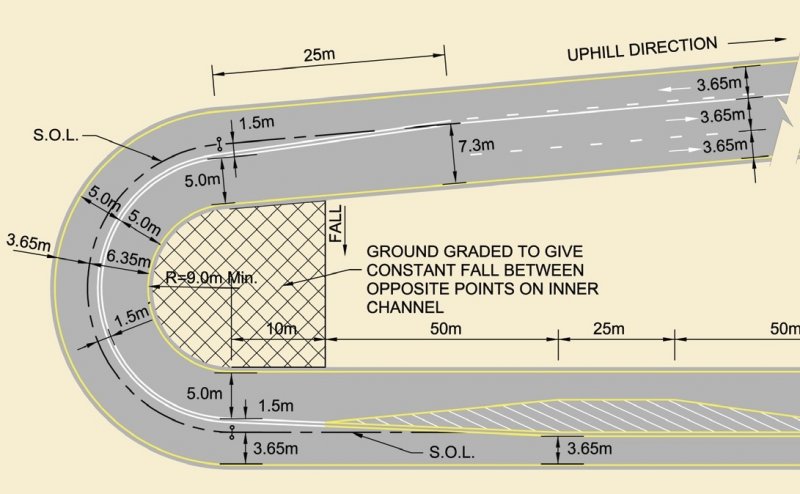

At the curve (etc. Hairpin bend) lane width will increase as shown example

Is that possible to do by civil3d Alignment & Alignment offsets without doing by Autocad

Widening of Lane wide by civil3d.jpg



Siva

MillerMG Proficient

MillerMG

Posted
Posted

If I'm not mistaken you can just create a superelevation assembly then use an alignment to pull to your offset
