Lrt / new road - cut and fill volumes

[jessiray8]

Good day sons of tron, I am needing assistance in the matrix to help our team win the LRT bid. Our engineering did not provide prop road and track surfaces so i have to develop something quick based on a variety of cross sections. I am an experienced CAD operator but i am still learning C3D.



I have:

existing contours

prop alignment with 3d polyline

prop pdf cross sections

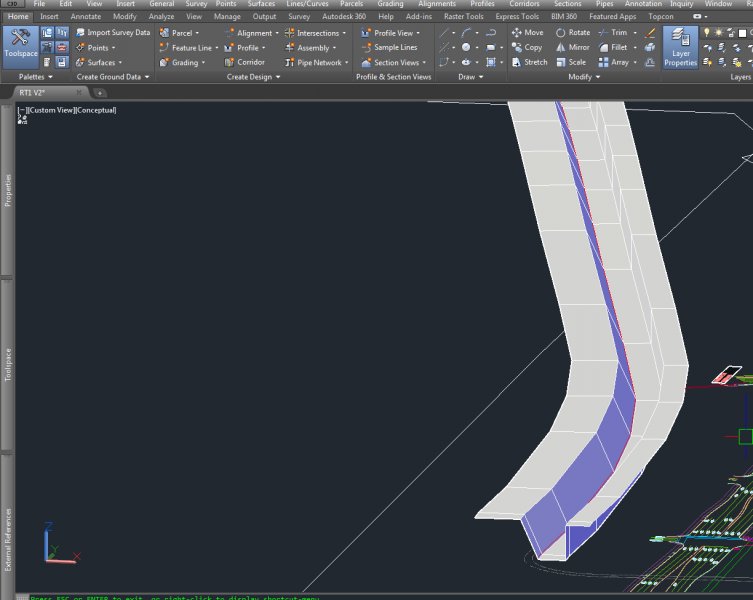

I was thinking the fastest way is to somehow use a sweep surface in C3D from quick poly-line cross sections and convert to a surface to compare from but i am not able to add the sweep surface to a surface, I thought that create sub assembly from a poly-line would work this way, but I could not get it too work.



Sons of tron, can you assist your brother-en.

http://img4.wikia.nocookie.net/__cb20131112021223/disney/images/0/09/2010_tron_evolution-wide-1-.jpg

Edited August 29, 2015 by jessiray8

[jessiray8]

hello, what is the best way to do a cut fill volume for LRT and Prop road.



I have:

Prop Alignment with 3d polyline

Existing ground

PDF cross sections



I tried:

Sub assembly from 2d polyline

Convert sweep surface into a surface

Edited August 29, 2015 by jessiray8
