What do I really want is to combined Pline and Fillet command

after calling the lsp command it will first ask for the radius of the fillet.

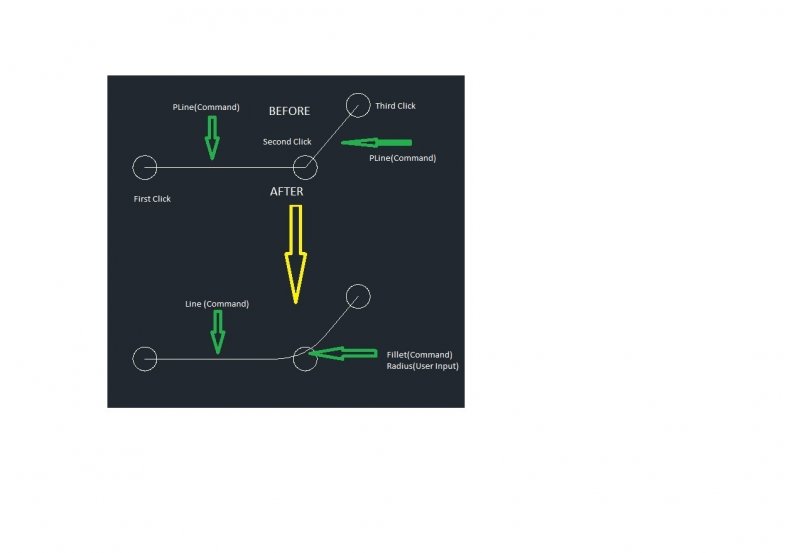

pls see attachment for drawing Intepretation

Edited July 24, 2015 by Cheezee

[rlx]

I think nobody really understands what it is your asking for. I used your routine and it draws 'someting' but it doesn't mean sh*t to me , forgive my language ;-) What is it what you are drawing with this routine? how should it look like in your drawing? Is it suppost to be a kind of lineype??? Maybe you can shed some more light on what it is exacly what your trying to achive here?



gr. Rlx

[BIGAL]

Two choices, you can draw a pline and add radius after, the code is posted here need to search or you can every 3 points draw the pline using a bulge and add straight away the arc. Check http://www.Lee-mac.com he may have something already done

[Cheezee]

It was not Polyline sorry again

got confused about the shortcut key PL

I thought it is polyline it was PLine

[BIGAL]

Just draw a pline then Fillet, R, radius, P, pick pline all done. A quick google revealed there are so many options on the standard commands.

[Cheezee]

Is it possible those two command in single command?

I mean you will input radius once then the rest will be just clicking no more space bar...

At middle point of every intersection/corner of pline will automatically fillet....

[rlx]

(defun c:dfp ();draw filleted polyline
 (command ".Pline")
 (while (= 1 (logand (getvar "cmdactive") 1))(command pause))
 (setvar "filletrad" (getdist "\nEnter fillet radius"))
 (command ".fillet" "p" (entlast))
)



gr. R.

[Cheezee]

Thank your sir rlx,

What I really intended to do is to minimize the use of space bar and lsp will only ask the radius once and it will be constant throughout the command then the rest is more on clicking...





with my eagerness to find a way to get my hand in auto fillet I found this site https://screencast.autodesk.com/Main/Details/0c255475-447e-466e-985e-b6b783841092

but the sad part is it requires .net and would need some stripping etc., I don't know if LSP can do it

[rlx]

oops my mistake , i placed the radius part in the while loop when it should be before or after



(defun c:dfp ();draw filleted polyline
 (setvar "filletrad" (getdist "\nEnter fillet radius"))
 (command ".Pline")
 (while (= 1 (logand (getvar "cmdactive") 1))(command pause))
 (command ".fillet" "p" (entlast))
)



gr.R.

[Cheezee]

Thank you sir rlx, uhmmpp if it is ok can we reduce using space bar, after entering the radius of fillet the next thing to do is on clicking as in purely click

Edited July 25, 2015 by Cheezee

[rlx]

no problem, another way , little bit old-school



(defun c:dfp ( / p1 p2 p3 poly el)
 (setvar "filletrad" (getdist "\nEnter fillet radius"))
 (setq p1 (getpoint "\nStartpoint polyline ")
   p2 (getpoint p1 "\nNext point"))
 (command ".pline" p1 p2 "")(setq poly (entlast))
 (while (setq p3 (getpoint p2 "\nNext point"))
   (command ".pline" p2 p3 "")(setq el (entlast))
   (command ".pedit" (eval el) "j" (eval poly) "" "")
   (command "fillet" "p" (eval el))
   (setq poly el p2 p3))
)



good luck



gr.R.

[Cheezee]

Thank you thank you, it is same with the above link

it works perfectly.

[BIGAL]

rlx a better way to do pline it was a suggestion by other guys here.



(setvar "filletrad" (getdist "\nEnter fillet radius"))
; create pline by picking points press enter when finished
(command "_pline")
(while (= (getvar "cmdactive") 1 ) (command pause)
)
(command "fillet" "p" (entlast))

Edited July 26, 2015 by BIGAL

[rlx]

I agree BigAl but I just wanted to show a way that you instandly see the filleted corner as shown in the link to the .net example. The choise is his.



gr.R

[BIGAL]

No worries
