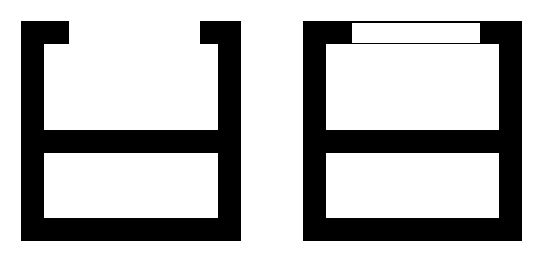

Sengna Posted June 23, 2015 Share Posted June 23, 2015 Hi, this is an example to explain my issue, the wipeout boarder covered northside of the wall, i want to hide the object and don't want to show on the print, is there a way that i can hide the wipeout border and object but still show the wall? if i put wipeout on Defpoints then the object become visible. Are there alternate tools to use? Quote Link to comment Share on other sites More sharing options...
profcad Posted June 24, 2015 Share Posted June 24, 2015 Did you hide the frames? Command: WIPEOUT Specify first point or [Frames/Polyline] : F Enter mode [ON/OFF/Display but not plot] : OFF Quote Link to comment Share on other sites More sharing options...
Sengna Posted June 24, 2015 Author Share Posted June 24, 2015 Did you hide the frames? Command: WIPEOUT Specify first point or [Frames/Polyline] : F Enter mode [ON/OFF/Display but not plot] : OFF Wow, i learn something new today Profcad, it hides the wipeout border. Just wondering if i can show the wall on the northside eventhough i had the wipeout laid on the top? Thank you Quote Link to comment Share on other sites More sharing options...
profcad Posted June 24, 2015 Share Posted June 24, 2015 I'm not sure why you want to show the wall, the purpose of the wipeout is to hide what is underneath it. Are you wanting to hide the solid fill and show the lines? Quote Link to comment Share on other sites More sharing options...
neophoible Posted June 26, 2015 Share Posted June 26, 2015 Wow, i learn something new today Profcad, it hides the wipeout border. Just wondering if i can show the wall on the northside eventhough i had the wipeout laid on the top? Thank youNot sure what you are trying to achieve here, but Draw Order (usually available via right click) can change which objects are blocked by a WIPEOUT. Try experimenting with its options. Quote Link to comment Share on other sites More sharing options...
Sengna Posted July 2, 2015 Author Share Posted July 2, 2015 I'm not sure why you want to show the wall, the purpose of the wipeout is to hide what is underneath it. Are you wanting to hide the solid fill and show the lines? Yes, that would works, Thank you Quote Link to comment Share on other sites More sharing options...
Sengna Posted July 2, 2015 Author Share Posted July 2, 2015 Not sure what you are trying to achieve here, but Draw Order (usually available via right click) can change which objects are blocked by a WIPEOUT. Try experimenting with its options. neophoible, i will have to give that a try, i never use it, i willl look up tutorial how to use this command on youtube. thanks sorry guys been very busy. Quote Link to comment Share on other sites More sharing options...
Alexandru Posted July 3, 2015 Share Posted July 3, 2015 Use command frame to hide border wipeout http://autocad-expert.com/annotate/markup/wipeout Quote Link to comment Share on other sites More sharing options...
