Need help constructing 1st Angle Projection of image


Recommended Posts

Posted

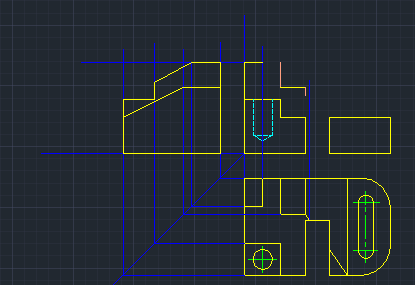

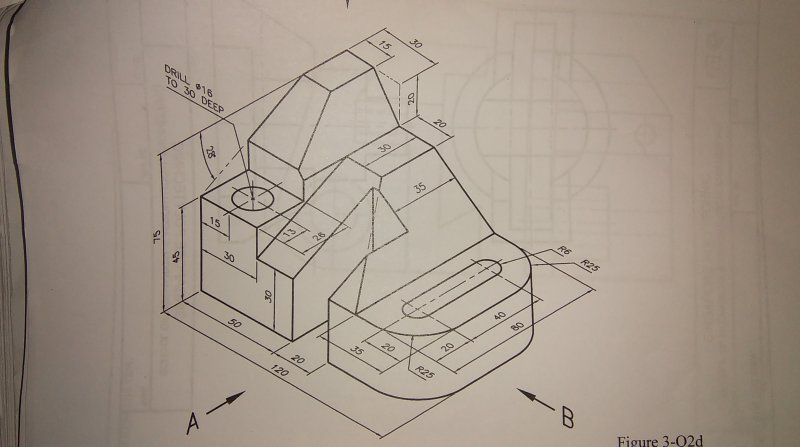

Hi! I am stuck with this question for almost 3 hrs. May I ask if there are any kind soul who can provide me with the 1st angle projection of the attached image? I have attached my working and as you can see, Im stuck...



Take A as Front View.

B as Right End View.

And Plan View from A



Thank you very much.



Much appreciated. :D



Posted

THANK YOU rkent!! You're amazing! :notworthy:
