Draw a reference point

[AIberto]

Merry Christmas and a happy new year.

Wishing you and yours a merry Christmas this holiday season.

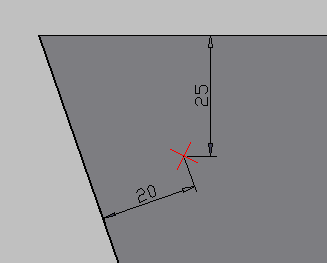

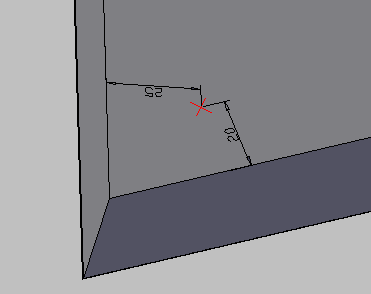

I want drawing a point on 3d solid.

step.

1. pick a face of 3d solid (point on this face)

2. pick a reference edge and enter the distance value.

3. pick another reference edge and enter the distance value.

4. draw a point （PDMODE=3 PDSIZE=3.0000）

[AIberto]

maybe can use "copy edges" ,After the drawing point complete, delete this edge ?

[hmsilva]

maybe can use "copy edges" ,After the drawing point complete, delete this edge ?

Hi AIberto,



using your idea, but untested (don't have AutoCAD at the moment) and just a starting point

(vl-load-com)
(defun c:demo (/ mk_pt base d1 d2 ent_1 ent_1_lst ent_2 ent_2_lst l_ent p1a p1b p2a p2b pt1 pt2)

(defun mk_pt (ent_1 ent_2 d1 d2 base pt1 pt2 / pt)
 (command "_.ucs" "_NONE" (trans base 0 1) "_NONE" (trans pt1 0 1) "_NONE" (trans pt2 0 1))
 (command "_.offset" d1 ent_1 (trans pt2 0 1) "")
 (entdel ent_1)
 (setq ent_1 (entlast))
 (command "_.offset" d2 ent_2 (trans pt1 0 1) "")
 (entdel ent_2)
 (setq ent_2 (entlast))
 (if (setq pt (vlax-invoke
                (vlax-ename->vla-object ent_1)
                'IntersectWith
                (vlax-ename->vla-object ent_2)
                acExtendBoth
              )
     )
   (command "_.point" "_NONE" (trans pt 0 1))
   (prompt "\nThere is no point at provided data...")
 )
 (entdel ent_1)
 (entdel ent_2)
 (command "_.ucs" "_P")
)

 (setq l_ent (entlast))
 (prompt "\nSelect first edge: \n")
 (command "_.solidedit" "_edge" "_copy" "\\" "" "0,0,0" "0,0,0" "_X" "_X")
 (setq ent_1 (entlast))
 (if (and (not (eq l_ent ent_1))
          (setq d1 (getdist "\nEnter offset distance: "))
     )
   (progn
     (prompt "\nSelect second edge: \n")
     (command "_.solidedit" "_edge" "_copy" "\\" "" "0,0,0" "0,0,0" "_X" "_X")
     (setq ent_2 (entlast))
     (if (and (not (eq ent_2 ent_1))
              (setq d2 (getdist "\nEnter offset distance: "))
         )
       (progn
         (setq ent_1_lst (entget ent_1)
               p1a       (trans (cdr (assoc 10 ent_1_lst)) 1 0)
               p1b       (trans (cdr (assoc 11 ent_1_lst)) 1 0)
               ent_2_lst (entget ent_2)
               p2a       (trans (cdr (assoc 10 ent_2_lst)) 1 0)
               p2b       (trans (cdr (assoc 11 ent_2_lst)) 1 0)
         )
         (cond ((equal p1a p2a 1e-6)
                (setq base p1a
                      pt1  p1b
                      pt2  p2b
                )
                (mk_pt ent_1 ent_2 d1 d2 base pt1 pt2)
               )
               ((equal p1a p2b 1e-6)
                (setq base p1a
                      pt1  p1b
                      pt2  p2a
                )
                (mk_pt ent_1 ent_2 d1 d2 base pt1 pt2)
               )
               ((equal p1b p2a 1e-6)
                (setq base p1b
                      pt1  p1a
                      pt2  p2b
                )
                (mk_pt ent_1 ent_2 d1 d2 base pt1 pt2)
               )
               ((equal p1b p2b 1e-6)
                (setq base p1b
                      pt1  p1a
                      pt2  p2a
                )
                (mk_pt ent_1 ent_2 d1 d2 base pt1 pt2)
               )
               (T
                (entdel ent_1)
                (entdel ent_2)
                (prompt "\nSelected edges don't have a common point...")
               )
         )
       )
     )
   )
 )
 (princ)
)

I hope this helps

Henrique

Edited December 26, 2014 by hmsilva
Fix code

[AIberto]

Hi AIberto,



using your idea, but untested (don't have AutoCAD at the moment) and just a starting point



I hope this helps

Henrique



Hi henrique .



Thanks so much! nice routine !

There is a small problem.

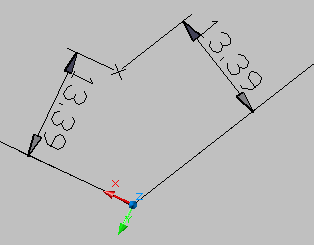

I enter the distance value is "15" , But the actual value is wrong.

[hmsilva]

Hi AIberto,



the code in post #3 should work as expected, code was revised, but not tested...



Henrique

[AIberto]

Hi AIberto,



the code in post #3 should work as expected, code was revised, but not tested...



Henrique



Thanks Henrique , now, the distance value is right.



"There is no point at provided data..." How about this mean ?

[hmsilva]

Thanks Henrique , now, the distance value is right.

"There is no point at provided data..." How about this mean ?

You're welcome, AIberto.



The "There is no point at provided data..." it's a message to display if user select parallels edges, in this case the intersection will be impossible...



Henrique

[AIberto]

You're welcome, AIberto.



The "There is no point at provided data..." it's a message to display if user select parallels edges, in this case the intersection will be impossible...



Henrique



if select parallels edges will be display "Selected edges don't have a common point.." , not display "There is no point at provided data..."

[hmsilva]

if select parallels edges will be display "Selected edges don't have a common point.." , not display "There is no point at provided data..."



You are correct, that msg is the return from the test 'cond' if there is no common point from the two edges.

The another msg is from the 'mk_pt' function to throw if there is no return from the 'IntersectWith' function.



Henrique

[AIberto]

You are correct, that msg is the return from the test 'cond' if there is no common point from the two edges.

The another msg is from the 'mk_pt' function to throw if there is no return from the 'IntersectWith' function.



Henrique



Thanks ! Henrique. Good explanation:)

[hmsilva]

You're welcome, AIberto

Glad I could help





Henrique
