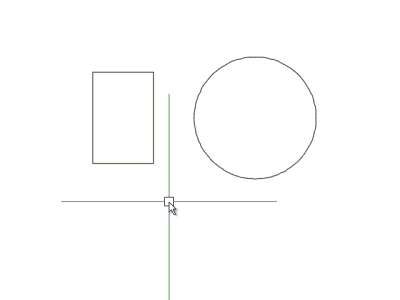

Bogus Posted October 28, 2014 Posted October 28, 2014 I am looking for circle command such as Tan, Tan, Radius but it is not 100% what I was looking for. I am looking for Point of corner, Tan, Radius. See the picture here for example. Can you help me with this? Quote
ReMark Posted October 28, 2014 Posted October 28, 2014 Have you looked at the options available to you under the ARC command? Maybe one of them can be used instead? Quote
eldon Posted October 28, 2014 Posted October 28, 2014 Draw a temporary circle with the required radius centered at Pt 1, then offset the given circle at Pt 2 by the required radius. Where these two (line and circle) meet will be the centre of the required circle. Quote
nestly Posted October 28, 2014 Posted October 28, 2014 No command to do that as far as I know. Draw a circle with the desired radius from point 1, offset the existing circle by the desired radius. The intersection of these two new circles is the central point for your new arc. Quote
JD Mather Posted October 28, 2014 Posted October 28, 2014 If you use Parametric geometry constraints - use Coincident and Tangent. Otherwise - construction geometry as previously suggested. Quote
Bogus Posted October 28, 2014 Author Posted October 28, 2014 Hello Eldon and Nestly, please can you show me example picture you draw? Quote
Bogus Posted October 28, 2014 Author Posted October 28, 2014 No command to do that as far as I know. Draw a circle with the desired radius from point 1, offset the existing circle by the desired radius. The intersection of these two new circles is the central point for your new arc. I am not sure with it, can you show me example picture you draw? Please. I will appreciate it. Quote

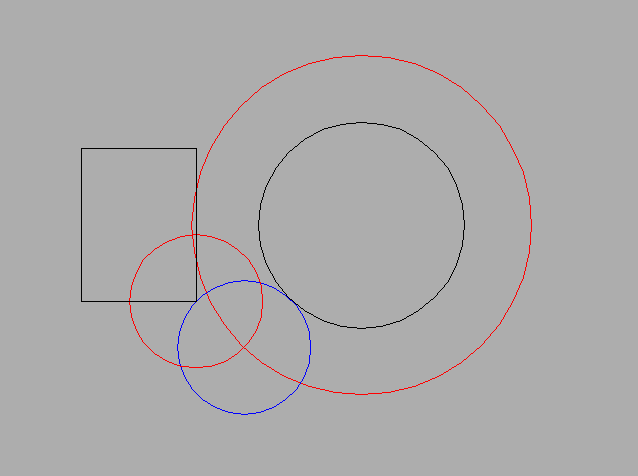

eldon Posted October 28, 2014 Posted October 28, 2014 Obviously I do not have your dimensions, but I have sketched a likeness. My black lines are what there is to start. My red lines are the offset from the circle and the circle from the end of the rectangle. My blue line is the required circle, which must now be trimmed to give you the arc. Sometimes it is quicker to draw temporary lines and circles, and tidy up after by erasing and trimming. Arcs have a mind of their own, so draw a circle and trim. Quote
nestly Posted October 28, 2014 Posted October 28, 2014 Pretty much the same as eldon... just animated Quote
BIGAL Posted October 29, 2014 Posted October 29, 2014 Maybe a lisp using intersectwith to work out centre pt and pt on exsiting circle this way pick pt, pick circle, rad then done. Quote
Bogus Posted October 29, 2014 Author Posted October 29, 2014 Thank you for your helping with explanation of sample picture. I got it now. It is very simple, wow. Thanks again ;-) Quote
