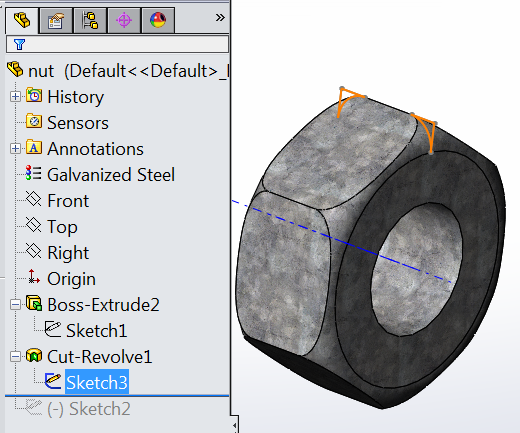

Akitirija Posted September 26, 2014 Posted September 26, 2014 Hi. I have been given a drawing (attached) where it is obligatory to use the revolved cut function to "smoothen" the edges of the nut. However, I cannot for the life of me figure out how to do it. Attached is my part with the contours I thought were correct. As usual, the zero-thickness geometry is one of the problems I encounter. Even when I do not encounter this problem, the nut looks nothing like the drawing. nut.SLDPRT Quote
JD Mather Posted September 27, 2014 Posted September 27, 2014 You put your Sketch2 on the wrong plane - it should be on the Front plane at the corners. Quote
Akitirija Posted October 2, 2014 Author Posted October 2, 2014 Thank you again, Mather! I will try it right away! Quote
Akitirija Posted October 2, 2014 Author Posted October 2, 2014 Ahhh, I finally manged it! Thank you so much! Quote
