polyline curves set to zero radius

rrulep

By rrulep
in AutoLISP, Visual LISP & DCL

 Share

Recommended Posts

rrulep Contributor

rrulep

Posted
Posted

Hi everyone.



Is there any lisp that could change the radius of polyline to zero.







MSasu Grand Master

MSasu

Posted
Posted

This is a task that can be solved without a custom tool; please check the built-in command PEDIT with its Decurve option.

rrulep Contributor

rrulep

Posted
  • Author
Posted
This is a task that can be solved without a custom tool; please check the built-in command PEDIT with its Decurve option.





Hi



The decurve option flattens the curve only.

If possible, when I select the polyline, it should ask the user to specify the radius of all the curves in a polyline.

rrulep Contributor

rrulep

Posted
  • Author
Posted
Hi



The decurve option flattens the curve only.

If possible, when I select the polyline, it should ask the user to specify the radius of all the curves in a polyline.

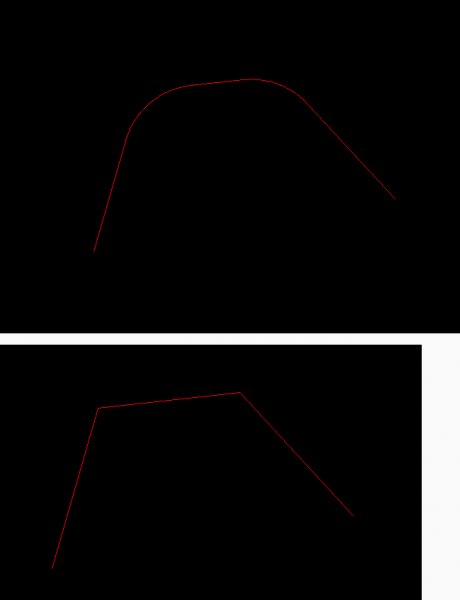

Here's what I've got using the pedit with its decurve option.

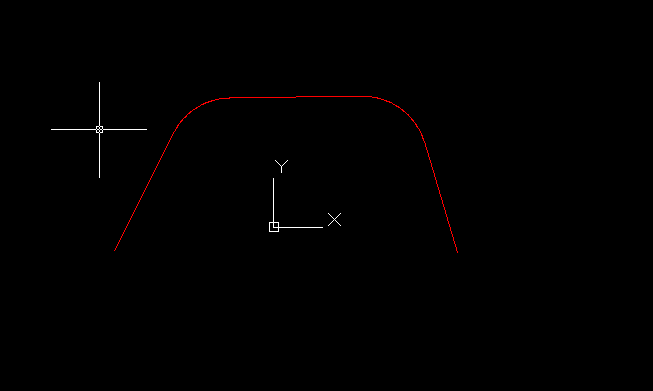

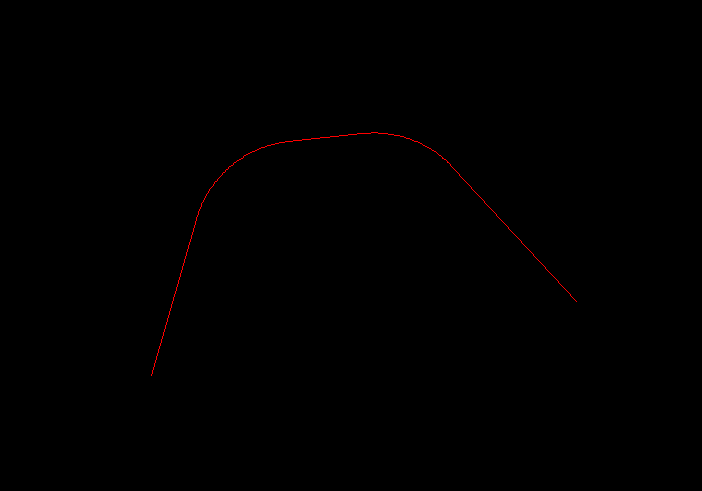

before the pedit command (decurve option)

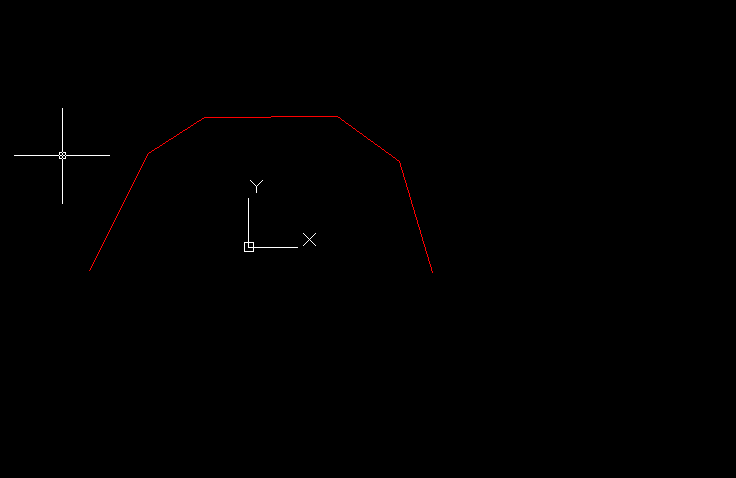

after the pedit command (decurve option)


MSasu Grand Master

MSasu

Posted
Posted

Alternatively try to use FILLET with Polyline option and Radius set to 0.

rrulep Contributor

rrulep

Posted
  • Author
Posted
Alternatively try to use FILLET with Polyline option and Radius set to 0.



That's what I'm doing right now but it's take time if I'm working with very long polyline with hundreds of curve.

Tharwat Grand Master

Tharwat

Posted
Posted

Maybe this .



(defun c:Test (/ ss )
(if (setq ss (ssget "_:L" '((0 . "LWPOLYLINE"))))
 ((lambda (i / sn)
    (while (setq sn (ssname ss (setq i (1+ i))))
      (entmod (mapcar '(lambda (x) (if (eq (car x) 42) '(42 . 0.) x)) (entget sn)))
      (entupd sn)))
   -1)
 )
(princ)
)

rrulep Contributor

rrulep

Posted
  • Author
Posted
Maybe this .



(defun c:Test (/ ss )
(if (setq ss (ssget "_:L" '((0 . "LWPOLYLINE"))))
 ((lambda (i / sn)
    (while (setq sn (ssname ss (setq i (1+ i))))
      (entmod (mapcar '(lambda (x) (if (eq (car x) 42) '(42 . 0.) x)) (entget sn)))
      (entupd sn)))
   -1)
 )
(princ)
)



Hi tharwat..



The result is the same with Mircea's suggestion using the pedit with its decurve option. Its just flattened the curve in a polyline.

rrulep Contributor

rrulep

Posted
  • Author
Posted
Hi tharwat..



The result is the same with Mircea's suggestion using the pedit with its decurve option. Its just flattened the curve in a polyline.



Hi tharwat



You might be confused with what I want to achieve.

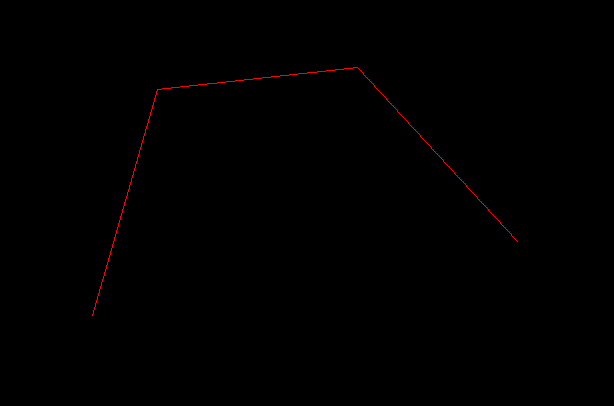

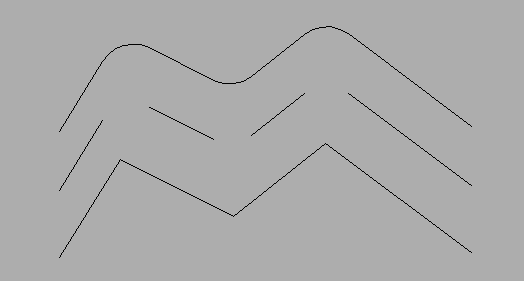

The lisp should do something like this on the image below.




suriwaits Contributor

suriwaits

Posted
Posted (edited)

http://www.cadtutor.net/forum/archive/index.php/t-49834.html

(defun c:FP (/ ss)
;; Alan J. Thompson, 08.31.10
(initget 4)
(setvar 'filletrad
(cond
((getdist (strcat "\nSpecify fillet radius <" (rtos (getvar 'filletrad)) ">: ")))
((getvar 'filletrad))
)
)
(if (setq ss (ssget "_:L" '((0 . "LWPOLYLINE"))))
((lambda (i / e)
(while (setq e (ssname ss (setq i (1+ i))))
(command "_.fillet" "_polyline" e)
)
)
-1
)
)
(princ)
)

Edited by suriwaits
eldon Grand Master

eldon

Posted
Posted

Perhaps you could do it manually, but with another technique.



First of all explode the polyline. Then erase all arc segments. Then using Pedit and a suitable fuzz distance, rejoin all straight line sections to make a polyline.


Stefan BMR Proficient

Stefan BMR

Posted
Posted
(defun c:test (/ ss r i)
 (if
   (setq ss (ssget ":L" '((0 . "LWPOLYLINE"))))
    (progn
      (if
        (setq r (getdist (strcat "\nFillet radius <" (rtos (getvar 'filletrad)) ">: ")))
         (setvar 'filletrad (abs r))
      )
      (repeat (setq i (sslength ss))
        (command "fillet" "p" (ssname ss (setq i (1- i))))
      )
    )
 )
 (princ)
)

rrulep Contributor

rrulep

Posted
  • Author
Posted

Hi



here's what I've written but I want to trim the red line that overlapped on the white line showing only the redlines that extended outside the curves.



(defun c:pol ()
 (if (not (tblsearch "LAYER" "C-ROAD_CURV_TAN"))
   (entmake '((0 . "LAYER")
        (100 . "AcDbSymbolTableRecord")
        (100 . "AcDbLayerTableRecord")
        (2 . "C-ROAD_CURV_TAN")
        (70 . 0)
        (62 . 10)
        (370 . -3)
        (6 . "Continuous")
       )
   )
 )


(setq poly (ssget '((0 . "LWPOLYLINE"))))
(command "copy" poly  "" "0,0" "0,0" "")
(setq poly2 (entlast))
(command "CHANGE" poly2 "" "P" "la" "C-ROAD_CURV_TAN" "")

(setvar "FILLETRAD" 0.0)

(command "fillet" "p" poly2 "")


(princ)
)

Lee Mac Grand Master

Lee Mac

Posted
Posted

Here's another method:

([color=BLUE]defun[/color] c:decurve ( [color=BLUE]/[/color] vertexdata b c e i l p q r s x )

   ([color=BLUE]defun[/color] vertexdata ( e )
       ([color=BLUE]if[/color] ([color=BLUE]setq[/color] e ([color=BLUE]member[/color] ([color=BLUE]assoc[/color] 10 e) e))
           ([color=BLUE]cons[/color] ([color=BLUE]list[/color] ([color=BLUE]cdr[/color] ([color=BLUE]assoc[/color] 10 e)) ([color=BLUE]cdr[/color] ([color=BLUE]assoc[/color] 42 e))) (vertexdata ([color=BLUE]cdr[/color] e)))
       )
   )
   ([color=BLUE]if[/color] ([color=BLUE]setq[/color] s ([color=BLUE]ssget[/color] [color=MAROON]"_:L"[/color] '((0 . [color=MAROON]"LWPOLYLINE"[/color]) (-4 . [color=MAROON]"<>"[/color]) (42 . 0.0))))
       ([color=BLUE]repeat[/color] ([color=BLUE]setq[/color] i ([color=BLUE]sslength[/color] s))
           ([color=BLUE]setq[/color] e ([color=BLUE]entget[/color] ([color=BLUE]ssname[/color] s ([color=BLUE]setq[/color] i ([color=BLUE]1-[/color] i))))
                 l (vertexdata e)
                 r [color=BLUE]nil[/color]
           )
           ([color=BLUE]if[/color] ([color=BLUE]setq[/color] c ([color=BLUE]=[/color] 1 ([color=BLUE]logand[/color] 1 ([color=BLUE]cdr[/color] ([color=BLUE]assoc[/color] 70 e)))))
               ([color=BLUE]setq[/color] l ([color=BLUE]append[/color] l ([color=BLUE]list[/color] ([color=BLUE]car[/color] l))))
           )
           ([color=BLUE]while[/color] ([color=BLUE]cadr[/color] l)
               ([color=BLUE]if[/color]
                   ([color=BLUE]and[/color] ([color=BLUE]/=[/color] 0.0 ([color=BLUE]setq[/color] b ([color=BLUE]cadar[/color] l)))
                       ([color=BLUE]setq[/color] p
                           ([color=BLUE]polar[/color] ([color=BLUE]caar[/color] l)
                               ([color=BLUE]+[/color] ([color=BLUE]angle[/color] ([color=BLUE]caar[/color] l) ([color=BLUE]caadr[/color] l)) ([color=BLUE]-[/color] ([color=BLUE]/[/color] [color=BLUE]pi[/color] 2) ([color=BLUE]*[/color] 2 ([color=BLUE]atan[/color] b))))
                               ([color=BLUE]/[/color] ([color=BLUE]*[/color] ([color=BLUE]distance[/color] ([color=BLUE]caar[/color] l) ([color=BLUE]caadr[/color] l)) ([color=BLUE]1+[/color] ([color=BLUE]*[/color] b b))) 4 b)
                           )
                       )
                       ([color=BLUE]setq[/color] q
                           ([color=BLUE]inters[/color]
                               ([color=BLUE]caar[/color]  l) ([color=BLUE]polar[/color] ([color=BLUE]caar[/color]  l) ([color=BLUE]+[/color] ([color=BLUE]angle[/color] p ([color=BLUE]caar[/color]  l)) ([color=BLUE]/[/color] [color=BLUE]pi[/color] 2.0)) 1.0)
                               ([color=BLUE]caadr[/color] l) ([color=BLUE]polar[/color] ([color=BLUE]caadr[/color] l) ([color=BLUE]+[/color] ([color=BLUE]angle[/color] p ([color=BLUE]caadr[/color] l)) ([color=BLUE]/[/color] [color=BLUE]pi[/color] 2.0)) 1.0)
                               [color=BLUE]nil[/color]
                           )
                       )
                   )
                   ([color=BLUE]setq[/color] r ([color=BLUE]vl-list*[/color] q ([color=BLUE]caar[/color] l) r))
                   ([color=BLUE]setq[/color] r ([color=BLUE]cons[/color] ([color=BLUE]caar[/color] l) r))
               )
               ([color=BLUE]setq[/color] l ([color=BLUE]cdr[/color] l))
           )
           ([color=BLUE]if[/color] ([color=BLUE]not[/color] c) ([color=BLUE]setq[/color] r ([color=BLUE]cons[/color] ([color=BLUE]caar[/color] l) r)))
           ([color=BLUE]entmake[/color]
               ([color=BLUE]append[/color]
                   ([color=BLUE]subst[/color]
                       ([color=BLUE]cons[/color]  90 ([color=BLUE]length[/color] r))
                       ([color=BLUE]assoc[/color] 90 e)
                       ([color=BLUE]reverse[/color] ([color=BLUE]member[/color] ([color=BLUE]assoc[/color] 39 e) ([color=BLUE]reverse[/color] e)))
                   )
                   ([color=BLUE]mapcar[/color] '([color=BLUE]lambda[/color] ( x ) ([color=BLUE]cons[/color] 10 x)) ([color=BLUE]reverse[/color] r))
                   ([color=BLUE]list[/color] ([color=BLUE]assoc[/color] 210 e))
               )
           )
       )
   )
   ([color=BLUE]princ[/color])
)
([color=BLUE]princ[/color])

GP_ Rising Star

GP_

Posted
Posted



(if (setq s (ssget "_:L" '((0 . "LWPOLYLINE") (-4 . "") (42 . 0.0))))







.....smoke_10.gif .....

rrulep Contributor

rrulep

Posted
  • Author
Posted
Here's another method:

([color=BLUE]defun[/color] c:decurve ( [color=BLUE]/[/color] vertexdata b c e i l p q r s x )

   ([color=BLUE]defun[/color] vertexdata ( e )
       ([color=BLUE]if[/color] ([color=BLUE]setq[/color] e ([color=BLUE]member[/color] ([color=BLUE]assoc[/color] 10 e) e))
           ([color=BLUE]cons[/color] ([color=BLUE]list[/color] ([color=BLUE]cdr[/color] ([color=BLUE]assoc[/color] 10 e)) ([color=BLUE]cdr[/color] ([color=BLUE]assoc[/color] 42 e))) (vertexdata ([color=BLUE]cdr[/color] e)))
       )
   )
   ([color=BLUE]if[/color] ([color=BLUE]setq[/color] s ([color=BLUE]ssget[/color] [color=MAROON]"_:L"[/color] '((0 . [color=MAROON]"LWPOLYLINE"[/color]) (-4 . [color=MAROON]"<>"[/color]) (42 . 0.0))))
       ([color=BLUE]repeat[/color] ([color=BLUE]setq[/color] i ([color=BLUE]sslength[/color] s))
           ([color=BLUE]setq[/color] e ([color=BLUE]entget[/color] ([color=BLUE]ssname[/color] s ([color=BLUE]setq[/color] i ([color=BLUE]1-[/color] i))))
                 l (vertexdata e)
                 r [color=BLUE]nil[/color]
           )
           ([color=BLUE]if[/color] ([color=BLUE]setq[/color] c ([color=BLUE]=[/color] 1 ([color=BLUE]logand[/color] 1 ([color=BLUE]cdr[/color] ([color=BLUE]assoc[/color] 70 e)))))
               ([color=BLUE]setq[/color] l ([color=BLUE]append[/color] l ([color=BLUE]list[/color] ([color=BLUE]car[/color] l))))
           )
           ([color=BLUE]while[/color] ([color=BLUE]cadr[/color] l)
               ([color=BLUE]if[/color]
                   ([color=BLUE]and[/color] ([color=BLUE]/=[/color] 0.0 ([color=BLUE]setq[/color] b ([color=BLUE]cadar[/color] l)))
                       ([color=BLUE]setq[/color] p
                           ([color=BLUE]polar[/color] ([color=BLUE]caar[/color] l)
                               ([color=BLUE]+[/color] ([color=BLUE]angle[/color] ([color=BLUE]caar[/color] l) ([color=BLUE]caadr[/color] l)) ([color=BLUE]-[/color] ([color=BLUE]/[/color] [color=BLUE]pi[/color] 2) ([color=BLUE]*[/color] 2 ([color=BLUE]atan[/color] b))))
                               ([color=BLUE]/[/color] ([color=BLUE]*[/color] ([color=BLUE]distance[/color] ([color=BLUE]caar[/color] l) ([color=BLUE]caadr[/color] l)) ([color=BLUE]1+[/color] ([color=BLUE]*[/color] b b))) 4 b)
                           )
                       )
                       ([color=BLUE]setq[/color] q
                           ([color=BLUE]inters[/color]
                               ([color=BLUE]caar[/color]  l) ([color=BLUE]polar[/color] ([color=BLUE]caar[/color]  l) ([color=BLUE]+[/color] ([color=BLUE]angle[/color] p ([color=BLUE]caar[/color]  l)) ([color=BLUE]/[/color] [color=BLUE]pi[/color] 2.0)) 1.0)
                               ([color=BLUE]caadr[/color] l) ([color=BLUE]polar[/color] ([color=BLUE]caadr[/color] l) ([color=BLUE]+[/color] ([color=BLUE]angle[/color] p ([color=BLUE]caadr[/color] l)) ([color=BLUE]/[/color] [color=BLUE]pi[/color] 2.0)) 1.0)
                               [color=BLUE]nil[/color]
                           )
                       )
                   )
                   ([color=BLUE]setq[/color] r ([color=BLUE]vl-list*[/color] q ([color=BLUE]caar[/color] l) r))
                   ([color=BLUE]setq[/color] r ([color=BLUE]cons[/color] ([color=BLUE]caar[/color] l) r))
               )
               ([color=BLUE]setq[/color] l ([color=BLUE]cdr[/color] l))
           )
           ([color=BLUE]if[/color] ([color=BLUE]not[/color] c) ([color=BLUE]setq[/color] r ([color=BLUE]cons[/color] ([color=BLUE]caar[/color] l) r)))
           ([color=BLUE]entmake[/color]
               ([color=BLUE]append[/color]
                   ([color=BLUE]subst[/color]
                       ([color=BLUE]cons[/color]  90 ([color=BLUE]length[/color] r))
                       ([color=BLUE]assoc[/color] 90 e)
                       ([color=BLUE]reverse[/color] ([color=BLUE]member[/color] ([color=BLUE]assoc[/color] 39 e) ([color=BLUE]reverse[/color] e)))
                   )
                   ([color=BLUE]mapcar[/color] '([color=BLUE]lambda[/color] ( x ) ([color=BLUE]cons[/color] 10 x)) ([color=BLUE]reverse[/color] r))
                   ([color=BLUE]list[/color] ([color=BLUE]assoc[/color] 210 e))
               )
           )
       )
   )
   ([color=BLUE]princ[/color])
)
([color=BLUE]princ[/color])



Hi Lee



your version is much faster than mine.:thumbsup:

Is it possible to draw only the lines outside the arcs or remove the lines that overlapped on the original polyline?

Lee Mac Grand Master

Lee Mac

Posted
Posted
your version is much faster than mine.:thumbsup:



Excellent, thanks :)



Is it possible to draw only the lines outside the arcs or remove the lines that overlapped on the original polyline?



The program will recreate the polyline with all arc segments removed & replaced with linear segments, therefore, you can delete the original polyline if desired (or this deletion can easily be added to the code).



Lee

rrulep Contributor

rrulep

Posted
  • Author
Posted

hi lee



i only want to removed the straight line that overlapped to the original polyline
