Drawing a roof of a train

[MasterGollom]

Hi,



I'm currently trying to construct a train for my model railway. Since it has never been mass produced by any manufacturer, I have to make my own.

Fortunately a manufacturer once made a model which is close to the one I want. This is the model I'm using to get the dimensions from and the basic shape. Now with my model almost complete I just need the front part of the train. Now I'm really struggling with the roof and I hope someone can help me to get it done.

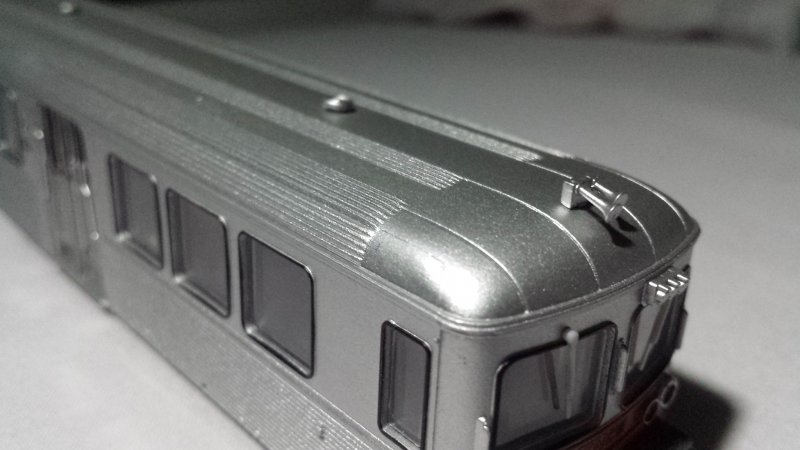

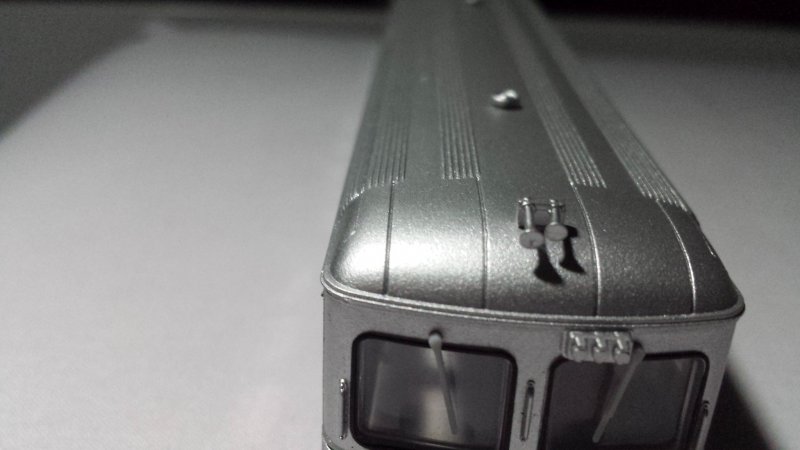

First I want to show you some pictures of the original model:

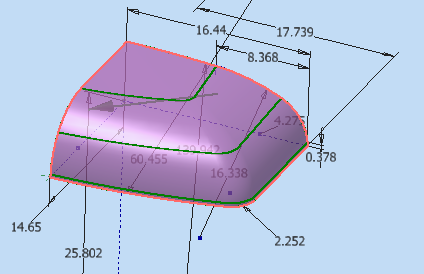

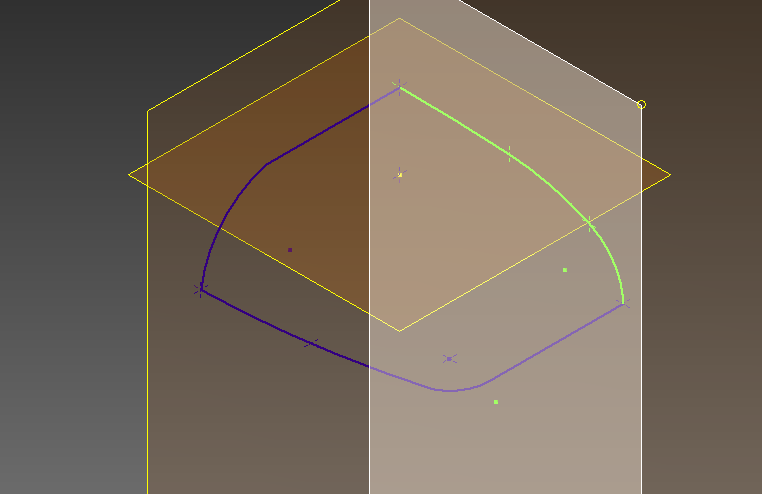

A screenshot how I have done it so far:





Now I'm trying to use the "Loft"-Tool and it always tells me "The attempted operation did not produce a meaningful result. Try with different inputs".



Here's my .ipt-File aswell

dach.ipt



I really hope that here's somebody who can help me with this.



Thanks

[JD Mather]

I see you are using a bunch of Zero dimensions. Why are you not using Coincident Constraints instead?

[MasterGollom]

Well, honestly, I'm still a noob in Inventor and therefor I'm letting Invetor doing the dimension and constraints stuff by using the Auto-Dimension Tool.

[JD Mather]

It took me only a fraction of the number of dimensions to fully constrain.

Forget you ever saw the auto-dimension tool. See the Inventor 101 Tutorials above.

[MasterGollom]

And this is the only thing you had to correct in my file to get the loft done?

[JD Mather]

I didn't trust your file - so I reproduced it from scratch.

[MasterGollom]

Oh, ok...well in the mean time I redrew the file, made new dimensions an contraints but it still doesn't work...I still have to be missing something



front.ipt

[JD Mather]

I saw a zero dimension and a zero length line (degenerate) in your first sketch.

And your first sketch doesn't match the geometry of the previous file?

I recommend that you go through the Inventor 101 Tutorials above.
