Draw a triangle and hatch

DuanJinHui

By DuanJinHui
in AutoLISP, Visual LISP & DCL

 Share

Recommended Posts

DuanJinHui Collaborator

DuanJinHui

Posted
Posted

Hello. Cadtutor's friends

I have an idea, want to use lisp to do these things. Someone can help me ?

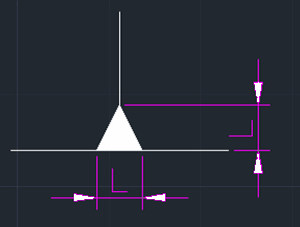

1.Enter the length of "L" , Then Pick up two perpendicular lines ,maybe is Plines.

Draw a isosceles triangle, and hatch.

eg.

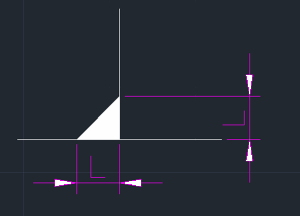

2. Enter the length of "L" , Then Pick up two perpendicular lines ,maybe is Plines.



Draw a right triangle, and hatch.

eg. Maybe need to choose which side .


Tharwat Grand Master

Tharwat

Posted
Posted

Welcome to CADTutor :)



Try this routine , and press TAB button to step through triangle shapes .



(defun c:Test (/ *error* i a b c hp gr e p)
 ;;    Tharwat Al Shoufi    ;;
 ;;    Date: 31.08.2014    ;;
 ;;    Dynamic Triangle     ;;
 (defun *error* (msg)
   (redraw)
   (if hp
     (setvar 'HPNAME hp)
   )
   (if (wcmatch (strcase msg) "*BREAK*,*CANCEL*,*EXIT*")
     (princ (strcat "\n** Error: " msg " **"))
   )
 )
 (if
   (and (setq
          *length* (cond
                     ((getdist (strcat "\n Specify Length of triangle <"
                                       (rtos (cond (*length*)
                                                   ((setq *length* 1.0))
                                             )
                                             2
                                             2
                                       )
                                       ">: "
                               )
                      )
                     )
                     (*length*)
                   )
        )
        (setq p (getpoint "\n Specify base point :"))
   )
    (progn
      (setq hp (getvar 'HPNAME)
            i  1
            a  (polar p 0. (/ *length* 2.))
            b  (polar a pi *length*)
            c  (polar p (* pi 0.5) *length*)
      )
      (grvecs (list -3 a b b c c a))
      (princ "\n Press TAB to step into shapes :")
      (while (eq (cadr (setq gr (grread nil 14 0))) 9)
        (redraw)
        (if (eq (cadr gr) 9)
          (cond ((eq i 0)
                 (setq a (polar p 0. (/ *length* 2.))
                       b (polar a pi *length*)
                       c (polar p (* pi 0.5) *length*)
                 )
                 (grvecs (list -3 a b b c c a))
                )
                ((eq i 1)
                 (setq a (polar p 0. *length*)
                       b (polar p (* pi 0.5) *length*)
                       c p
                 )
                 (grvecs (list -3 a b b c c a))
                )
                ((eq i 2)
                 (setq a (polar p 0. *length*)
                       b (polar p (* pi 1.5) *length*)
                       c p
                 )
                 (grvecs (list -3 a b b c c a))
                )
                ((eq i 3)
                 (setq a (polar p pi (/ *length* 2.))
                       b (polar a 0. *length*)
                       c (polar p (* pi 1.5) *length*)
                 )
                 (grvecs (list -3 a b b c c a))
                )
                ((eq i 4)
                 (setq a (polar p pi *length*)
                       b (polar p (* pi 1.5) *length*)
                       c p
                 )
                 (grvecs (list -3 a b b c c a))
                )
                ((eq i 5)
                 (setq a (polar p pi *length*)
                       b (polar p (* pi 0.5) *length*)
                       c p
                 )
                 (grvecs (list -3 a b b c c a))
                )

          )
        )
        (if (eq i 5)
          (setq i 0)
          (setq i (1+ i))
        )
      )
      (if (or (member (car gr) '(3 25)) (member (cadr gr) '(32 13)))
        (if (setq e (entmakex
                      (list '(0 . "LWPOLYLINE")
                            '(100 . "AcDbEntity")
                            '(100 . "AcDbPolyline")
                            '(90 . 3)
                            '(70 . 1)
                            (cons 10 a)
                            (cons 10 b)
                            (cons 10 c)
                      )
                    )
            )
          (progn
            (setvar 'HPNAME "SOLID")
            (command "_.-hatch" "S" e "" "")
          )
        )
      )
    )
 )
 (*error* nil)
 (princ)
)

DuanJinHui Collaborator

DuanJinHui

Posted
  • Author
Posted
Welcome to CADTutor :)



Try this routine , and press TAB button to step through triangle shapes .



(defun c:Test (/ *error* i a b c hp gr e p)
 ;;    Tharwat Al Shoufi    ;;
 ;;    Date: 31.08.2014    ;;
 ;;    Dynamic Triangle     ;;
 (defun *error* (msg)
   (redraw)
   (if hp
     (setvar 'HPNAME hp)
   )
   (if (wcmatch (strcase msg) "*BREAK*,*CANCEL*,*EXIT*")
     (princ (strcat "\n** Error: " msg " **"))
   )
 )
 (if
   (and (setq
          *length* (cond
                     ((getdist (strcat "\n Specify Length of triangle <"
                                       (rtos (cond (*length*)
                                                   ((setq *length* 1.0))
                                             )
                                             2
                                             2
                                       )
                                       ">: "
                               )
                      )
                     )
                     (*length*)
                   )
        )
        (setq p (getpoint "\n Specify base point :"))
   )
    (progn
      (setq hp (getvar 'HPNAME)
            i  1
            a  (polar p 0. (/ *length* 2.))
            b  (polar a pi *length*)
            c  (polar p (* pi 0.5) *length*)
      )
      (grvecs (list -3 a b b c c a))
      (princ "\n Press TAB to step into shapes :")
      (while (eq (cadr (setq gr (grread nil 14 0))) 9)
        (redraw)
        (if (eq (cadr gr) 9)
          (cond ((eq i 0)
                 (setq a (polar p 0. (/ *length* 2.))
                       b (polar a pi *length*)
                       c (polar p (* pi 0.5) *length*)
                 )
                 (grvecs (list -3 a b b c c a))
                )
                ((eq i 1)
                 (setq a (polar p 0. *length*)
                       b (polar p (* pi 0.5) *length*)
                       c p
                 )
                 (grvecs (list -3 a b b c c a))
                )
                ((eq i 2)
                 (setq a (polar p 0. *length*)
                       b (polar p (* pi 1.5) *length*)
                       c p
                 )
                 (grvecs (list -3 a b b c c a))
                )
                ((eq i 3)
                 (setq a (polar p pi (/ *length* 2.))
                       b (polar a 0. *length*)
                       c (polar p (* pi 1.5) *length*)
                 )
                 (grvecs (list -3 a b b c c a))
                )
                ((eq i 4)
                 (setq a (polar p pi *length*)
                       b (polar p (* pi 1.5) *length*)
                       c p
                 )
                 (grvecs (list -3 a b b c c a))
                )
                ((eq i 5)
                 (setq a (polar p pi *length*)
                       b (polar p (* pi 0.5) *length*)
                       c p
                 )
                 (grvecs (list -3 a b b c c a))
                )

          )
        )
        (if (eq i 5)
          (setq i 0)
          (setq i (1+ i))
        )
      )
      (if (or (member (car gr) '(3 25)) (member (cadr gr) '(32 13)))
        (if (setq e (entmakex
                      (list '(0 . "LWPOLYLINE")
                            '(100 . "AcDbEntity")
                            '(100 . "AcDbPolyline")
                            '(90 . 3)
                            '(70 . 1)
                            (cons 10 a)
                            (cons 10 b)
                            (cons 10 c)
                      )
                    )
            )
          (progn
            (setvar 'HPNAME "SOLID")
            (command "_.-hatch" "S" e "" "")
          )
        )
      )
    )
 )
 (*error* nil)
 (princ)
)



Mr.Tharwat. Thanks for your help. But, maybe like this, how to handle ?


Tharwat Grand Master

Tharwat

Posted
Posted
Mr.Tharwat. Thanks for your help. But, maybe like this, how to handle ?



Not a problem at all , try the modification and let me know ;)



(defun c:Test (/ *error* i a b c hp gr e p p1 ang)
 ;;    Tharwat Al Shoufi	;;
 ;;    Date: 31.08.2014	;;
 ;;    Dynamic Triangle	;;
 ;;	Resision - 01 Direction	;;
 ;;	of triangle added	;;
 (defun *error* (msg)
   (redraw)
   (if hp
     (setvar 'HPNAME hp)
   )
   (if (wcmatch (strcase msg) "*BREAK*,*CANCEL*,*EXIT*")
     (princ (strcat "\n** Error: " msg " **"))
   )
 )
 (if (and (setq *length* (cond ((getdist (strcat "\n Specify Length of triangle <"
                                                 (rtos (cond (*length*)
                                                             ((setq *length* 1.0))
                                                       )
                                                       2
                                                       2
                                                 )
                                                 ">: "
                                         )
                                )
                               )
                               (*length*)
                         )
          )
          (setq p (getpoint "\n Specify base point :"))
          (setq p1 (getpoint "\n Specify Direction :" p))
     )
   (progn (setq hp  (getvar 'HPNAME)
                i   1
                ang (angle p p1)
                a   (polar p (+ ang (* pi 1.5)) (/ *length* 2.))
                b   (polar p (+ ang (* pi 0.5)) (/ *length* 2.))
                c   (polar p ang *length*)
          )
          (grvecs (list -3 a b b c c a))
          (princ "\n Press TAB to step into shapes :")
          (while (eq (cadr (setq gr (grread nil 14 0))) 9)
            (redraw)
            (if (eq (cadr gr) 9)
              (cond ((eq i 0)
                     (setq a (polar p (+ ang (* pi 1.5)) (/ *length* 2.))
                           b (polar p (+ ang (* pi 0.5)) (/ *length* 2.))
                           c (polar p ang *length*)
                     )
                     (grvecs (list -3 a b b c c a))
                    )
                    ((eq i 1)
                     (setq a (polar p (+ ang (* pi 1.5)) *length*)
                           b (polar p ang *length*)
                           c p
                     )
                     (grvecs (list -3 a b b c c a))
                    )
                    ((eq i 2)
                     ;;			;;
                     (setq a (polar p (+ ang (* pi 1.5)) *length*)
                           b (polar p (+ ang pi) *length*)
                           c p
                     )
                     (grvecs (list -3 a b b c c a))
                    )
                    ((eq i 3)
                     ;;			;;
                     (setq a (polar p (+ ang (* pi 1.5)) (/ *length* 2.))
                           b (polar a (+ ang (* pi 0.5)) *length*)
                           c (polar p (+ ang pi) *length*)
                     )
                     (grvecs (list -3 a b b c c a))
                    )
                    ((eq i 4)
                     ;;			;;
                     (setq a (polar p (+ ang (* pi 0.5)) *length*)
                           b (polar p (+ ang pi) *length*)
                           c p
                     )
                     (grvecs (list -3 a b b c c a))
                    )
                    ((eq i 5)
                     ;;			;;
                     (setq a (polar p ang *length*)
                           b (polar p (+ ang (* pi 0.5)) *length*)
                           c p
                     )
                     (grvecs (list -3 a b b c c a))
                    )
              )
            )
            (if (eq i 5)
              (setq i 0)
              (setq i (1+ i))
            )
          )
          (if (and (or (member (car gr) '(3 25)) (member (cadr gr) '(32 13)))
                   (setq e (entmakex (list '(0 . "LWPOLYLINE")
                                           '(100 . "AcDbEntity")
                                           '(100 . "AcDbPolyline")
                                           '(90 . 3)
                                           '(70 . 1)
                                           (cons 10 a)
                                           (cons 10 b)
                                           (cons 10 c)
                                     )
                           )
                   )
              )
            (progn (setvar 'HPNAME "SOLID") (command "_.-hatch" "S" e "" ""))
          )
   )
 )
 (*error* nil)
 (princ)
)

DuanJinHui Collaborator

DuanJinHui

Posted
  • Author
Posted
Not a problem at all , try the modification and let me know ;)



(defun c:Test (/ *error* i a b c hp gr e p p1 ang)
 ;;    Tharwat Al Shoufi	;;
 ;;    Date: 31.08.2014	;;
 ;;    Dynamic Triangle	;;
 ;;	Resision - 01 Direction	;;
 ;;	of triangle added	;;
 (defun *error* (msg)
   (redraw)
   (if hp
     (setvar 'HPNAME hp)
   )
   (if (wcmatch (strcase msg) "*BREAK*,*CANCEL*,*EXIT*")
     (princ (strcat "\n** Error: " msg " **"))
   )
 )
 (if (and (setq *length* (cond ((getdist (strcat "\n Specify Length of triangle <"
                                                 (rtos (cond (*length*)
                                                             ((setq *length* 1.0))
                                                       )
                                                       2
                                                       2
                                                 )
                                                 ">: "
                                         )
                                )
                               )
                               (*length*)
                         )
          )
          (setq p (getpoint "\n Specify base point :"))
          (setq p1 (getpoint "\n Specify Direction :" p))
     )
   (progn (setq hp  (getvar 'HPNAME)
                i   1
                ang (angle p p1)
                a   (polar p (+ ang (* pi 1.5)) (/ *length* 2.))
                b   (polar p (+ ang (* pi 0.5)) (/ *length* 2.))
                c   (polar p ang *length*)
          )
          (grvecs (list -3 a b b c c a))
          (princ "\n Press TAB to step into shapes :")
          (while (eq (cadr (setq gr (grread nil 14 0))) 9)
            (redraw)
            (if (eq (cadr gr) 9)
              (cond ((eq i 0)
                     (setq a (polar p (+ ang (* pi 1.5)) (/ *length* 2.))
                           b (polar p (+ ang (* pi 0.5)) (/ *length* 2.))
                           c (polar p ang *length*)
                     )
                     (grvecs (list -3 a b b c c a))
                    )
                    ((eq i 1)
                     (setq a (polar p (+ ang (* pi 1.5)) *length*)
                           b (polar p ang *length*)
                           c p
                     )
                     (grvecs (list -3 a b b c c a))
                    )
                    ((eq i 2)
                     ;;			;;
                     (setq a (polar p (+ ang (* pi 1.5)) *length*)
                           b (polar p (+ ang pi) *length*)
                           c p
                     )
                     (grvecs (list -3 a b b c c a))
                    )
                    ((eq i 3)
                     ;;			;;
                     (setq a (polar p (+ ang (* pi 1.5)) (/ *length* 2.))
                           b (polar a (+ ang (* pi 0.5)) *length*)
                           c (polar p (+ ang pi) *length*)
                     )
                     (grvecs (list -3 a b b c c a))
                    )
                    ((eq i 4)
                     ;;			;;
                     (setq a (polar p (+ ang (* pi 0.5)) *length*)
                           b (polar p (+ ang pi) *length*)
                           c p
                     )
                     (grvecs (list -3 a b b c c a))
                    )
                    ((eq i 5)
                     ;;			;;
                     (setq a (polar p ang *length*)
                           b (polar p (+ ang (* pi 0.5)) *length*)
                           c p
                     )
                     (grvecs (list -3 a b b c c a))
                    )
              )
            )
            (if (eq i 5)
              (setq i 0)
              (setq i (1+ i))
            )
          )
          (if (and (or (member (car gr) '(3 25)) (member (cadr gr) '(32 13)))
                   (setq e (entmakex (list '(0 . "LWPOLYLINE")
                                           '(100 . "AcDbEntity")
                                           '(100 . "AcDbPolyline")
                                           '(90 . 3)
                                           '(70 . 1)
                                           (cons 10 a)
                                           (cons 10 b)
                                           (cons 10 c)
                                     )
                           )
                   )
              )
            (progn (setvar 'HPNAME "SOLID") (command "_.-hatch" "S" e "" ""))
          )
   )
 )
 (*error* nil)
 (princ)
)



dear sir, nice program. perfect. Thank you so much!

Tharwat Grand Master

Tharwat

Posted
Posted
dear sir, nice program. perfect. Thank you so much!



You are welcome . It was really fun to write that code .
