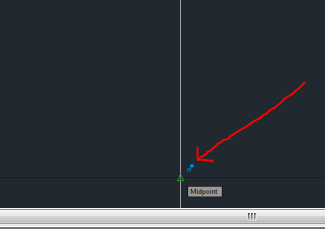

Sengna Posted July 11, 2014 Share Posted July 11, 2014 just upgrade to 2014 Autocad, i was wondering how can i get rid or remove this blue icon? it's very annoying. I don't know where it came from. I might have accidently turned it on somewhere on the ribbons, What does it do? Do you guys use it? thanks Quote Link to comment Share on other sites More sharing options...

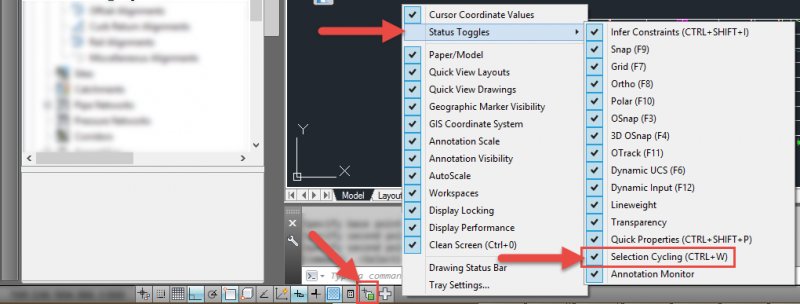

BlackBox Posted July 11, 2014 Share Posted July 11, 2014 Kind of hard to tell by the resolution of the image you posted, but it appears to be Selection Cycling... In which case you can use Ctrl+W, or the tray button for same. HTH Quote Link to comment Share on other sites More sharing options...
BlackBox Posted July 11, 2014 Share Posted July 11, 2014 Otherwise, do you have constrains enabled? On second thought, selection cycling does not display when in a command attempting to snap, as it now appears you're doing in the screenshot above. Hrrm. Quote Link to comment Share on other sites More sharing options...
Sengna Posted July 11, 2014 Author Share Posted July 11, 2014 Kind of hard to tell by the resolution of the image you posted, but it appears to be Selection Cycling... In which case you can use Ctrl+W, or the tray button for same. [ATTACH=CONFIG]49881[/ATTACH] HTH This is my setting, i did Ctrl+W and it still show the blue Icon, i went to the parametric tab on the ribbon and the icon does look like Auto constrain. Quote Link to comment Share on other sites More sharing options...
BlackBox Posted July 11, 2014 Share Posted July 11, 2014 ... i went to the parametric tab on the ribbon and the icon does look like Auto constrain. What happens when you remove all constraints? Quote Link to comment Share on other sites More sharing options...
rkmcswain Posted July 11, 2014 Share Posted July 11, 2014 Looks like a constraint symbol to me. Look at ±0:52 in this video Quote Link to comment Share on other sites More sharing options...
rkent Posted July 11, 2014 Share Posted July 11, 2014 The line you are osnapping to has a contraint so it is letting you know that. Use the DELCONSTRAINT command to remove them. Quote Link to comment Share on other sites More sharing options...
rkmcswain Posted July 11, 2014 Share Posted July 11, 2014 The line you are osnapping to has a contraint so it is letting you know that. Use the DELCONSTRAINT command to remove them. ...and hope that whoever created the constraint doesn't mind it being deleted... :-) Quote Link to comment Share on other sites More sharing options...

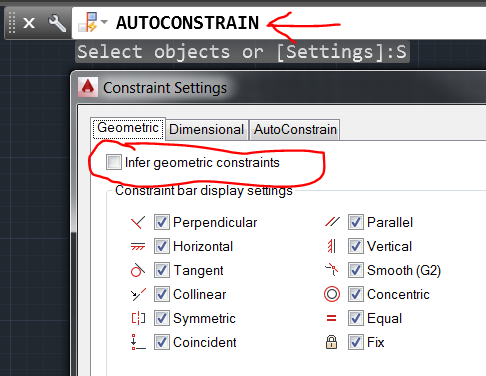

JD Mather Posted July 11, 2014 Share Posted July 11, 2014 For future reference constraintinfer = 0 Quote Link to comment Share on other sites More sharing options...
Sengna Posted July 11, 2014 Author Share Posted July 11, 2014 The line you are osnapping to has a contraint so it is letting you know that. Use the DELCONSTRAINT command to remove them. Quick update, i selected all the objs and used "DELCONSTRAINT" and set constraintinfer = 0 per JD Mather suggestion, I won't see any of the blue icon anymore, i think it's gone now. Today is the first day that i found out that Autocad 2014 has added Constraint Tools, maybe the Autodesk developers learnt from Autodesk Inventor. Thanks guys Quote Link to comment Share on other sites More sharing options...
