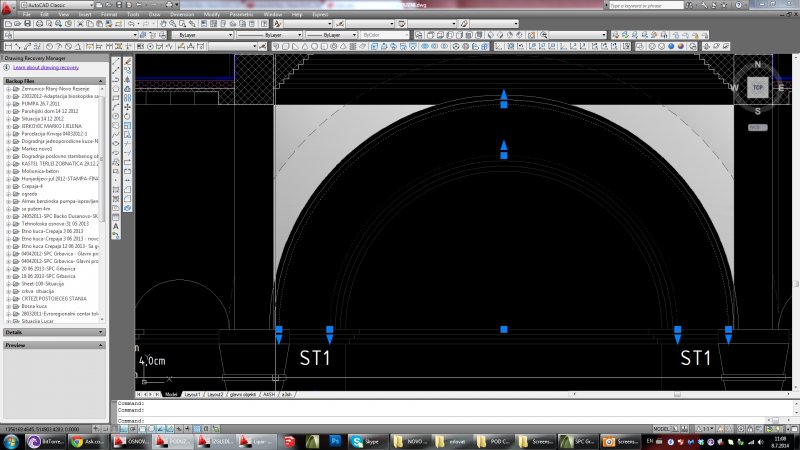

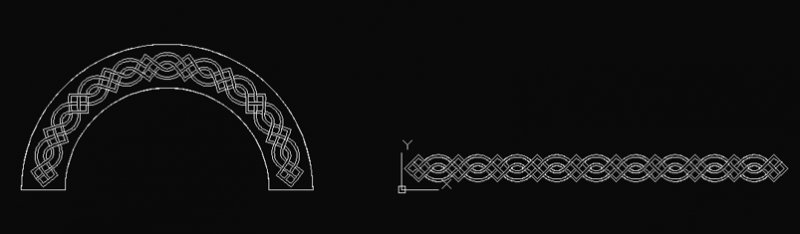

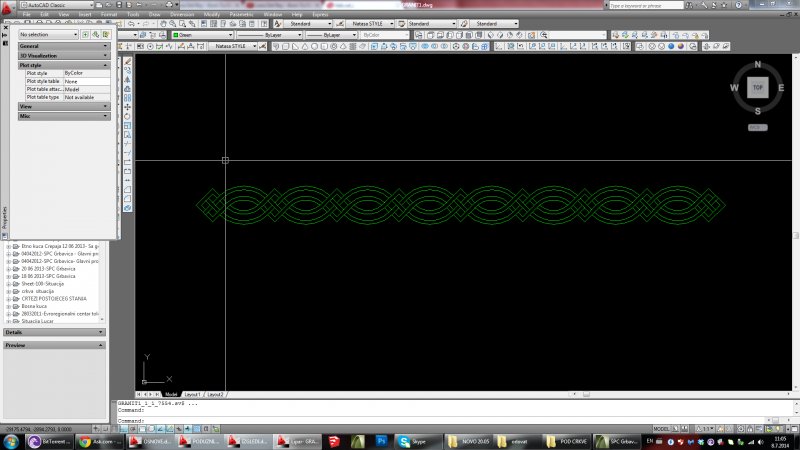

byk3bep Posted July 8, 2014 Posted July 8, 2014 I need to apply a shape I drew to an arc. The shape is made of simple lines screenshot 1 and i would like to apply it to an arc-screenshot 2...I'm not sure if it can be bent? To be easier to understand...i need an elevation of vault front which has a plaster relief on. Thanks! Quote
JD Mather Posted July 8, 2014 Posted July 8, 2014 I do not know of a way using AutoCAD. It can be done using Autodesk Inventor Engrave>Wrap to Face. (there is also a Bend tool and a Fold tool for similar operations) Quote
zaphod Posted July 8, 2014 Posted July 8, 2014 arraypath might do what you want and a lot of trim/extend. Quote
steven-g Posted July 8, 2014 Posted July 8, 2014 You possibly can't bend it in Autocad, but why not draw it bent to start with, the spline command works just fine round curves, it just takes a bit of setting out for the points, but its a repeating pattern so that's not difficult. Wrap&Roll.dwg Quote
scj Posted July 8, 2014 Posted July 8, 2014 My ABW-IMP.lsp can imprint 2d-polylines onto Revsurfs (or onto 3d- Edgesurfs), i.e. onto cylindrical surfaces too. Regards Jochen http://www.black-cad.de worldmap_red0,1.dwg Quote
