Vagulus Posted June 13, 2014 Share Posted June 13, 2014 I need to extrude this shape 0.75" away. Inventor does not recognize it. The slots I can extrude, but I don't want to - yet. Why not the full shape? Thanks 6-119 Boom Swing Bearing for a Power Crane.ipt Quote Link to comment Share on other sites More sharing options...
Raygers Posted June 14, 2014 Share Posted June 14, 2014 Always check around the profile to see that there are no irregularities such as overlapping curves etc. You had a couple that should have been trimmed back, after that it extruded no problem. Quote Link to comment Share on other sites More sharing options...
Vagulus Posted June 14, 2014 Author Share Posted June 14, 2014 Ah Hah! Forget not thine magnification. Thanks Quote Link to comment Share on other sites More sharing options...

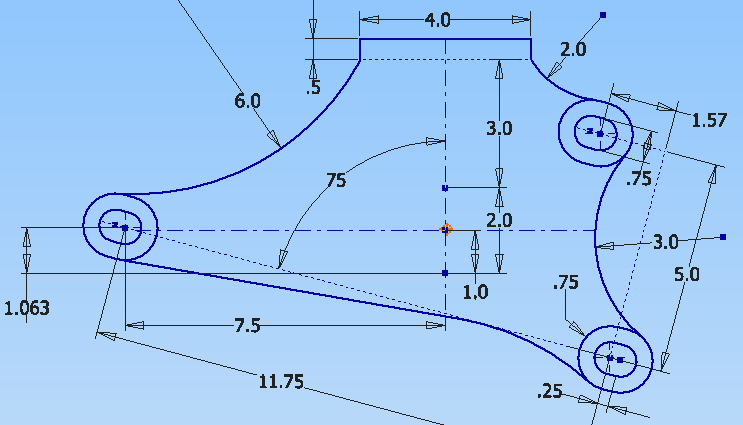

JD Mather Posted June 14, 2014 Share Posted June 14, 2014 (edited) Why are there dimensions on your sketch that aren't in the book? You can reduce sketch clutter by using Equal (=) constraints. Dimension same as in book as these dimensions can later be retrieved when creating 2D drawings. (and trim construction lines) Edited June 14, 2014 by JD Mather Quote Link to comment Share on other sites More sharing options...
