[INV2014] Add tabs to revolved part and make correct flatten

[Guest kruuger]

hello

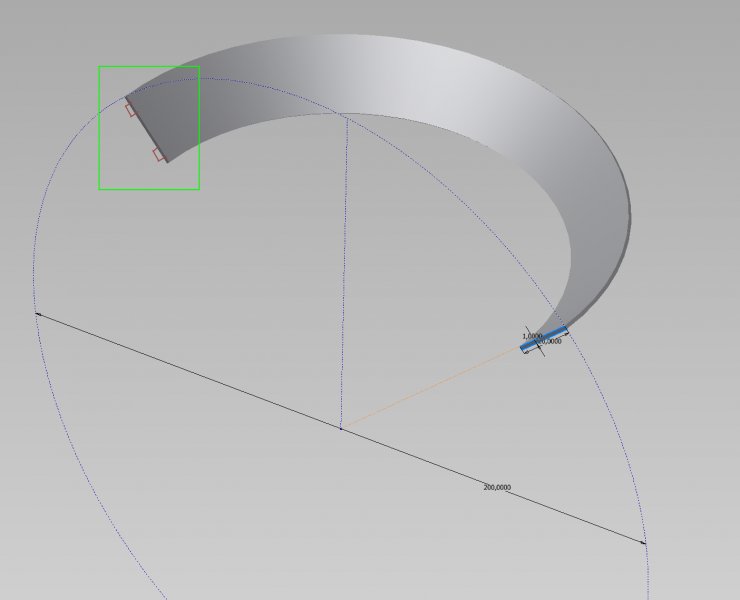

is there any way to create part like in attached file and add tabs on each side so part can be correctly unfolded ? need dxf shape.

there are two thickness 2, 3 which are very important. i think they are complicate a little since we can build sketch on sides.

thanks

kruuger

123.ipt

[JD Mather]

Sketch1 is not fully defined.

What is the angle?

[Guest kruuger]

Sketch1 is not fully defined.

What is the angle?

there will be a lot of parts one above another. it is just an example

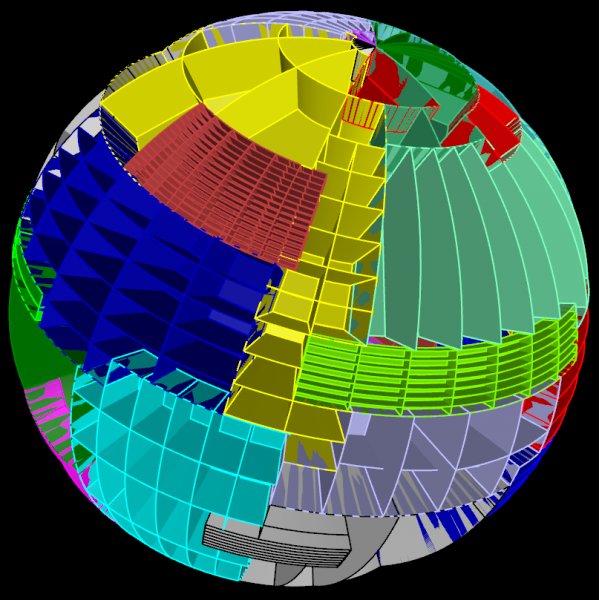

attached is surface work. now work on solids. hundreds of parts.

kruuger

[Guest kruuger]

i think i got this

1. draw tabs on main sketch

2. revolve main sketch

3. trim both ends

4. revolve tabs profile

http://forum.cad.pl/download/file.php?id=6773&mode=view

any other faster solution still welcome

k.

[JD Mather]

You do not need to draw a rectangle to get a Contour Roll (conic sheet metal) all you need is a single line.

[Guest kruuger]

You do not need to draw a rectangle to get a Contour Roll (conic sheet metal) all you need is a single line.

ah yes, that's good. easier and faster. thanks
