.ifc to .dwg top view objects not visible

krohlfs

By krohlfs
in AutoCAD 3D Modelling & Rendering

 Share

Recommended Posts

krohlfs Newbie

krohlfs

Posted
Posted

I used AutoCAD MEP 2014 to open an .ifc file, importing it into .dwg. This particular file is a Structural Joist file. When I open the .dwg file, the joists are not visible in Top View. If I look at the objects at any other angle, I can see they are there, they are just not visible in Top View. How can I fix so I can complete a set of drawings?

Thank you!

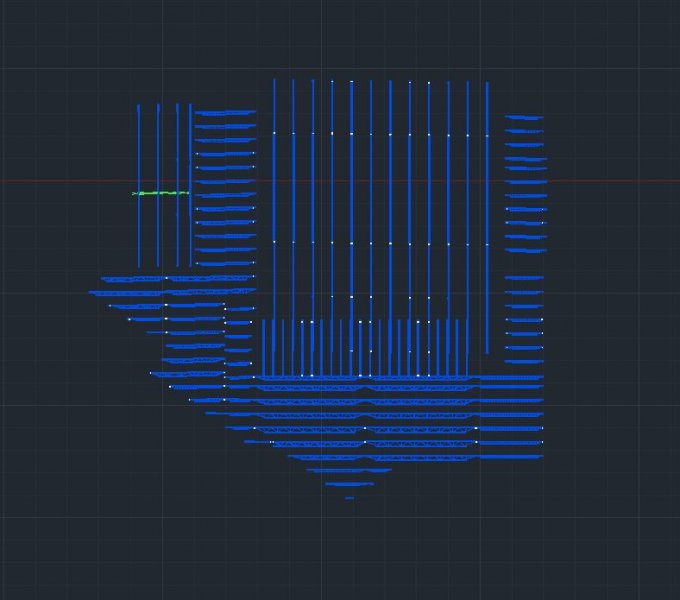

angled view.jpg

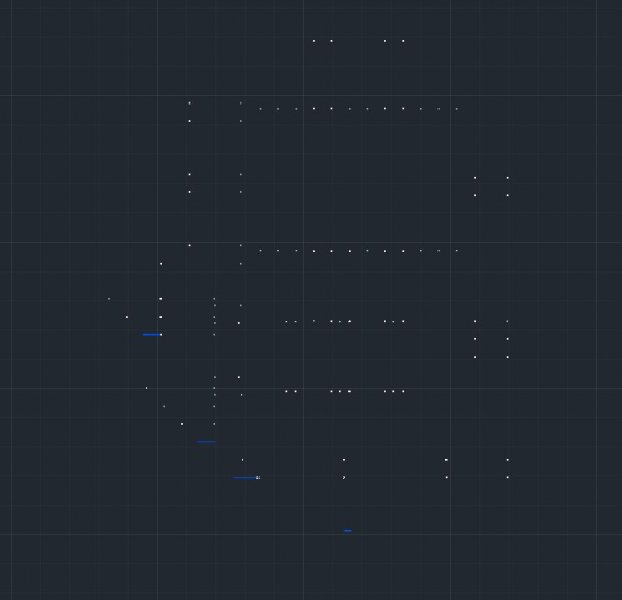

top view.jpg
