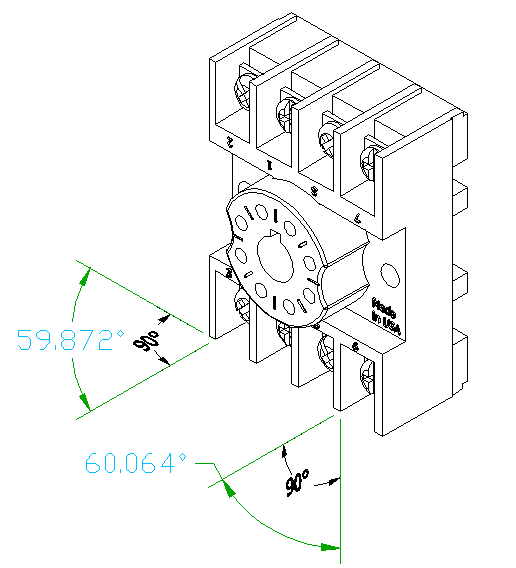

alijahed Posted April 23, 2014 Posted April 23, 2014 Hi All, I am experiencing an interesting problem in Inventor!!! Have you noticed when you measure the angles on your isometric views it is wrong! Instead of being 60 and 120 degree it's got a funny dimensions!!! Please see below and the attached files. Part1.zipFetching info... Quote
JD Mather Posted April 23, 2014 Posted April 23, 2014 Are you using True dimension type or are you using Projected dimension type? Quote
alijahed Posted April 23, 2014 Author Posted April 23, 2014 It is not only about that when you export it as DWG the angles are not right! Quote
alijahed Posted March 17, 2015 Author Posted March 17, 2015 I still have this problem unsolved! To me it is a big problem. Just draw something in Inventor then export it to dwg file to see. Quote
ecshclark Posted March 20, 2015 Posted March 20, 2015 Try edit view. select the change view orientation icon, select the isometric view corner on the view cube, then select Finish Custom View. See if that corrects your drawing view. Quote
alijahed Posted March 21, 2015 Author Posted March 21, 2015 No mate, This is an internal error in Inventor and apparently nobody has noticed this yet! Quote
gbradley Posted March 24, 2015 Posted March 24, 2015 I copied this from Inventor 2015 to AutoCad, and I also see a difference. So at least you know your not crazy. Quote
alijahed Posted March 24, 2015 Author Posted March 24, 2015 I know! I am going to raise it in Autodesk Forum Quote
gbradley Posted March 25, 2015 Posted March 25, 2015 As noted on the AutoDesk Forum, the problem is with the projected ISO views. If the baseview ISO Top Right is chosen, then you get nice square angles. This isn't a big issue for me, but I find it interesting. Quote
