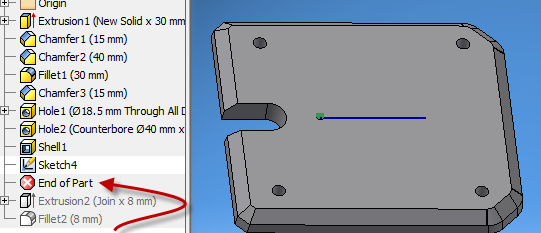

JD Mather Posted April 28, 2014 Author Share Posted April 28, 2014 Drag the red EOP above the extrusion and fillet we just made. (I just want you to get practice with moving the EOP.) Start a new sketch on the top face of the part and sketch a horizontal like from the projected origin as shown. Quote Link to comment Share on other sites More sharing options...

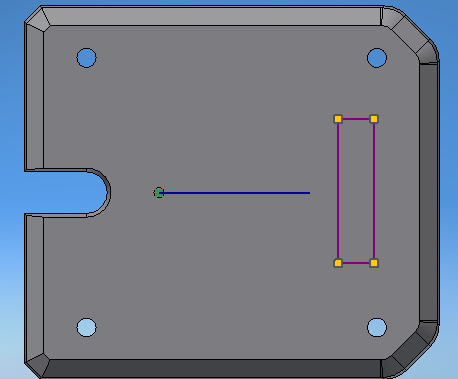

JD Mather Posted April 28, 2014 Author Share Posted April 28, 2014 Sketch a rectangle as shown. Do you know how to line it up symmetrically about the horizontal line? Add a Coincident constraint between the midpoint of the vertical line and the endpoint of the horizontal line. Quote Link to comment Share on other sites More sharing options...

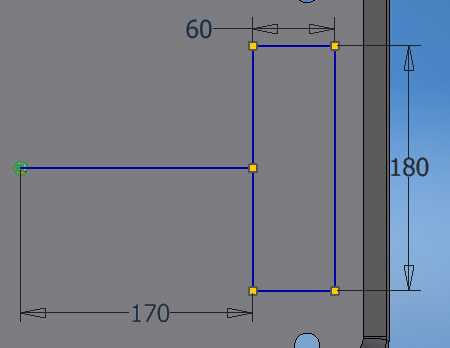

JD Mather Posted April 28, 2014 Author Share Posted April 28, 2014 Dimension the rectangle as shown and then Extrude a distance of 8mm. Quote Link to comment Share on other sites More sharing options...

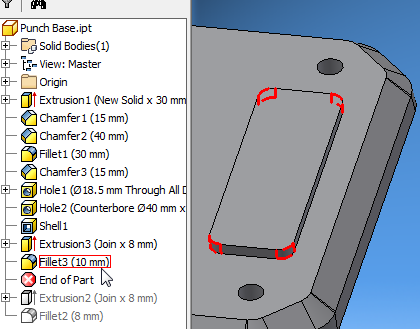

JD Mather Posted April 28, 2014 Author Share Posted April 28, 2014 Fillet the 4 corners of the extruded rectangle with 10mm fillets. Quote Link to comment Share on other sites More sharing options...

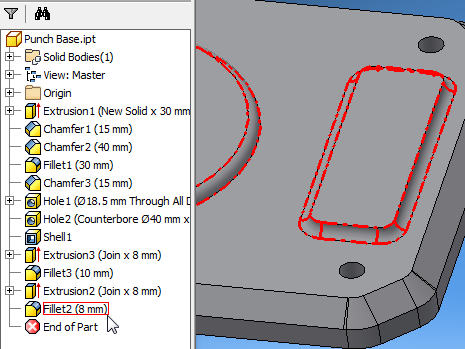

JD Mather Posted April 28, 2014 Author Share Posted April 28, 2014 Drag the red EOP back down to the bottom of the feature tree. Edit the last fillet feature and add the loop around the bottom of the extruded rectangular feature as shown. By moving the EOP up and down the feature tree we can manipulate how we add features and keep the number and type of features in a logical order that is easy to edit later. Quote Link to comment Share on other sites More sharing options...

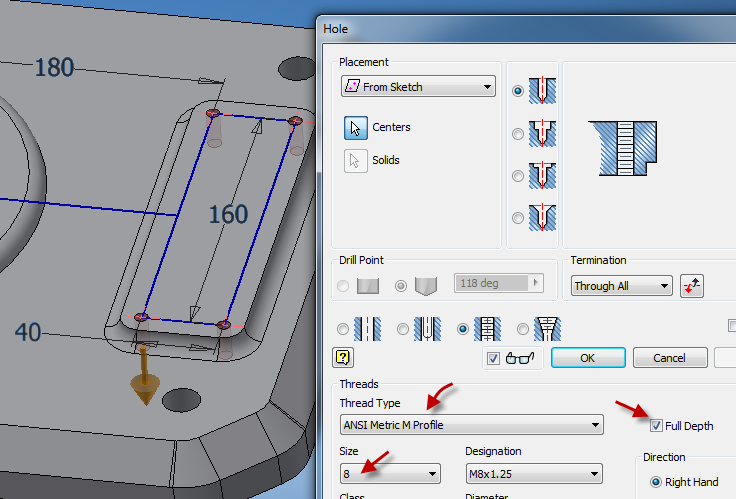

JD Mather Posted April 28, 2014 Author Share Posted April 28, 2014 Start a new sketch on the top of the extruded rectangular feature. Sketch a new rectangle as shown. Convert or add sketch Center Points to the 4 corners of the rectangle. Add the threaded holes as shown. Quote Link to comment Share on other sites More sharing options...

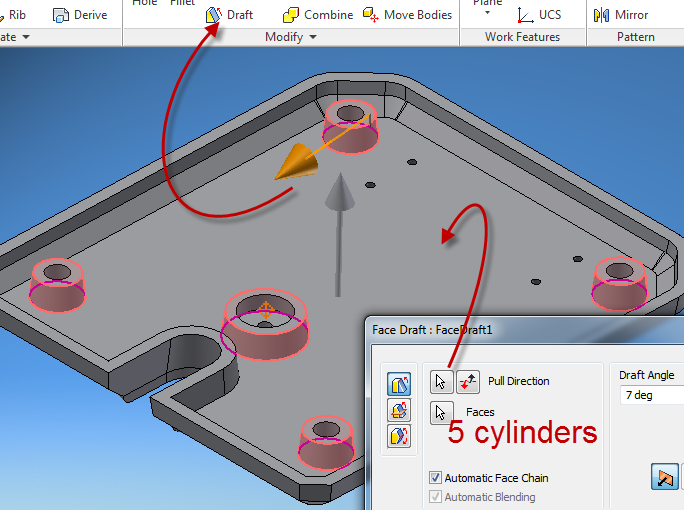

JD Mather Posted April 28, 2014 Author Share Posted April 28, 2014 Turn the part back over to look at the bottom. As this will be a cast part - we need to add a draft angle to the 5 cylindrical features. Pick the bottom planar face to define the Pull Direction and then pick the 5 cylinders. Note: When selecting the cylindrical faces - pick then towards the bottom of the cylinders where they connect to the planar face. This connection is referred to as the "hinge". Quote Link to comment Share on other sites More sharing options...

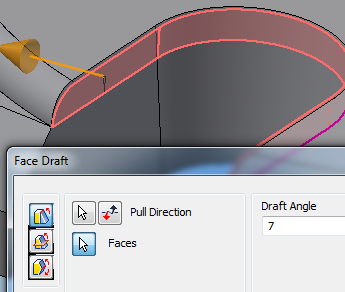

JD Mather Posted April 28, 2014 Author Share Posted April 28, 2014 Finally, we need to add draft to the inside of the slot where we extruded an additional 8mm. Pick the top face to define the pull direction and then click towards the bottom of the "horseshoe" face as shown. Quote Link to comment Share on other sites More sharing options...

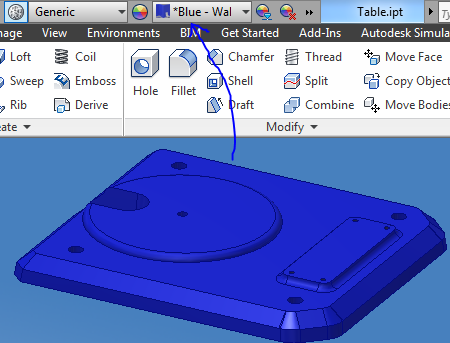

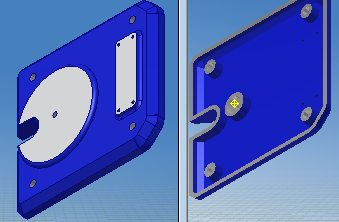

JD Mather Posted April 29, 2014 Author Share Posted April 29, 2014 "Paint" the part by changing the part color. "Unpaint" the machined faces by changing the Properties. Remember - you can change a faces Properties by right clicking on the face. Remember - you can change a feature Properties (like the Holes) by right clicking on the feature in the browser. Quote Link to comment Share on other sites More sharing options...

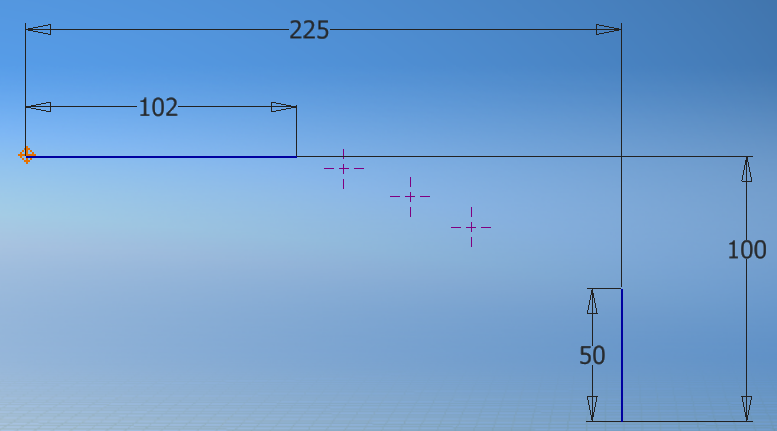

JD Mather Posted April 29, 2014 Author Share Posted April 29, 2014 Start a new Metric part file. Start a new sketch on the XY plane. Create the horizontal line going right from the Origin and the vertical line dimensioned as shown. Add three sketch points approximately a shown. Quote Link to comment Share on other sites More sharing options...

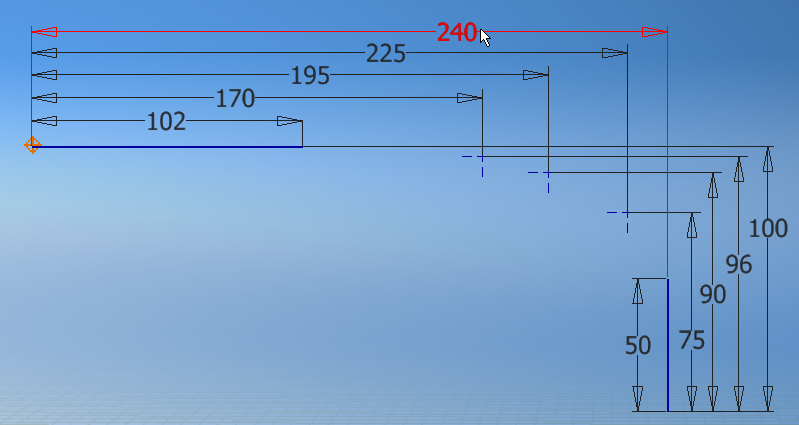

JD Mather Posted April 29, 2014 Author Share Posted April 29, 2014 Oops, I made a mistake on the location of the vertical line. No big deal, simply double click on the 225 dimension and change to 240. Dimension the location of the points as shown. Quote Link to comment Share on other sites More sharing options...

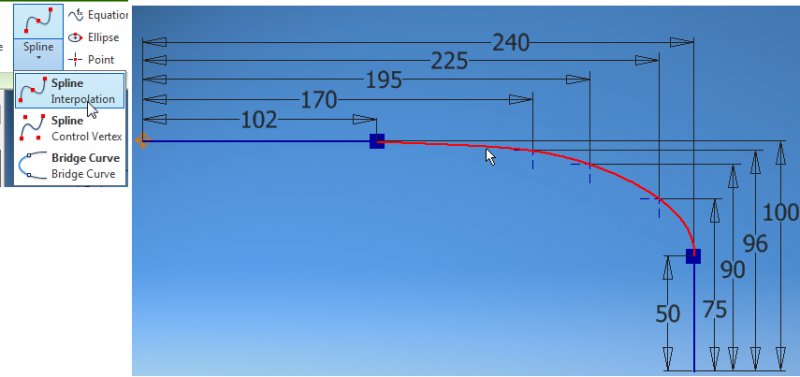

JD Mather Posted April 29, 2014 Author Share Posted April 29, 2014 Connect the ends of the lines going through the 3 points with an Interpolation Spline (Notice that there are 3 types of splines). After clicking the last point for the spline click the Checkmark or right mouse button select Done. Add Tangent constraints between each end of the spline and the lines. Quote Link to comment Share on other sites More sharing options...

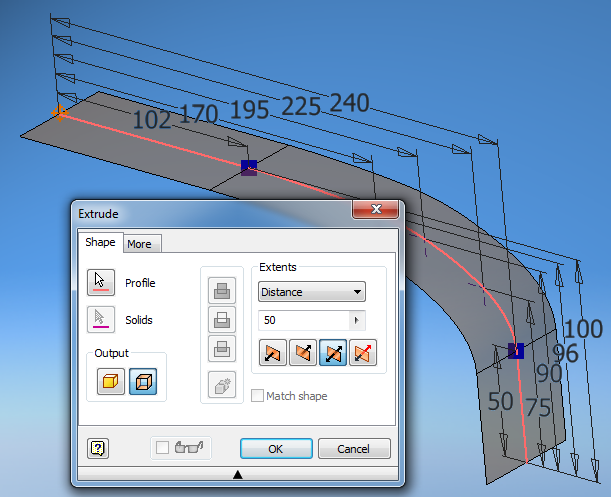

JD Mather Posted April 29, 2014 Author Share Posted April 29, 2014 Extrude the sketch midplane (symmetrical) a distance of 50mm. Note: Because we did not have a closed profile - Inventor automatically extruded as a "surface body" rather than as a solid body. Quote Link to comment Share on other sites More sharing options...

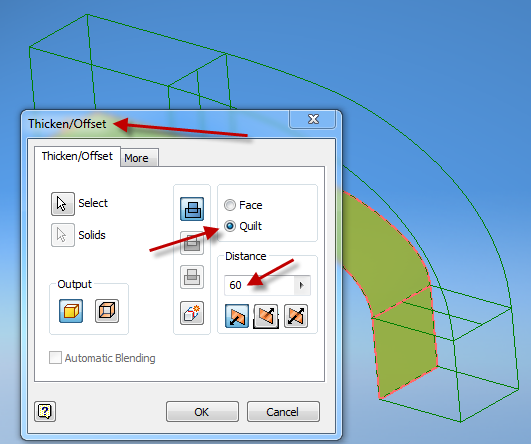

JD Mather Posted April 29, 2014 Author Share Posted April 29, 2014 Next we will learn a new tool. Select the Thicken/Offset tool and set to Quilt, then select the surface body and set the direction and distance. This is much faster than creating a closed profile. (especially where a spline is involved) Save the file with the name Column.ipt Turn the part over. In the browser right click on the ExtrusionSrf1 and turn off the Visibility. Quote Link to comment Share on other sites More sharing options...

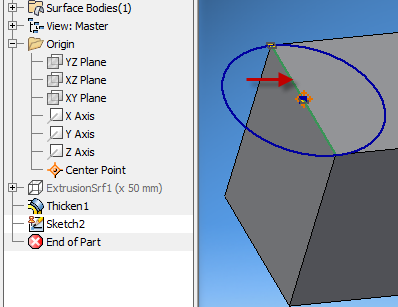

JD Mather Posted April 29, 2014 Author Share Posted April 29, 2014 Start a new sketch on the XZ plane and Project Geometry the edge shown. Sketch a circle from the origin center point out to the edge of the projected line. Finish Sketch and turn the part over. Quote Link to comment Share on other sites More sharing options...

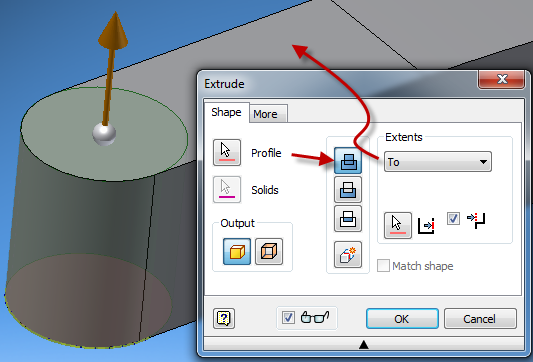

JD Mather Posted April 29, 2014 Author Share Posted April 29, 2014 Extrude the circle To the top face as shown. Be sure to put it to Join as Inventor will automatically assume you want to Cut. Quote Link to comment Share on other sites More sharing options...

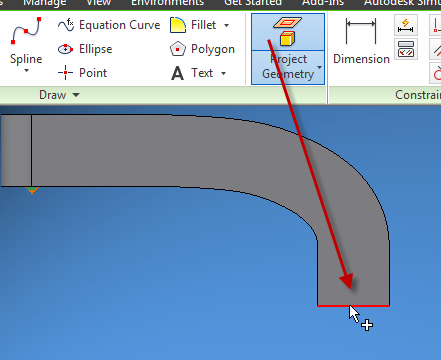

JD Mather Posted April 29, 2014 Author Share Posted April 29, 2014 Start a New Sketch on the XY plane Project Geometry the edge shown. Hit F7 on the keyboard. What happened? Hit it a couple of more times. Rotate the part around a little bit and hit F7 a couple more times. Quote Link to comment Share on other sites More sharing options...
JD Mather Posted April 29, 2014 Author Share Posted April 29, 2014 (edited) Add three more lines - watching that Inventor automatically adds perpendicular or vertical or horizontal constraints as you go. Dimension as shown. Extrude midplane a distance of 180mm. (Note: when you want to Extrude you can simply hit the e key on the keyboard.) Save the file. Edited April 29, 2014 by JD Mather Quote Link to comment Share on other sites More sharing options...

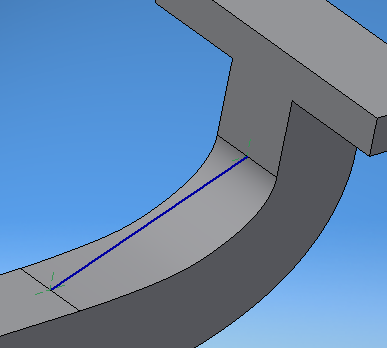

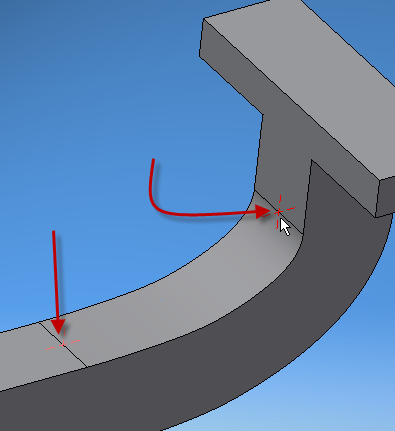

JD Mather Posted May 2, 2014 Author Share Posted May 2, 2014 Start a new sketch on the XY Plane. Project Geometry the two points shown (you can either select endpoints or the edge lines themselves) (Tip: You should have Shaded with Edges turned on ). Connect these two points with a line. Finish sketch and save. Quote Link to comment Share on other sites More sharing options...

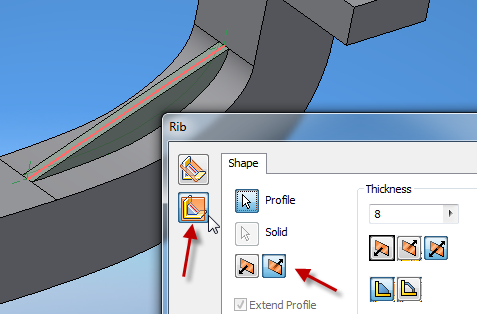

JD Mather Posted May 2, 2014 Author Share Posted May 2, 2014 Start the Rib command and set the parameters as shown. Note that we can create a Rib feature with an open profile (single line in this case). Quote Link to comment Share on other sites More sharing options...
