How I can drwa assymbely drwaing

[wanted90]

Hi



Could please help me to drwa this one



http://store1.up-00.com/2014-03/1394284002931.png

[JD Mather]

Of course more information is needed.

2D views?

2D isometric?

or 3D?



Attach the dwg file here of what you have attempted so far.

[ReMark]

Before we get too far down the road what program will you be using? AutoCAD or Inventor? It makes a difference.

[wanted90]

Hi we used 2007 ..

teacher said first draw 2D then convert that to 3d then assemble can please help me steps of doing that ..

[JD Mather]

Hi we used 2007 ..

teacher said first draw 2D....



Did the teacher show you how to draw a line? (you forgot to attach file showing what you have attempted so far)

I would start by drawing a bunch of lines and trimming them, probably 136x12.

Edited March 9, 2014 by JD Mather

[ReMark]

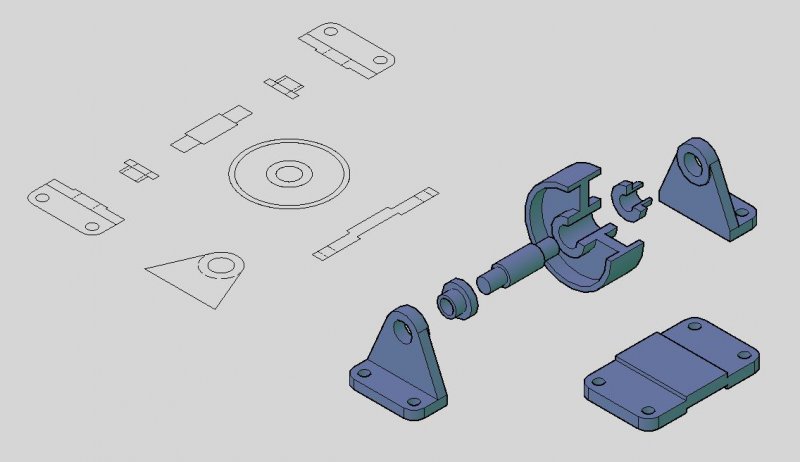

I would construct the 3D model and extract the 2D views.

[JD Mather]

Could please help me to draw this one



Have you been taught how to draw lines yet?

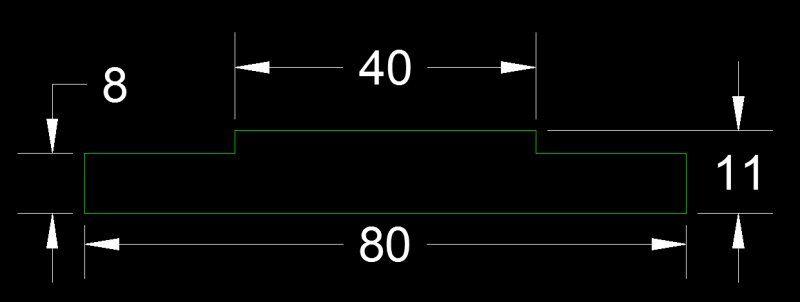

Can you try to draw these 8 lines and then attach your dwg file here?

[ReMark]

JD...no pun intended but having assisted this poster in the past you will find this to be a long, drawn out task.

[JD Mather]

It sounds like the OP is now in a class - so this should only take about 20 minutes start-to-finish once the OP starts responding to direct questions.

[ReMark]

If the OP is done in twenty minutes I'll be shocked and amazed.

[ReMark]

wanted90: Did you need a top, front, side view of each part of the assembly?

[ReMark]

Just fooling around some as I'm not feeling too good today.

Must be coming down with a cold.

[ReMark]

Either he figured it out on his own or....?



wanted90: What's up with the assembly drawing? Did you complete it?
