Offset lines create diffrent layers and specify offset distence

[121madhu]

1. In utilities need offset the line 2m. and 1.5m and 4m….etc.

Every line create the new layer (new layer name user defined ) no need color.

2. the layer name I defined as the line type

Example:- layer name: MV Electrical (---MV Electrical---MV Electrical---MV Electrical---MV Electrical---)

And how much distance between the text also user defined

No need line between text to text



Thanks

I am sorry for my poor English

[BIGAL]

Please post a example dwg or image.



To have different spacing of the text would mean that it is not a line type but text and lines, you can though create the smae linetype many times with different text spacing.



*WATER_MAIN,Water main ----W----W----W----W----W----W--

A,40,-4.0,["W",STANDARD,S=1.8,R=0.0,X=-1.8,Y=-2.0],-4

*WATER_MAIN2,Water main2 ----W----W----W----W----W----W--

A,20,-5.08,["W",STANDARD,S=1.8,R=0.0,X=-1.8,Y=-.9],-3

[121madhu]

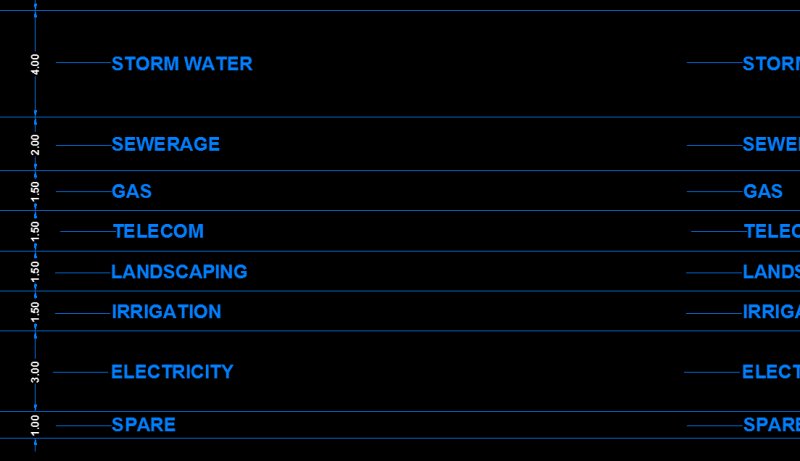

hi sir check this pic.

[satishrajdev]

TRY THIS :-



*Give offset distance in + or - according to your offset direction.

(DEFUN C:TEST (/ A B C)
 (VL-LOAD-COM)
 (WHILE
   (SETQ A (GETSTRING "\nSpecify Name of New Layer :"))
    (SETQ B (CAR (ENTSEL "\nSelect Line to Offset :")))
    (INITGET 1)
    (SETQ C (GETDIST "\nSpecify Offset Distance :"))
    (VLA-ADD (VLA-GET-LAYERS
       (VLA-GET-ACTIVEDOCUMENT (VLAX-GET-ACAD-OBJECT))
         )
         A
    )
    (VLA-OFFSET
      (VLAX-ENAME->VLA-OBJECT B)
      C
    )
    (VLA-PUT-LAYER (VLAX-ENAME->VLA-OBJECT (ENTLAST)) A)
 )
 (PRINC)
)

[Tharwat]

Satish , do you know that the getstring function with enter means not nil value ?

[satishrajdev]

Oops... i didnt realise that.... how to avoid that Tharwat

[Tharwat]

Oops... i didnt realise that.... how to avoid that Tharwat



You can add the operator (not equal to [/=] or (not (eq .....))) to avoid THAT.

[satishrajdev]

SOMETHING LIKE THIS ????



(DEFUN C:TEST (/ A B C)
 (VL-LOAD-COM)
 (WHILE
   (WHILE (OR (= A NIL) (= A ""))
     (SETQ A (GETSTRING "\nSpecify Name of New Layer :"))
   )
    (SETQ B (CAR (ENTSEL "\nSelect Line to Offset :")))
    (INITGET 1)
    (SETQ C (GETDIST "\nSpecify Offset Distance :"))
    (VLA-ADD (VLA-GET-LAYERS
	(VLA-GET-ACTIVEDOCUMENT (VLAX-GET-ACAD-OBJECT))
      )
      A
    )
    (VLA-OFFSET
      (VLAX-ENAME->VLA-OBJECT B)
      C
    )
    (VLA-PUT-LAYER (VLAX-ENAME->VLA-OBJECT (ENTLAST)) A)
 )
 (PRINC)
)

[satishrajdev]

SOMETHING LIKE THIS ????



(DEFUN C:TEST (/ A B C)
 (VL-LOAD-COM)
 (WHILE
   (WHILE (OR (= A NIL) (= A ""))
     (SETQ A (GETSTRING "\nSpecify Name of New Layer :"))
   )
    (SETQ B (CAR (ENTSEL "\nSelect Line to Offset :")))
    (INITGET 1)
    (SETQ C (GETDIST "\nSpecify Offset Distance :"))
    (VLA-ADD (VLA-GET-LAYERS
	(VLA-GET-ACTIVEDOCUMENT (VLAX-GET-ACAD-OBJECT))
      )
      A
    )
    (VLA-OFFSET
      (VLAX-ENAME->VLA-OBJECT B)
      C
    )
    (VLA-PUT-LAYER (VLAX-ENAME->VLA-OBJECT (ENTLAST)) A)
 )
 (PRINC)
)

[Tharwat]

This is enough ...

(while  (/= (setq A (getstring "\n Specify Name of New Layer :")) "")
 .....

[satishrajdev]

Thank you

[Tharwat]

Thank you



Not a problem ...

[121madhu]

thank you satish & tharwat

my request specify which side offset and continue this lisp when i press Esc.



another one is line type

[satishrajdev]

Your welcome,

But I didn't get what you said next, what you want to do exactly....specify clearly or give example

[satishrajdev]

Try this :-

(DEFUN C:TEST (/ A B C D)
 (VL-LOAD-COM)
 (WHILE (/= (SETQ A (getstring "\nSpecify Name of New Layer :")) "")
   (SETQ B (CAR (ENTSEL "\nSelect Line to Offset :")))
   (INITGET 1)
   (SETQ C (GETDIST "\nSpecify Offset Distance :"))
   (SETQ D (GETPOINT "\nSpecify Point on Side to Offset :"))
   (VLA-ADD (VLA-GET-LAYERS
          (VLA-GET-ACTIVEDOCUMENT (VLAX-GET-ACAD-OBJECT))
        )
        A
   )
   (VLA-OFFSET
     (VLAX-ENAME->VLA-OBJECT B)
     (POINTSIDE B D)
   )
   (VLA-PUT-LAYER (VLAX-ENAME->VLA-OBJECT (ENTLAST)) A)
 )
 (PRINC)
)

(DEFUN POINTSIDE (OBJ PNT / P1 PA P2)
 (SETQ    P1 (VLAX-CURVE-GETCLOSESTPOINTTO OBJ (TRANS PNT 1 0))
   PA (VLAX-CURVE-GETPARAMATPOINT OBJ P1)
 )
 (IF (EQUAL '(0.0 0.0 0.0)
        (VLAX-CURVE-GETSECONDDERIV OBJ PA)
        1e-8
     )
   (SETQ P1 (VLAX-CURVE-GETPOINTATPARAM OBJ (FIX PA))
     P2 (VLAX-CURVE-GETPOINTATPARAM OBJ (1+ (FIX PA)))
   )
   (SETQ P2 (MAPCAR '+ P1 (VLAX-CURVE-GETFIRSTDERIV OBJ PA)))
 )
 (IF (MINUSP (SIN (- (ANGLE P1 PNT) (ANGLE P2 PNT))))
   (SETQ C (- C))
   (SETQ C (+ C))
 )
)

[121madhu]

yes i am looking this its works perfect

thank you very much satish.



i am create this line-type and loaded

*TELECOMLINE,TELECOM TELECOM TELECOM TELECOM TELECOM TELECOM TELECOM

A,.1,-.1,["TELECOM",STANDARD,S=.1,R=0.0,X=-0.1,Y=-.05],-25

*SPARE_LINE,SPARE line ----SPARE----SPARE----SPARE----SPARE----SPARE----SPARE--

A,.1,-.1,["SPARE",STANDARD,S=.1,R=0.0,X=-0.1,Y=-.05],-25

*STORM WATER_LINE,STORM WATER line ----STORM WATER----STORM WATER----STORM WATER----STORM WATER----STORM WATER----STORM WATER--

A,.1,-.1,["STORM WATER",STANDARD,S=.1,R=0.0,X=-0.1,Y=-.05],-25

*MV ELECTRICAL_LINE,MV ELECTRICAL line ----MV ELECTRICAL----MV ELECTRICAL----MV ELECTRICAL----MV ELECTRICAL----MV ELECTRICAL----MV ELECTRICAL--

A,.1,-.1,["MV ELECTRICAL",STANDARD,S=.1,R=0.0,X=-0.1,Y=-.05],-25

*ELECTRICITY_LINE,ELECTRICITY line ----ELECTRICITY----ELECTRICITY----ELECTRICITY----ELECTRICITY----ELECTRICITY----ELECTRICITY--

A,.1,-.1,["ELECTRICITY",STANDARD,S=.1,R=0.0,X=-0.1,Y=-.05],-25

*LANDSCAPING_LINE,LANDSCAPING line ----LANDSCAPING----LANDSCAPING----LANDSCAPING----LANDSCAPING----LANDSCAPING----LANDSCAPING--

A,.1,-.1,["LANDSCAPING",STANDARD,S=.1,R=0.0,X=-0.1,Y=-.05],-25

*IRRIGATION_LINE,IRRIGATION line ----IRRIGATION----IRRIGATION----IRRIGATION----IRRIGATION----IRRIGATION----IRRIGATION--

A,.1,-.1,["IRRIGATION",STANDARD,S=.1,R=0.0,X=-0.1,Y=-.05],-25



example:- when i offset line

layer name:- TELECOM

so my line type in layer also telecom its possible or not

[satishrajdev]

Have you created your linetype of your own...if yes then where have you save that....

[BIGAL]

Just need to add this line as well



(VLA-PUT-LINETYPE (VLAX-ENAME->VLA-OBJECT (ENTLAST)) A)

[121madhu]

Have you created your linetype of your own...if yes then where have you save that....



yes and save my desktop name ma.lin





(VLA-PUT-LINETYPE (VLAX-ENAME->VLA-OBJECT (ENTLAST)) A)



error massage coming

:; error: Automation Error. Key not found

[satishrajdev]

Have you created *.lin file for every linetype or in that ma.lin file only all linetypes are available???



error massage coming

:; error: Automation Error. Key not found



Is it coming from my code????
