vertex overlapping

[rodrigo_sjc_sp]

I have a polyline, and this has the same vertex overlapping, how to identify the vertex overlapping and zooming in it?



Using lisp.

[Tuns]

So you have a polyline with a vertex, and you want to zoom in on this vertex?

[Lee Mac]

Do you mean that the polyline has two or more vertices located at the same position?

[LanloyLisp]

Zooming a duplicate vertex in a polyline seems not appropriate. A better approach maybe is to encircle the duplicate vertices.

[Tuns]

Or... like... use the scroll wheel.

[marko_ribar]

Please, check this post...



M.R.

[rodrigo_sjc_sp]

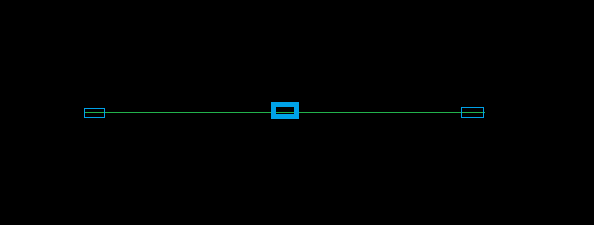

It is as if the operator autocad, to make a polyline , create a new vertex on the other another vertex or drag one over the other.



Do I just need to zoom in on this vertex.



Lee, That's it. It is as if a vertex had another about it.

[Lee Mac]

Try this simple program:

([color=BLUE]defun[/color] c:vdupes ( [color=BLUE]/[/color] e i s )
   ([color=BLUE]if[/color] ([color=BLUE]setq[/color] s ([color=BLUE]ssget[/color] '((0 . [color=MAROON]"LWPOLYLINE"[/color]))))
       ([color=BLUE]repeat[/color] ([color=BLUE]setq[/color] i ([color=BLUE]sslength[/color] s))
           ([color=BLUE]foreach[/color] x
               (LM:ListDupesFuzz
                   ([color=BLUE]vl-remove-if-not[/color] '([color=BLUE]lambda[/color] ( x ) ([color=BLUE]=[/color] 10 ([color=BLUE]car[/color] x)))
                       ([color=BLUE]setq[/color] e ([color=BLUE]entget[/color] ([color=BLUE]ssname[/color] s ([color=BLUE]setq[/color] i ([color=BLUE]1-[/color] i)))))
                   )
                   1e-8
               )
               ([color=BLUE]entmake[/color]
                   ([color=BLUE]list[/color]
                      '(0 . [color=MAROON]"CIRCLE"[/color])
                      '(8 . [color=MAROON]"Duplicate-Vertices"[/color]) [color=GREEN];; Layer[/color]
                       x
                      '(40 . 1.0) [color=GREEN];; Radius[/color]
                      '(62 . 1)   [color=GREEN];; Colour[/color]
                       ([color=BLUE]assoc[/color] 210 e)
                   )
               )
           )
       )
   )
   ([color=BLUE]princ[/color])
)

[color=GREEN];; List Duplicates with Fuzz  -  Lee Mac[/color]
[color=GREEN];; Returns a list of items appearing more than once in a supplied list[/color]

([color=BLUE]defun[/color] LM:ListDupesFuzz ( l f [color=BLUE]/[/color] c r x )
   ([color=BLUE]while[/color] l
       ([color=BLUE]setq[/color] x ([color=BLUE]car[/color] l)
             c ([color=BLUE]length[/color] l)
             l ([color=BLUE]vl-remove-if[/color] '([color=BLUE]lambda[/color] ( y ) ([color=BLUE]equal[/color] x y f)) ([color=BLUE]cdr[/color] l))
       )
       ([color=BLUE]if[/color] ([color=BLUE]<[/color] ([color=BLUE]length[/color] l) ([color=BLUE]1-[/color] c))
           ([color=BLUE]setq[/color] r ([color=BLUE]cons[/color] x r))
       )
   )
   ([color=BLUE]reverse[/color] r)
)
([color=BLUE]princ[/color])

The above will circle the duplicate vertices, with all circles generated on their own layer.

[marko_ribar]

I've changed codes in the link I provided above... Codes had many lacks - they were old and I forgot what were they all about, but now they are OK... Note that it's worth reading [EDIT] comments and from post #4 on the thread of link I provided...



When you find self-intersecting points, you can encircle them with entmake circle entities like in example Lee showed...



M.R.

[rodrigo_sjc_sp]

Thanks to all !



I used the code made ​​by Lee as a base, and ran the zoom ..

[Lee Mac]

You're welcome!

[rodrigo_sjc_sp]

Sorry for the delay here is more code shared with everybody, who wants to use in the future



(defun vs ( / e i s )

   (if (setq s (ssget  "_x" '((0 . "LWPOLYLINE"))))
       (repeat (setq i (sslength s))
           (foreach x
               (LM:ListDupesFuzz
                       (vl-remove-if-not '(lambda ( x ) (= 10 (car x)))
                       (setq e (entget (ssname s (setq i (1- i)))))
  )
                1e-8

               )

               (entmake
                   (list
                      '(0 . "CIRCLE")
                      '(8 . "Duplicate-Vertices") ;; Layer
                       x
                      '(40 . 1.0) ;; Radius
                      '(62 . 1)   ;; Colour
                       (assoc 210 e)
                   )
               )

              (setq selpline2 (ssget "_x" (list '(0 . "CIRCLE")(cons 8 "Duplicate-Vertices"))))
              (setq m 0)
              (repeat (sslength selpline2)
                      (setq pline_ent2 (ssname selpline2 m))
                      (setq lis_ent2 (entget pline_ent2))
                      (Alert "Attention. Vertex superimposed. I will show through a Zoom.")
                      (COMMAND "ZOOM" "OBJECT" pline_ent2 "")
                      (exit)
              )
          )
       )
   )
   (princ)
)
;; List Duplicates with Fuzz  -  Lee Mac
;; Returns a list of items appearing more than once in a supplied list
(defun LM:ListDupesFuzz ( l f / c r x )
   (while l
       (setq x (car l)
             c (length l)
             l (vl-remove-if '(lambda ( y ) (equal x y f)) (cdr l))
       )
       (if (< (length l) (1- c))
           (setq r (cons x r))
       )
   )
   (reverse r)
)
(princ)

[rodrigo_sjc_sp]

Thanks again everyone, this above code is based on code from Lee

[Lee Mac]

You're very welcome Rodrigo



Here is an alternative perhaps:

(defun vs ( / e i s )
   (if (setq s (ssget "_x" '((0 . "LWPOLYLINE"))))
       (repeat (setq i (sslength s))
           (foreach x
               (LM:ListDupesFuzz
                   (vl-remove-if-not '(lambda ( x ) (= 10 (car x)))
                       (setq e (entget (ssname s (setq i (1- i)))))
                   )
                   1e-8
               )
               (command "_.zoom" "_Object"
                   (entmakex
                       (list
                          '(0 . "CIRCLE")
                          '(8 . "Duplicate-Vertices") ;; Layer
                           x
                          '(40 . 1.0) ;; Radius
                          '(62 . 1)   ;; Colour
                           (assoc 210 e)
                       )
                   )
                   ""
               )
               (princ "\nPress any key to view next duplicate...")
               (grread)
           )
       )
   )
   (princ)
)

;; List Duplicates with Fuzz  -  Lee Mac
;; Returns a list of items appearing more than once in a supplied list

(defun LM:ListDupesFuzz ( l f / c r x )
   (while l
       (setq x (car l)
             c (length l)
             l (vl-remove-if '(lambda ( y ) (equal x y f)) (cdr l))
       )
       (if (< (length l) (1- c))
           (setq r (cons x r))
       )
   )
   (reverse r)
)
(princ)

[rodrigo_sjc_sp]

Thanks for the tips.

[marko_ribar]

Here is mine version (with help of LM) for encircling and cleaning checking of LWPOLYLINES... (Used subfunctions from link posted and gile's subfunctions for cleaning LWs and LM subfunctions for encircling LWs)...



M.R.

checklwpls.lsp

Edited September 20, 2013 by marko_ribar
