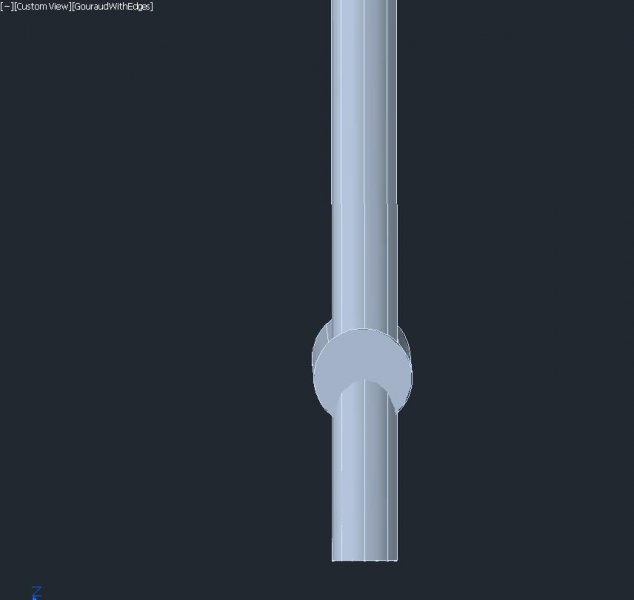

kdahn Posted July 10, 2013 Share Posted July 10, 2013 Hi, Is there away to trim the diagonal 3d solid to the top of the horizontal 3d solid in the picture. Thanks Quote Link to comment Share on other sites More sharing options...
ReMark Posted July 10, 2013 Share Posted July 10, 2013 Are the centerlines of both cylinders at the same elevation? Something looks a bit off. Quote Link to comment Share on other sites More sharing options...
nestly Posted July 10, 2013 Share Posted July 10, 2013 (edited) I would use the INTERFERE command, then SUBTRACT the "interference" object, then Separate the two halfs. Heres a demo --> ...or for 3 dollars, you can get the TRIMSPLIT app/plugin from Autodesk Exchange to automate the process. http://apps.exchange.autodesk.com/ACD/en/Home Edited July 10, 2013 by nestly Quote Link to comment Share on other sites More sharing options...
kdahn Posted July 10, 2013 Author Share Posted July 10, 2013 I would use the INTERFERE command, then SUBTRACT the "interference" object, then Separate the two halfs. Heres a demo --> ...or for 3 dollars, you can get the TRIMSPLIT app/plugin from Autodesk Exchange to automate the process. http://apps.exchange.autodesk.com/ACD/en/Home I tried this but for soe reason it doesnt detect the part of the solid that is 'inside' the other. i use the interfere command and select the bottom side of the diagonal solid and then when i window across like in your video it wont select anything. Quote Link to comment Share on other sites More sharing options...
kdahn Posted July 10, 2013 Author Share Posted July 10, 2013 thanks nestly sorted it now Quote Link to comment Share on other sites More sharing options...
