jfrank1034 Posted June 17, 2013 Posted June 17, 2013 First timer here! I have a larger cylinder (a separation vessel) sitting on top of a smaller cylinder (the neck/base of the vessel) all sitting on top of another even shorter cylinder, the concrete skid/stand. I am trying to flare the bottom of the neck outwards to mimick how these vessels are welded to sit on the concrete and also trying to flare the top of the neck outwards to make a smooth transition into the main part of the vessel. Any suggestsions? If there is a cleaner way instead of making 3 different cylinder I'm all ears also. Just getting back into AutoCAD with a new summer internship. Thanks Quote
JD Mather Posted June 17, 2013 Posted June 17, 2013 Sounds like Revolve or maybe Loft. Can you attach your dwg here (or at least a jpg image)? Quote
jfrank1034 Posted June 17, 2013 Author Posted June 17, 2013 Apollo Battery Plot.dwgHere is my drawing. In the time since my original post, I used UNION on the three cylinders and then the tops and bottoms of the neck portions flipped outward. Quote

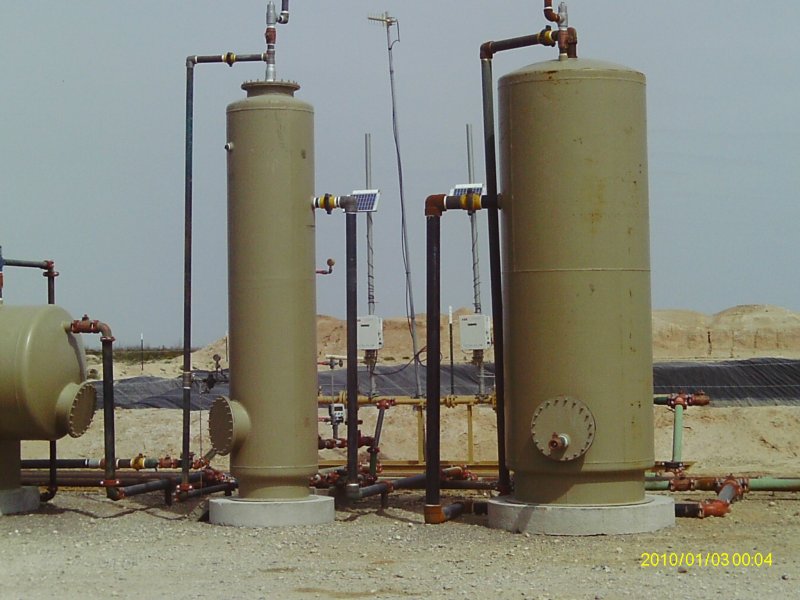

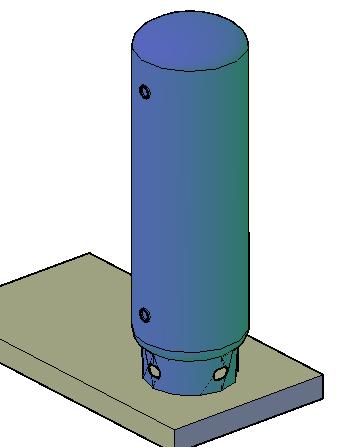

nestly Posted June 17, 2013 Posted June 17, 2013 Although not exactly what's in the drawing, is this the effect you're looking for? Quote
jfrank1034 Posted June 17, 2013 Author Posted June 17, 2013 Yeah I guess thats pretty much what I'm looking for. Might not be as fully rounded as I initially thought. Quote

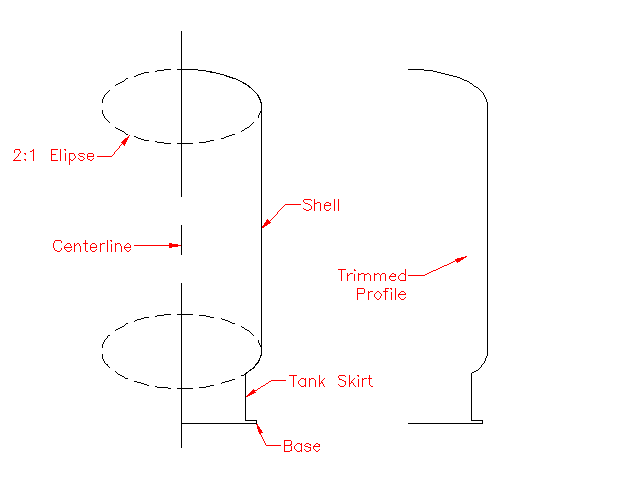

nestly Posted June 17, 2013 Posted June 17, 2013 I normally make generic pressure tanks by creating a 2D profile and REVOLVING about the centerline. Note: The REVOLVE shown above actually creates a surface, not a solid. Use SURFSCULPT to turn it into a solid if desired, or use arc segments instead of ellipses and turn the profile into a polyline prior to REVOLVE. Quote
jfrank1034 Posted June 18, 2013 Author Posted June 18, 2013 Awesome! That looks great, thanks. I'm still re-getting the hang of CAD and would have never thought to do it that way. Quote
nestly Posted June 18, 2013 Posted June 18, 2013 Glad it helped. What's cool about AutoCAD is the many ways to get the intended result. Quote
jfrank1034 Posted June 18, 2013 Author Posted June 18, 2013 Right, I remember and am discovering again just by this example and reading other threads of the many ways of doing things. But, I tried your method of revolving and then tried to create a solid but it said no watertight volume was found. Should I try the arc segments and polyline method? Quote
nestly Posted June 18, 2013 Posted June 18, 2013 If it's not watertight, then there was a gap somewhere in your 2D profile. Make sure all the segments extend all the way to the segment they join to, including making sure the profile extends all the way to the revolve axis. Post the drawing with your 2D profile, if you have trouble finding the gap. Use whichever works best for you, but the same will apply to a polyline made of line and arc segments. With the polyline method however, you'll know before revolving because you won't be able to make the profile into a single polyline unless all the endpoints are coincident. Quote
SLW210 Posted June 18, 2013 Posted June 18, 2013 PELLIPSE = 1 will create a polyline representation of Ellipse. Quote
jfrank1034 Posted June 18, 2013 Author Posted June 18, 2013 Got it figured out. I think something happened when I trimmed the elipses. Arc segments worked better. Thanks Quote
nestly Posted June 18, 2013 Posted June 18, 2013 PELLIPSE = 1 will create a polyline representation of Ellipse. Good tip! I never remember that one. Quote
