Getting Transformation Grid scale factor settings

[bzz]

Hi, i am trying to retrieve a user grid scale factor value using either autolisp or VBA. can anyone help please?



Thanks,

bzz.

[Tharwat]

This ?



(getvar 'gridunit)

[marko_ribar]

I think yes, the same :



(defun c:grids ( / g )
 (setq g (getvar 'gridunit))
 (setq g
   (cond
     ((getpoint (strcat "\nSpecify new gridunit variable <" (rtos (car g)) "," (rtos (cadr g)) "> : ")))
     (g)
   )
 )
 (if (caddr g) (setq g (list (car g) (cadr g))))
 (setvar 'gridunit g)
 (princ)
)

[bzz]

Thanks marko_ribar and Tharwat

but gridunit sys variable specifies grid spacing for the current viewport. I am trying to get a user-defined Grid scale that is set from drawing settings window in transformation tab.

[Tharwat]

If you want to set the grid scale manually , how would you set it ?



I couldn't find transformation tab in the Drawing Settings Window in my Autocad 2014

[bzz]

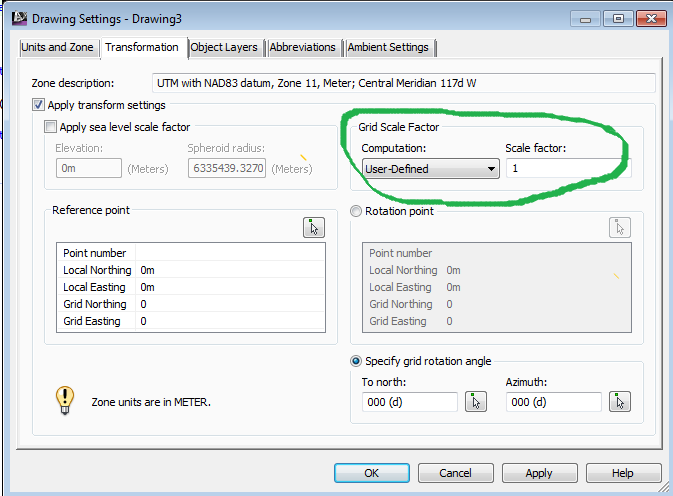

on the command line I type in "editdrawingsettings" and then click on transormation tab and set the user-defined grid scale factor value

[Tharwat]

on the command line I type in "editdrawingsettings" and then click on transormation tab and set the user-defined grid scale factor value

That option might be available only in Civil cad as it is shown into your profile , can you upload a snapshot of that dialog ?

[bzz]

This is only available in civil3D

[marko_ribar]

I would try with command sysvdlg and type there *grid*, and if there is sysvar for grid scale factor, then it should be simple to use (getvar "???") where ??? is that name of sysvar...

[Tharwat]

This is only available in civil3D



Unfortunately I do not either have or work with Civil3D but we have lots of nice guys in this forum using that Cad version and they are very helpful guys , so just wait and you should have your question answered in no time .

[bzz]

Thanks marko_ribar, unfortunatelly all the sysvariables about the grid didn't help

[bzz]

thanks Tharwat.
