how to make autocad drawing angles automatically

[germacran]

hi

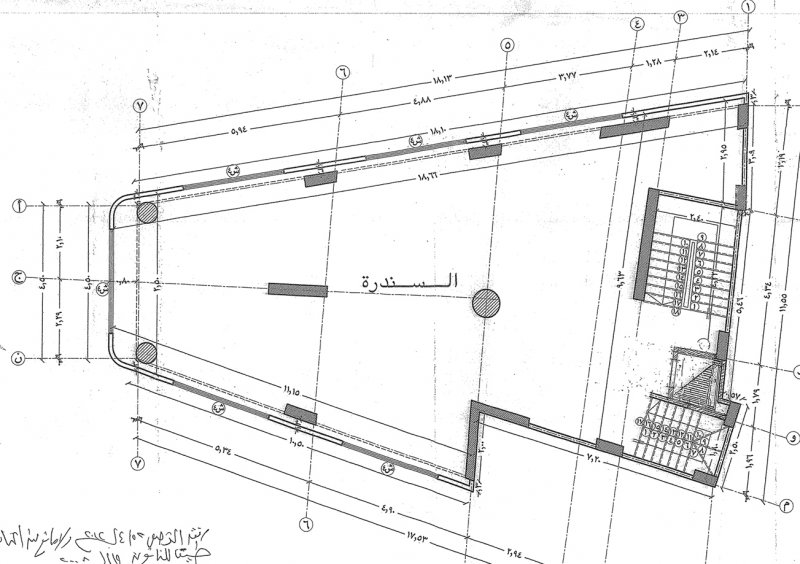

how can i draw this plan without knowing the angles for each wall?

when i draw , the last wall is incorrect

can autocad adjust the angles of walls for me after typing the length of the walls ?

thanks a lot



[ReMark]

AutoCAD cannot automatically adjust the angles of the walls as you draw them. The only possible solution I can think of might require using constraints and I'm not 100% that will work either.

[JD Mather]

If there is enough other information AutoCAD will automatically adjust the angles if Parametric Constraints and Dimensions are used.

I will try to post an example in the next few days.

germacran - you might give it a try yourself - see the Parameters tab.

[eldon]

I would doubt that, even with constraints, anyone could draw that plan.



To me, it is a few dimensions short of a plan drawing.

[germacran]

i tried many times but no correct results

[BIGAL]

You could use snapang but you have to change it every time for a new angle.

[eldon]

You could use snapang but you have to change it every time for a new angle.



If you knew the angles
