Hello All,



I'm back with more questions.

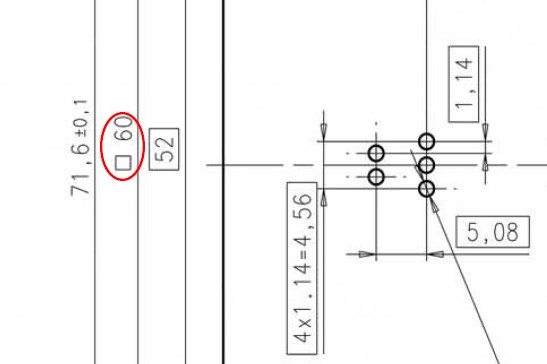

I have a drawing showing a Square Symbol in front of a dimension. Don't know what it means.



Thank you in advance.



KenJG



AutoCad2009

Unknown Symbol.jpg

SLW210 Grand Master

SLW210

Posted
Posted

It means Square, in the case shown it would be 60 on all four sides. It is used for square shapes the same as the Diameter symbol is used for round.
