Stanco Posted February 27, 2013 Posted February 27, 2013 Hy guys, Help me with this pls. I need that all that is under the arch to disappear. Thank you DE TERMINAT SOLID.dwg Quote
ReMark Posted February 27, 2013 Posted February 27, 2013 Create an arc. Extrude the arc (now you have a Surface). Use the SLICE command with the SURFACE option to slice the object that passes through your arch. Erase the portion you don't want after doing the above. Done. Quote

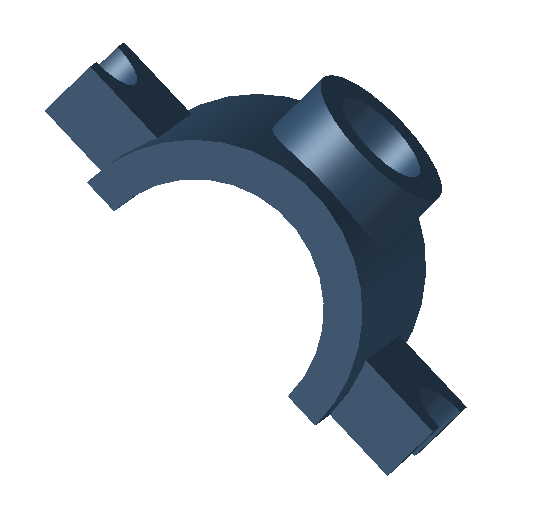

ReMark Posted February 27, 2013 Posted February 27, 2013 Is this the result you were looking for? Quote

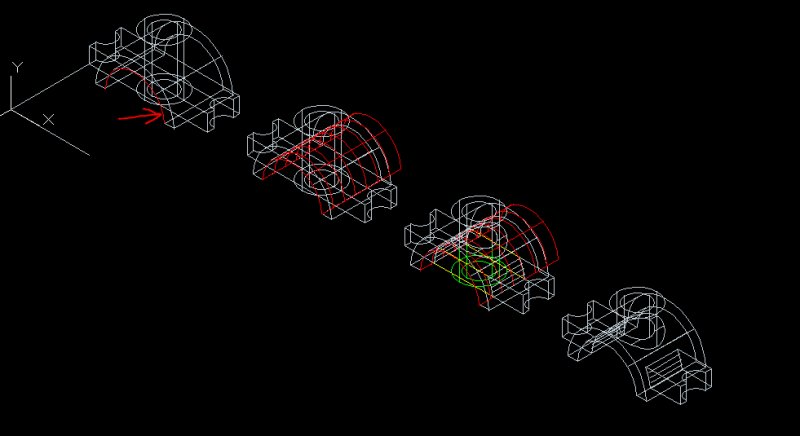

ReMark Posted February 27, 2013 Posted February 27, 2013 For anyone who did not quite understand the instructions. Visual style: 2Dwireframe You first have to create an arc (note red arrow) that will then be extruded to form a surface used to slice away the geometry we don't want. Quote

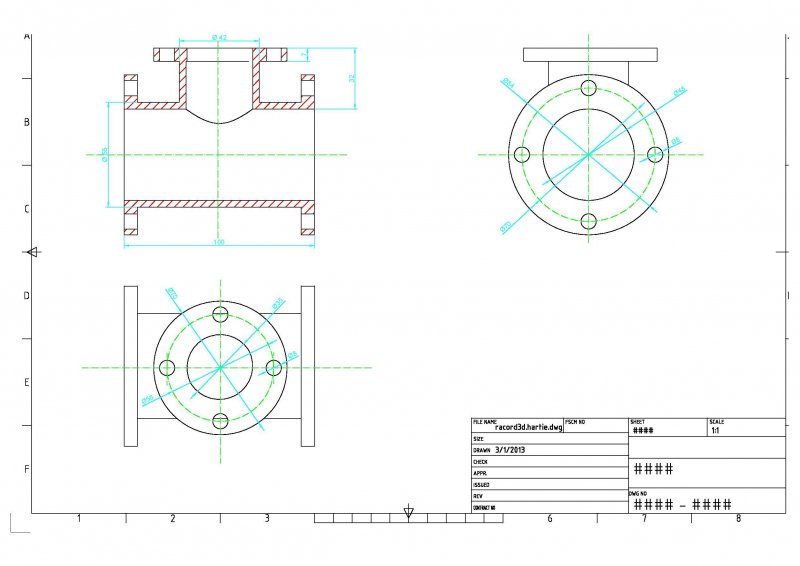

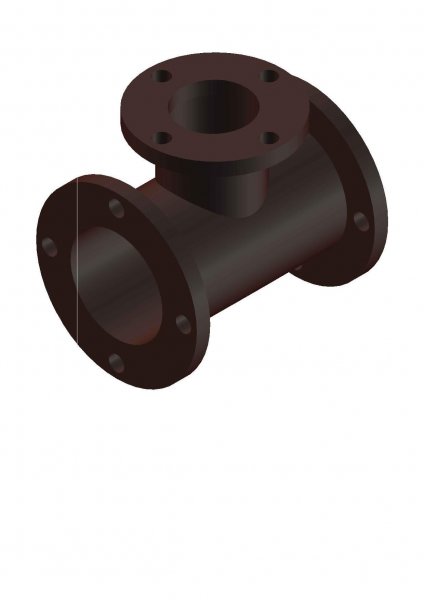

Stanco Posted February 27, 2013 Author Posted February 27, 2013 This is after presspulled the interior box in the cylinder, and the cylinder up in the arch. Thanks again ReMark DE TERMINAT SOLID-Layout1.pdf Quote
JD Mather Posted February 27, 2013 Posted February 27, 2013 Looks like you need to presspull the hole through the top. Quote
Stanco Posted March 1, 2013 Author Posted March 1, 2013 This is good training for this comands too: Quote
