Jozi68 Posted February 22, 2013 Share Posted February 22, 2013 I have a drawing with thousands of Polylines. They all have a "Height" property (that i've added with some import command a while ago). Now I need a small procedure to take the value in the "Height" property, and put it in the "Elevation" property. I have no idea where to start. Quote Link to comment Share on other sites More sharing options...
marko_ribar Posted February 22, 2013 Share Posted February 22, 2013 I don't know ab "Height" property... Maybe you're thinking ab "Thickness"... Quote Link to comment Share on other sites More sharing options...
Jozi68 Posted February 22, 2013 Author Share Posted February 22, 2013 No, it is definitely "Height". It is a custom property, I've added it myself. Quote Link to comment Share on other sites More sharing options...
MSasu Posted February 22, 2013 Share Posted February 22, 2013 If is not about properties that were specific to Civil 3D entities, but of Thickness (as Marko observed first) and Elevation properties, then those were stored under DXF codes 39, respectively 38 into the associated list of the entity. then will have to Quote Link to comment Share on other sites More sharing options...
Jozi68 Posted February 22, 2013 Author Share Posted February 22, 2013 @MSasu, I don't think I understand what you just said... Quote Link to comment Share on other sites More sharing options...
MSasu Posted February 22, 2013 Share Posted February 22, 2013 To clarify, any entity is stored into drawing database as a list of features, named associated list, where the data is sorted by pairs/sets of keys and values; the keys were named DXF codes. I noticed that you are saying that the aforementioned Height property is a custom one. How did you proceeded when defined/added it? Quote Link to comment Share on other sites More sharing options...

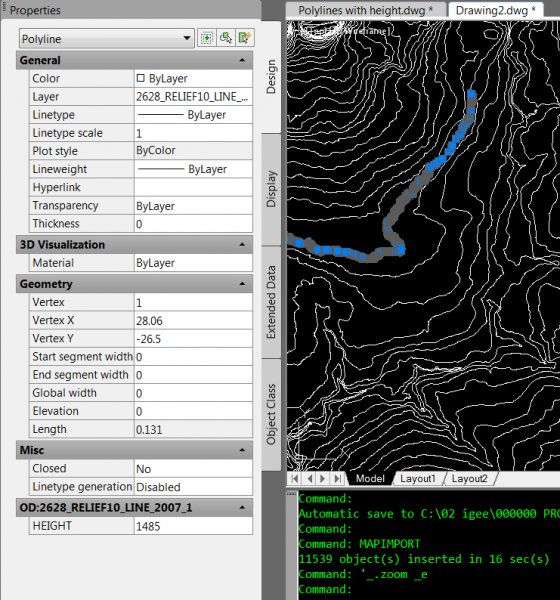

Jozi68 Posted February 22, 2013 Author Share Posted February 22, 2013 MAPIMPORT Select a shp file Click the speedbutton in the Data column Click "Create object data" Click select Fields... Uncheck all except "Height" click OK click OK The result: Thousands of polylines, each with a height property. NOW, how do I get the value of the height property into the elevation property? Quote Link to comment Share on other sites More sharing options...
MSasu Posted February 22, 2013 Share Posted February 22, 2013 So, it is about something specific to Civil 3D pack. Can you load here what return the code below? Paste it into your command line and select one of those polylines, preferable with a small number of vertexes: (entget (car (entsel))) Quote Link to comment Share on other sites More sharing options...
Jozi68 Posted February 22, 2013 Author Share Posted February 22, 2013 Select object: ((-1 . ) (0 . "LWPOLYLINE") (5 . "E9CC") (102 . "{ACAD_XDICTIONARY") (360 . ) (102 . "}") (330 . ) (100 . "AcDbEntity") (67 . 0) (410 . "Model") (8 . "2628_RELIEF10_LINE_2007_1") (100 . "AcDbPolyline") (90 . 14) (70 . 0) (43 . 0.0) (38 . 0.0) (39 . 0.0) (10 28.7529 -26.0) (40 . 0.0) (41 . 0.0) (42 . 0.0) (91 . 0) (10 28.7528 -26.0) (40 . 0.0) (41 . 0.0) (42 . 0.0) (91 . 0) (10 28.7526 -26.0001) (40 . 0.0) (41 . 0.0) (42 . 0.0) (91 . 0) (10 28.7524 -26.0001) (40 . 0.0) (41 . 0.0) (42 . 0.0) (91 . 0) (10 28.7521 -26.0) (40 . 0.0) (41 . 0.0) (42 . 0.0) (91 . 0) (10 28.7519 -26.0) (40 . 0.0) (41 . 0.0) (42 . 0.0) (91 . 0) (10 28.7517 -26.0001) (40 . 0.0) (41 . 0.0) (42 . 0.0) (91 . 0) (10 28.7515 -26.0001) (40 . 0.0) (41 . 0.0) (42 . 0.0) (91 . 0) (10 28.7513 -26.0001) (40 . 0.0) (41 . 0.0) (42 . 0.0) (91 . 0) (10 28.7513 -26.0002) (40 . 0.0) (41 . 0.0) (42 . 0.0) (91 . 0) (10 28.7512 -26.0002) (40 . 0.0) (41 . 0.0) (42 . 0.0) (91 . 0) (10 28.751 -26.0001) (40 . 0.0) (41 . 0.0) (42 . 0.0) (91 . 0) (10 28.7508 -26.0001) (40 . 0.0) (41 . 0.0) (42 . 0.0) (91 . 0) (10 28.7505 -26.0) (40 . 0.0) (41 . 0.0) (42 . 0.0) (91 . 0) (210 0.0 0.0 1.0)) I'm assuming it would be possible to write a simple LISP routine that loops through all polylines, takes the Height property, and updates the elevation property. Only problem is: I've never written anything in LISP. Quote Link to comment Share on other sites More sharing options...
marko_ribar Posted February 22, 2013 Share Posted February 22, 2013 It looks that data ab "Height" property is hidden... In above posted DXF codes, we can't see height of "LWPOLYLINE" entity... So perhaps, try through VLISP Activex... (vl-load-com) (setq pl (vlax-ename->vla-object (car (entsel)))) (vlax-dump-object pl T) Type this, line by line in Command: prompt, select polyline after (setq pl (vlax-ename->vla-object (car (entsel)))) and copy+paste here output from last line (vlax-dump-object pl T) Quote Link to comment Share on other sites More sharing options...
Jozi68 Posted February 22, 2013 Author Share Posted February 22, 2013 Command: (vlax-dump-object pl T) ; IAcadLWPolyline2: AutoCAD Lightweight Polyline Interface ; Property values: ; Application (RO) = # ; Area (RO) = 1811.32 ; Closed = 0 ; ConstantWidth = 0.0 ; Coordinate = ...Indexed contents not shown... ; Coordinates = (-24729.8 -2.87722e+006 -24742.3 -2.87722e+006 -24761.3 -2.87722e+006 ... ) ; Document (RO) = # ; Elevation = 0.0 ; EntityTransparency = "ByLayer" ; Handle (RO) = "18BB8" ; HasExtensionDictionary (RO) = -1 ; Hyperlinks (RO) = # ; Layer = "2628_RELIEF10_LINE_2007_1" ; Length (RO) = 245.725 ; Linetype = "ByLayer" ; LinetypeGeneration = 0 ; LinetypeScale = 1.0 ; Lineweight = -1 ; Material = "ByLayer" ; Normal = (0.0 0.0 1.0) ; ObjectID (RO) = 136 ; ObjectID32 (RO) = 136 ; ObjectName (RO) = "AcDbPolyline" ; OwnerID (RO) = 137 ; OwnerID32 (RO) = 137 ; PlotStyleName = "ByLayer" ; Thickness = 0.0 ; TrueColor = # ; Visible = -1 ; Methods supported: ; AddVertex (2) ; ArrayPolar (3) ; ArrayRectangular (6) ; Copy () ; Delete () ; Explode () ; GetBoundingBox (2) ; GetBulge (1) ; GetExtensionDictionary () ; GetWidth (3) ; GetXData (3) ; Highlight (1) ; IntersectWith (2) ; Mirror (2) ; Mirror3D (3) ; Move (2) ; Offset (1) ; Rotate (2) ; Rotate3D (3) ; ScaleEntity (2) ; SetBulge (2) ; SetWidth (3) ; SetXData (2) ; TransformBy (1) ; Update () T Quote Link to comment Share on other sites More sharing options...
marko_ribar Posted February 22, 2013 Share Posted February 22, 2013 Neither here, we can't see "Height" property... So, do you know how to retrieve polyline "Height" value? It seems that this new property is hidden from ordinary entity data... We can't help you, if we can't obtain this new property value... Quote Link to comment Share on other sites More sharing options...
marko_ribar Posted February 22, 2013 Share Posted February 22, 2013 Now try this : (entget (car (entsel)) '("HEIGHT")) Also pick polyline and also copy+paste here output... Quote Link to comment Share on other sites More sharing options...
BIGAL Posted February 22, 2013 Share Posted February 22, 2013 (edited) Because its come from a shp file it probably has the value of height in the extended data hence does not display just like aecc objects will say a "surface" and its "name" but there is more info. Not sure dont play with shp leave that to those who know how but can you not as part of import make the elevation = height hence true 3d plines. Is the question to draw more objects at this pline implied elevation ? Edited February 25, 2013 by BIGAL Quote Link to comment Share on other sites More sharing options...
Jozi68 Posted February 24, 2013 Author Share Posted February 24, 2013 Command: (entget (car (entsel)) '("HEIGHT")) Select object: ((-1 . ) (0 . "LWPOLYLINE") (5 . "18BB8") (102 . "{ACAD_XDICTIONARY") (360 . ) (102 . "}") (330 . ) (100 . "AcDbEntity") (67 . 0) (410 . "Model") (8 . "2628_RELIEF10_LINE_2007_1") (100 . "AcDbPolyline") (90 . 14) (70 . 0) (43 . 0.0) (38 . 0.0) (39 . 0.0) (10 -24729.8 -2.87722e+006) (40 . 0.0) (41 . 0.0) (42 . 0.0) (91 . 0) (10 -24742.3 -2.87722e+006) (40 . 0.0) (41 . 0.0) (42 . 0.0) (91 . 0) (10 -24761.3 -2.87722e+006) (40 . 0.0) (41 . 0.0) (42 . 0.0) (91 . 0) (10 -24782.0 -2.87722e+006) (40 . 0.0) (41 . 0.0) (42 . 0.0) (91 . 0) (10 -24813.4 -2.87722e+006) (40 . 0.0) (41 . 0.0) (42 . 0.0) (91 . 0) (10 -24834.7 -2.87722e+006) (40 . 0.0) (41 . 0.0) (42 . 0.0) (91 . 0) (10 -24850.2 -2.87722e+006) (40 . 0.0) (41 . 0.0) (42 . 0.0) (91 . 0) (10 -24872.3 -2.87723e+006) (40 . 0.0) (41 . 0.0) (42 . 0.0) (91 . 0) (10 -24889.9 -2.87723e+006) (40 . 0.0) (41 . 0.0) (42 . 0.0) (91 . 0) (10 -24896.1 -2.87723e+006) (40 . 0.0) (41 . 0.0) (42 . 0.0) (91 . 0) (10 -24906.2 -2.87723e+006) (40 . 0.0) (41 . 0.0) (42 . 0.0) (91 . 0) (10 -24928.2 -2.87723e+006) (40 . 0.0) (41 . 0.0) (42 . 0.0) (91 . 0) (10 -24939.9 -2.87723e+006) (40 . 0.0) (41 . 0.0) (42 . 0.0) (91 . 0) (10 -24970.9 -2.87722e+006) (40 . 0.0) (41 . 0.0) (42 . 0.0) (91 . 0) (210 0.0 0.0 1.0)) Quote Link to comment Share on other sites More sharing options...
marko_ribar Posted February 24, 2013 Share Posted February 24, 2013 As I can see, there are no registered app "HEIGHT" to this entity... Still, try to check for all registered APPIDS in your DWG, so execute this code and copy+paste here results : (defun c:appids ( / app ) (setq app (tblnext "APPID" T)) (princ app) (while (setq app (tblnext "APPID")) (terpri) (princ app) ) (princ) ) Quote Link to comment Share on other sites More sharing options...

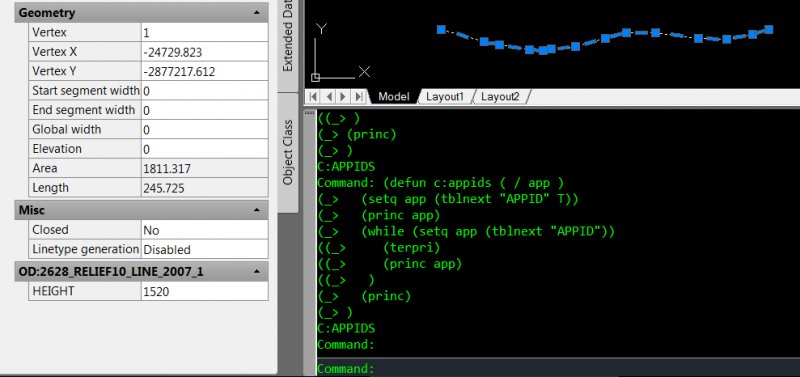

Jozi68 Posted February 24, 2013 Author Share Posted February 24, 2013 Hi Marko, I ran this but get no results. Maybe I'm doing it wrong. Quote Link to comment Share on other sites More sharing options...
marko_ribar Posted February 24, 2013 Share Posted February 24, 2013 After you load it with as you did copying+pasting code to CAD's interface, or saving code as *.lsp file and load it with APPLOAD, you'll notice that last prompt as shown in your picture is prompt C:APPIDS... This means that code was loaded into memory as C: (command function)... You'll have to type at prompt Command: APPIDS and hit ENTER... Then, your text screen (this what you showed with picture) will show info witch I want you to copy+paste here, like you did earlier in your replies... Quote Link to comment Share on other sites More sharing options...
Jozi68 Posted February 25, 2013 Author Share Posted February 25, 2013 Got it. Here are my results: Command: APPIDS ((0 . APPID) (2 . ACAD) (70 . 0)) ((0 . APPID) (2 . ACAD_PSEXT) (70 . 0)) ((0 . APPID) (2 . AcadAnnoPO) (70 . 0)) ((0 . APPID) (2 . AcadAnnotative) (70 . 0)) ((0 . APPID) (2 . ACAD_DSTYLE_DIMJAG) (70 . 0)) ((0 . APPID) (2 . ACAD_DSTYLE_DIMTALN) (70 . 0)) ((0 . APPID) (2 . ACAD_MLEADERVER) (70 . 0)) ((0 . APPID) (2 . ACAD_EXEMPT_FROM_CAD_STANDARDS) (70 . 0)) ((0 . APPID) (2 . AcMapDMDisplayStyleRegapp) (70 . 0)) ((0 . APPID) (2 . AeccLand70) (70 . 0)) ((0 . APPID) (2 . AeccUiQTO) (70 . 0)) ((0 . APPID) (2 . AeccUiQTOEntityPayItemData) (70 . 0)) ((0 . APPID) (2 . AeccUiQTOPayItemFilePath) (70 . 0)) ((0 . APPID) (2 . AeccUiQTOPayItemCategoryFilePath) (70 . 0)) ((0 . APPID) (2 . AeccUiQTOFreqUsedPayItemsList) (70 . 0)) ((0 . APPID) (2 . AeccUiQTOPayItemFormulaFilePath) (70 . 0)) ((0 . APPID) (2 . AeccUiQTOPayItemSpecBookVersionFloridaDOT) (70 . 0)) ((0 . APPID) (2 . AeccUiQTOPayItemFormulaParameters) (70 . 0)) ((0 . APPID) (2 . AeccUiQTOPayItemFormulaExpression) (70 . 0)) ((0 . APPID) (2 . AeccUiQTOTransportDesignerFileFloridaDOT) (70 . 0)) ((0 . APPID) (2 . AeccUiModel) (70 . 0)) ((0 . APPID) (2 . ADE) (70 . 0)) ((0 . APPID) (2 . MapGWS) (70 . 0)) ((0 . APPID) (2 . DCO15) (70 . 0)) ((0 . APPID) (2 . AcAecLayerStandard) (70 . 0)) ((0 . APPID) (2 . AcDbBlockRepETag) (70 . 0)) ((0 . APPID) (2 . AcDbDynamicBlockGUID) (70 . 0)) ((0 . APPID) (2 . ACAUTHENVIRON) (70 . 0)) ((0 . APPID) (2 . AcDbDynamicBlockTrueName) (70 . 0)) ((0 . APPID) (2 . AeccLand80) (70 . 0)) ((0 . APPID) (2 . AeccUiMgr) (70 . 0)) ((0 . APPID) (2 . AeccLand90) (70 . 0)) ((0 . APPID) (2 . ACAD_NAV_VCDISPLAY) (70 . 0)) ((0 . APPID) (2 . AcMap_E615D161-C9D7-11d3-839F-0060B0FB6B57) (70 . 0)) ((0 . APPID) (2 . IRD) (70 . 0)) ((0 . APPID) (2 . ADE_PROJECTION) (70 . 0)) ((0 . APPID) (2 . AcPublishKml) (70 . 0)) ((0 . APPID) (2 . AcCmTransparency) (70 . 0)) Quote Link to comment Share on other sites More sharing options...
BIGAL Posted February 25, 2013 Share Posted February 25, 2013 Maybe try this see if xdata exists (setq adict (dictsearch (namedobjdict) "ACAD_XDICTIONARY"))) then maybe entity Entity name: 7ffff2f59f0 Can you post a dwg with one pline wblock out maybe. Quote Link to comment Share on other sites More sharing options...
