Complex linetype shape vs text spacing

[xrunnurx23]

I have created a custom linetype using a shape & also added text. I have tried countless combinations to have a different spacing for the text, without affecting the frequency of the shape.



I want there to be no space between the shape, just repeating.

But I want the text to display only once for every 4 times the shape repeats.

Is this at all possible?



Every time I change the text spacing, I get huge gaps in the between the shape and it seems that their spacing cannot be independently controlled.



Please help! Thanks!

[ReMark]

Post an image of what you are trying to achieve.

[xrunnurx23]

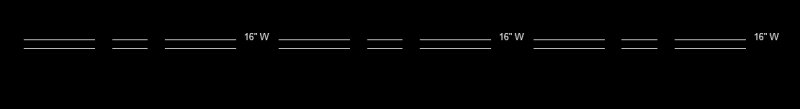

Basically I am trying to achieve the shape appearing like the first line and the text to appear like the second line. I am having trouble achieving both in 1 linetype.

[ReMark]

Is this what you are hoping to achieve?

[xrunnurx23]

No, I would like the shape to reoccur 4x for every one time that the text appears.

Also, I do not want a space in between the shape, I want the long dash to start and end with no gap, hence making the long dash twice as long as the original shape.



From the picture I sent, I would like the line to look exactly like it does in the top case, but the text to appear less frequently.



I want a different spacing for the shape than I do for the text within the same line.



Sorry if that is confusing.

[ReMark]

Thanks for clarifying that.

[eldon]

Perhaps you could set up two linetypes, one with the shape and one with the text, and combine them using a Multiline

[xrunnurx23]

Seems a bit redundant I think....

I was hoping to just use 1 linetype to achieve both.

[eldon]

I can only wish you the best of luck with your endeavours. Keep us posted if you succeed.



If you posted the linetype definition that you have so far achieved, then someone might spot the way forward.

[welldriller]

[ATTACH]40518[/ATTACH]

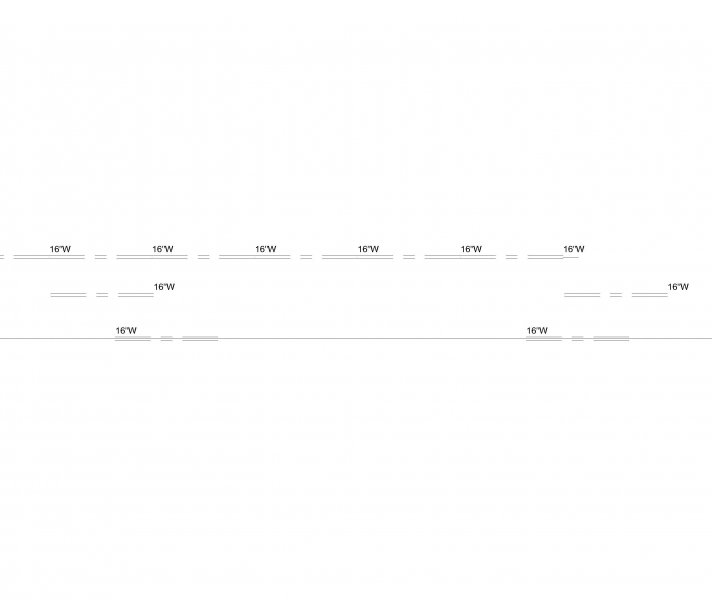

Is this wha you wanted ?
