Thanks again Lee Mac!! But how to find crossing points then?

  • 5 months later...
  • Replies 31
  • Created
  • Last Reply

Top Posters In This Topic

  • phoenix2009

    10

  • Lee Mac

    7

  • irneb

    5

  • zamri_uut

    3

Top Posters In This Topic

Posted Images

Posted

zami: Your request is somewhat lacking in detail. Could you elaborate further?

Posted
Sorry Mr. Lee Mac, please help me !



Which code post are you referring to (#15 / #16 / #20)?

Posted

Sorry for my english... Post #16.. The line is crossing.. Thanks.

Posted

Try this modification:

([color=BLUE]defun[/color] c:test ( [color=BLUE]/[/color] a1 d1 d2 d3 e1 e2 p1 p2 sp xl zv )
   ([color=BLUE]if[/color]
       ([color=BLUE]and[/color]
           ([color=BLUE]setq[/color] e1 (LM:ssget [color=MAROON]"\nSelect 1st Polyline: "[/color] '([color=MAROON]"_+.:E:S"[/color] ((0 . [color=MAROON]"LWPOLYLINE"[/color])))))
           ([color=BLUE]setq[/color] e2 (LM:ssget [color=MAROON]"\nSelect 2nd Polyline: "[/color] '([color=MAROON]"_+.:E:S"[/color] ((0 . [color=MAROON]"LWPOLYLINE"[/color])))))
           ([color=BLUE]progn[/color]
               ([color=BLUE]initget[/color] 6)
               ([color=BLUE]setq[/color] d1 ([color=BLUE]getdist[/color]  [color=MAROON]"\nSpecify Step Distance: "[/color]))
           )
       )
       ([color=BLUE]progn[/color]
           ([color=BLUE]setq[/color] d3 ([color=BLUE]-[/color] d1)
                 e1 ([color=BLUE]ssname[/color] e1 0)
                 e2 ([color=BLUE]vlax-ename->vla-object[/color] ([color=BLUE]ssname[/color] e2 0))
                 d2 ([color=BLUE]vlax-curve-getdistatparam[/color] e1 ([color=BLUE]vlax-curve-getendparam[/color] e1))
                 zv ([color=BLUE]trans[/color] '(0.0 0.0 1.0) 1 0 [color=BLUE]t[/color])
                 sp ([color=BLUE]vlax-get-property[/color] ([color=BLUE]vla-get-activedocument[/color] ([color=BLUE]vlax-get-acad-object[/color]))
                        ([color=BLUE]if[/color] ([color=BLUE]=[/color] 1 ([color=BLUE]getvar[/color] 'cvport)) 'paperspace 'modelspace)
                    )
           )
           ([color=BLUE]while[/color] ([color=BLUE]<=[/color] ([color=BLUE]setq[/color] d3 ([color=BLUE]+[/color] d3 d1)) d2)
               ([color=BLUE]setq[/color] p1 ([color=BLUE]vlax-curve-getpointatdist[/color] e1 d3)
                     a1 ([color=BLUE]-[/color] ([color=BLUE]angle[/color] '(0.0 0.0) ([color=BLUE]trans[/color] ([color=BLUE]vlax-curve-getfirstderiv[/color] e1 ([color=BLUE]vlax-curve-getparamatpoint[/color] e1 p1)) 0 1)) ([color=BLUE]/[/color] [color=BLUE]pi[/color] 2.0))
                     xl ([color=BLUE]vlax-invoke[/color] sp 'addxline p1 ([color=BLUE]trans[/color] ([color=BLUE]polar[/color] ([color=BLUE]trans[/color] p1 0 1) a1 1.0) 1 0))
               )
               ([color=BLUE]if[/color]
                   ([color=BLUE]setq[/color] p2
                       ([color=BLUE]car[/color]
                           ([color=BLUE]vl-sort[/color] (LM:group3 ([color=BLUE]vlax-invoke[/color] xl 'intersectwith e2 [color=BLUE]acextendthisentity[/color]))
                              '([color=BLUE]lambda[/color] ( a b ) ([color=BLUE]<[/color] ([color=BLUE]distance[/color] a p1) ([color=BLUE]distance[/color] b p1)))
                           )
                       )
                   )
                   ([color=BLUE]progn[/color]
                       ([color=BLUE]entmake[/color] ([color=BLUE]list[/color] '(0 . [color=MAROON]"LINE"[/color]) ([color=BLUE]cons[/color] 10 p1) ([color=BLUE]cons[/color] 11 p2)))
                       ([color=BLUE]entmake[/color]
                           ([color=BLUE]list[/color]
                              '(0 . [color=MAROON]"TEXT"[/color])
                               ([color=BLUE]cons[/color] 10 ([color=BLUE]trans[/color] p1 0 zv))
                               ([color=BLUE]cons[/color] 11 ([color=BLUE]trans[/color] p1 0 zv))
                               ([color=BLUE]cons[/color] 50 ([color=BLUE]+[/color] a1 ([color=BLUE]angle[/color] '(0.0 0.0) ([color=BLUE]trans[/color] ([color=BLUE]getvar[/color] 'ucsxdir) 0 zv [color=BLUE]t[/color]))))
                               ([color=BLUE]cons[/color] 40 ([color=BLUE]getvar[/color] 'textsize))
                               ([color=BLUE]cons[/color] 07 ([color=BLUE]getvar[/color] 'textstyle))
                               ([color=BLUE]cons[/color] 01 ([color=BLUE]strcat[/color] [color=MAROON]"L="[/color] ([color=BLUE]rtos[/color] ([color=BLUE]distance[/color] p1 p2) 2) [color=MAROON]"m"[/color]))
                              '(72 . 0)
                              '(73 . 2)
                               ([color=BLUE]cons[/color] 210 zv)
                           )
                       )
                   )
               )
               ([color=BLUE]vla-delete[/color] xl)
           )
       )
   )
   ([color=BLUE]princ[/color])
)

([color=BLUE]defun[/color] LM:group3 ( lst [color=BLUE]/[/color] rtn )
   ([color=BLUE]repeat[/color] ([color=BLUE]/[/color] ([color=BLUE]length[/color] lst) 3)
       ([color=BLUE]setq[/color] rtn ([color=BLUE]cons[/color] ([color=BLUE]list[/color] ([color=BLUE]car[/color] lst) ([color=BLUE]cadr[/color] lst) ([color=BLUE]caddr[/color] lst)) rtn)
             lst ([color=BLUE]cdddr[/color] lst)
       )
   )
   ([color=BLUE]reverse[/color] rtn)
)

[color=GREEN];; ssget  -  Lee Mac[/color]
[color=GREEN];; A wrapper for the ssget function to permit the use of a custom selection prompt[/color]

([color=BLUE]defun[/color] LM:ssget ( msg params [color=BLUE]/[/color] sel )
   ([color=BLUE]princ[/color] msg)
   ([color=BLUE]setvar[/color] 'nomutt 1)
   ([color=BLUE]setq[/color] sel ([color=BLUE]vl-catch-all-apply[/color] '[color=BLUE]ssget[/color] params))
   ([color=BLUE]setvar[/color] 'nomutt 0)
   ([color=BLUE]if[/color] ([color=BLUE]not[/color] ([color=BLUE]vl-catch-all-error-p[/color] sel)) sel)
)
([color=BLUE]vl-load-com[/color]) ([color=BLUE]princ[/color])

Posted

Well done ! Thank you Mr. Lee Mac... You are the best..!

  • 10 months later...
Posted

Thanks for your lisp in Post #26.But in this lisp the dimension is not written at the start and the end of the polyline.First dimension is written after the specified step distance.Is it possible to add dimensions to start and the end of the polyline?



Thanks

Umit

Posted
Thanks for your lisp in Post #26.But in this lisp the dimension is not written at the start and the end of the polyline.First dimension is written after the specified step distance.Is it possible to add dimensions to start and the end of the polyline?



The dimensions will start at the startpoint of the first polyline selected, and will continue until the step distance exceeds the length of this first polyline.

  • 9 months later...
Posted (edited)

Hi,

I have many longitudinal profile (hundreds).

This Longitudinal Profile is made using the program URBANO-Canalis.

What should I do is to extract the depth of excavation.

If trim the line the text change of field line length (blue color).

I am attaching an sample.

Depth Category 1.jpg

All the best.

Best Regards,

Doru



Depth Category.dwg

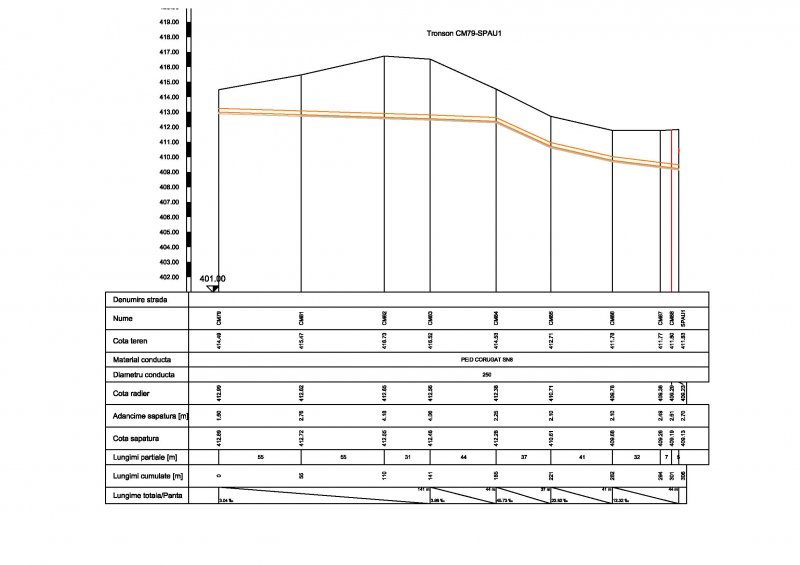

02 Long Profile.jpg

Edited by doru10
Posted

Hi mister Lee,

Is a very good Lisp but help me more if value should be field - line lenght.

All the best.

Best Regards,

Doru

  • 9 years later...
Posted

Hello, cand you please provide the full lisp? Thank You
