alijahed Posted January 29, 2013 Posted January 29, 2013 Hi All, Please see the attached file. Cheers Ali Quote
Dadgad Posted January 29, 2013 Posted January 29, 2013 (edited) Probably want to turn on your NEAREST SNAP for the point on the arc. Wait, is this a 3D solid? Sorry, I had not noticed that this is an Inventor question, my fault. Edited January 29, 2013 by Dadgad Quote

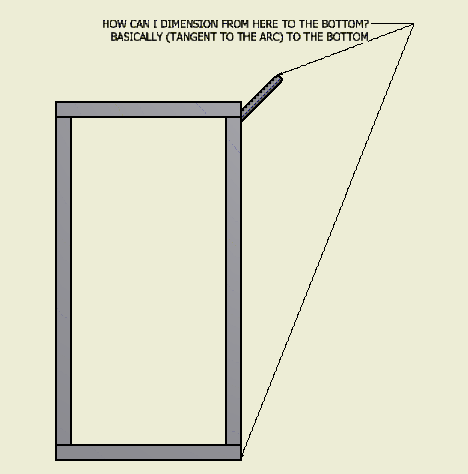

alijahed Posted January 29, 2013 Author Posted January 29, 2013 Yes the image is the side view and in the Drawing environment in Inventor. Quote
JD Mather Posted January 29, 2013 Posted January 29, 2013 Click on the view. Hit S on the keyboard. Project Geometry the arc. Create tangent construction geometry. Finish sketch. dimension Quote
alijahed Posted January 29, 2013 Author Posted January 29, 2013 Dude, I tried this before but Dimension is not picking up the sketch after you Finish sketch! Quote
alijahed Posted January 30, 2013 Author Posted January 30, 2013 Please see the attached file. Test.zip It is pretty straightforward. I tried to do the pack and go but the file gets to big to send. Use frame generator to make it. Hope it helps Ali Quote
