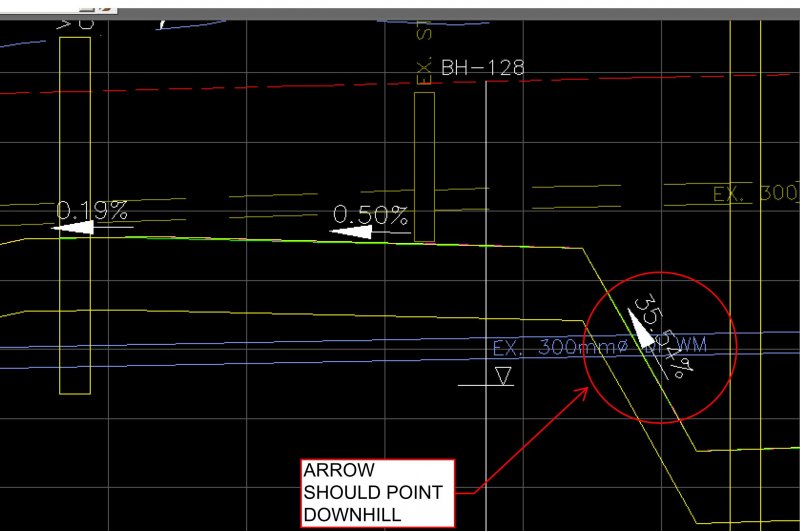

BMCD31 Posted January 25, 2013 Posted January 25, 2013 Does anyone know of a way to achieve what is shown in the attached image? I have added profile labels to display the line slope % and a slope/flow arrow. However, I would like the arrow to flip 180 degrees when necessary to point down hill. Any ideas? Quote
Bill_Myron Posted January 29, 2013 Posted January 29, 2013 You would need to make an expression for the arrow block. If the slope is negative, it will flip the block 180. Might have to do some more geometery in there but that is the jist of it. Quote
BMCD31 Posted January 29, 2013 Author Posted January 29, 2013 Yes that did it, I made an expression with an IF statement for Rotation. Thank you! Quote
