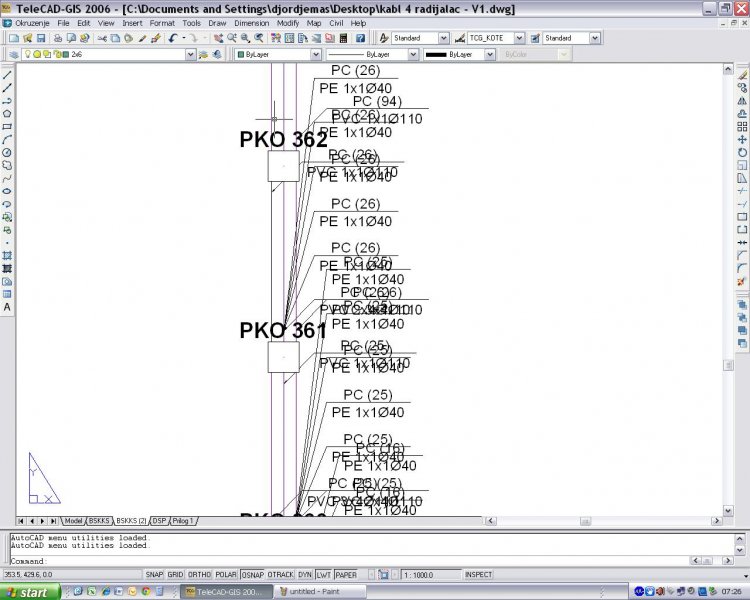

djordjemas Posted January 22, 2013 Posted January 22, 2013 I need help about problem i have that can be seen on the picture i attached. Is there a way that all text and lines shawn on pic be rearanged automatically (not mannualy) by some tool or so,so that they are not on top of each other and they can be normally readable. Thank you all in advance foe help.Great forum.Learned lot from it.Today i`ve joind it. Quote
ReMark Posted January 22, 2013 Posted January 22, 2013 Were they done using multi-leaders? If they are plain DText objects I know of a lisp that will align the text itself but I'm not sure what if anything would be done with the leaders. Need more information. Quote
djordjemas Posted January 22, 2013 Author Posted January 22, 2013 Multi leaders was made automatically with another program that uses acad as a base. When i generate the layout then i got this mess. In model it`s ok. Quote
ReMark Posted January 22, 2013 Posted January 22, 2013 Multileaders were first introduced in AutoCAD 2008. You are using AutoCAD 2006 or so it appears from your profile. Could that be part of the problem? Quote
djordjemas Posted January 22, 2013 Author Posted January 22, 2013 Nope.The drawing was initially made in 2006 and leaders were made in 2006 Acad. Quote
Dadgad Posted January 22, 2013 Posted January 22, 2013 (edited) Welcome to the forum. Are they ANNOTATIVE? Perhaps you could move them to paperspace. Edited January 22, 2013 by Dadgad Quote
BIGAL Posted January 23, 2013 Posted January 23, 2013 Had a quick go at pulling a Mleader apart using dump ent but it does not give the insertion point details so this info is buried a bit deeper. Not sure if you can just change text insertion point or have to redraw entire leader. A theorectical solution probably something like pick a group of mleaders draw an arbitrary line for new position divide equally and redraw. Quote
neophoible Posted January 23, 2013 Posted January 23, 2013 Multileaders were first introduced in AutoCAD 2008. You are using AutoCAD 2006 or so it appears from your profile. Could that be part of the problem? Multi leaders was made automatically with another program that uses acad as a base. When i generate the layout then i got this mess. In model it`s ok. To be clear, and get the right help, it sounds like you should post the drawing file like SLW210 suggested. From what’s been said so far, these do not sound like actual AutoCAD Mleaders. You did not state what other program is inserting them with AutoCAD as the base, but that might be helpful to know. Quote
neophoible Posted January 23, 2013 Posted January 23, 2013 Maybe this thread should have a less generic, more descriptive title? Quote
SLW210 Posted January 23, 2013 Posted January 23, 2013 Might also help to know the name of the third party application. Title changed. Quote
