Calculate distance between two points along polyline

[nkeseci]

Hi,



I need to calculate distance between two points along a polyline. These points may exist on different segments of the same polyline. Maybe there is a function, I couldn't find it.



I'd be very grateful for your help.

[Tharwat]

Take a deep look at the functions that start with vlax-curve-*****

[BIGAL]

If these two points are vertices why not just Getpoint pt1 Getpoint pt2 distance all done. If they are intersection points of say a line intersecting pline then same thing but like Tharwat Vla-intersectwith to work out pt1 pt2



There is plenty of pline vertice lsp here that will pull out the co-ords of the vertice's.



You need to provide some more information.

[nkeseci]

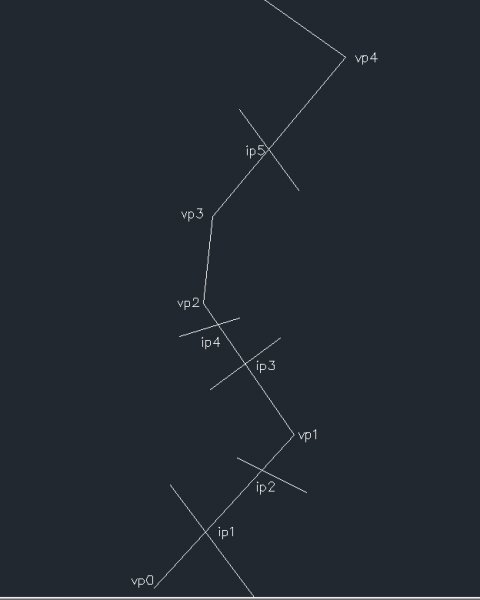

Sample points:

[nkeseci]

Tharwat : I used vlax-curve-getDistAtPoint function but I get nil. i.e. (vlax-curve-getDistAtPoint plObj ip5) where ip5 is an intersection point on pline.



BIGAL : With my lisp code, I have all the intersection points and the verticies. I only need to calculate distance from vp0 to ip1, then vp0 to ip2, vp0 to ip3 and so on. The path must be followed vp0-ip1-ip2-vp1-ip3-ip4-vp2-vp3-ip5 points for length of vp0-ip5, ie. As you guess, the points may vary case to case.

[Tharwat]

Tharwat : I used vlax-curve-getDistAtPoint function but I get nil. i.e. (vlax-curve-getDistAtPoint plObj ip5) where ip5 is an intersection point on pline.



e.g.



(vl-load-com)
(if (and (progn (prompt "\n Select Polyline :")
          (setq e (ssget "_+.:s" '((0 . "*POLYLINE"))))
        )
        (setq p (getpoint "\n Specify point on the previous selected polyline :"))
   )
 (print (vlax-curve-getdistatpoint (ssname e 0) (vlax-curve-getclosestpointto (ssname e 0) p)))
)

[irneb]

Yes, the vlax-curve-* functions are extremely finicky about points being "exactly" on top of the polyline. Usually even snapping to it is not enough. Thus you use the vlax-curve-getClosestPointTo function to convert your point to something "exactly" on top of the PL - as Tharwat's shown.



BTW, do you want to have the distances displayed on the dwg? I.e. something like a chaining-distance? Then perhaps look at this old thread: http://forums.augi.com/showthread.php?40128-distance-and-offset-along-a-polyline

[nkeseci]

Yes, it is working correctly with the vlax-curve-getClosestPointTo function. e.g.



(setq distance (vlax-curve-getDistAtPoint plObj (vlax-curve-getClosestPointTo plObj (list (car intP) (cadr intP) 0.0))))



I want to display those distances like a chaining-distance. I will look at your link



Thank you very much to all of you
