spinecad Posted February 17, 2013 Author Posted February 17, 2013 I don't see an equation.This will be my last response in this thread. For example, I would like to draw the spline between point (1,1) and (4,3). The equations are: x = 1(1 − t)^2 + xc 2t (1 − t) + 4t^2 y = 1(1 − t)^2 + yc 2t (1 − t) + 3t^2 where xc = 3 and yc = 4 Quote
97catintenn Posted February 17, 2013 Posted February 17, 2013 It's better to start a new thread spinecad. While it's easy to think that you are continuing a conversation, it doesn't help the search feature for future users of the site. Each problem needs it's own thread. Quote
PotGuy Posted February 17, 2013 Posted February 17, 2013 How have we gone from 2D Tooth of Gear to a Mathematical equation? Quote

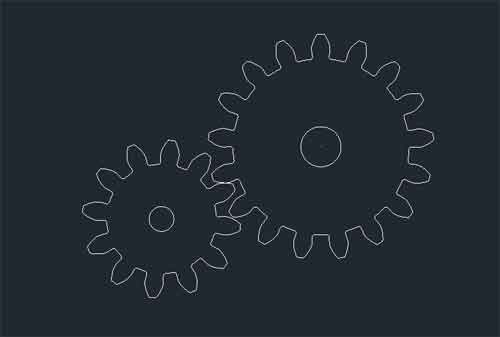

97catintenn Posted February 17, 2013 Posted February 17, 2013 I'm still stuck on the gear, lol. I'm not sure that the teeth are evenly spaced. I used array, and chose the circle for the path, but couldn't figure out which command to use to chose the number of teeth (12) or the automaticly space them out evenly. First array came out perfectly spaced but with 11 teeth. So, I grabbed the grip and moused around till it look right. The bigger sprocket, after array came up a with too big of space left before the original tooth. So, I used the grip again to try to correct it. Thanks for posting the how-to! It's great to learn how to draw the teeth Quote
me-bac Posted August 4, 2014 Posted August 4, 2014 Hi, Could anybody please give me an easy example of how to create a 2D drawing (standard mechanical engineering drawing) of one tooth of gear such as below image? http://i47.tinypic.com/fbi82g.png Thank you You could try to use the free web app at www.me-bac.com to involute a spur gear and download the dxf profile. Bye. Quote
