Saved it in 2004 format. I did not get very far with this one, this is my first experience with the interfere command.

spoon2004.dwg



Thank you for taking the time to look at it. I played with interfere on several shapes and am starting to understand what it does and how I might use it. The value in these tutorials is clear; I don't really need to draw a spoon but the experience and exposure to the techniques is valuable.

Again, thank you.

Tom

[ReMark]

My challenge, if you want to call it that, was for PotGuy to draw two views of a spoon in 2D. Since he has little to no 3D experience I'm not interested in pursuing a 3D spoon at this time. Others may want to take up that challenge on their own.

[PotGuy]

My challenge, if you want to call it that, was for PotGuy to draw two views of a spoon in 2D. Since he has little to no 3D experience I'm not interested in pursuing a 3D spoon at this time. Others may want to take up that challenge on their own.



I'll give 3D a go, but most likely at what you'll get is a crudely subtracted spoon 'bowl', rectangular handle with a shoddy roundness and a very jagged handle!

[ReMark]

2D is fine.

[PotGuy]

2D is fine.



I'll work through part of my lunch then.

[ReMark]

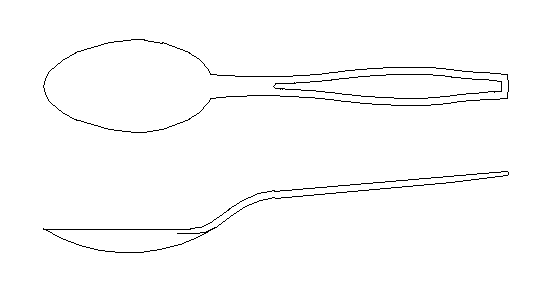

Well I wouldn't want you to think I'd give you a challenge I would not undertake myself so here is my down-n-dirty 2D spoon.



Now it's your turn.

[ReMark]

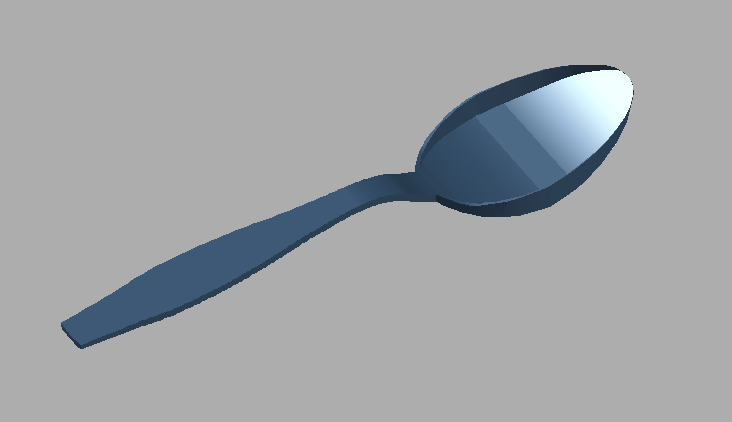

Oh what the heck. I was 2/3rds of the way there so I went the distance and tried my hand at a 3D spoon. Hey! It's my first attempt so cut me some slack. I'm sure it falls far short of JDM's high standards and modern MCAD program but at least it holds water. Ah, I mean....milk. Cheerios for breakfast anyone?



OK, I gave it another look and already I see something I don't like. It took a few minutes to dawn on me so it's back to the drawing board for a bit of refinement. I'll post an updated version later when I find the time. Feel free to dis on my spoon all you want until then.

[JD Mather]

Looks like the 2D is missing some fillets in the top view.

[ReMark]

Yes it is. Only caught my eye after I posted. Argh!

[ReMark]

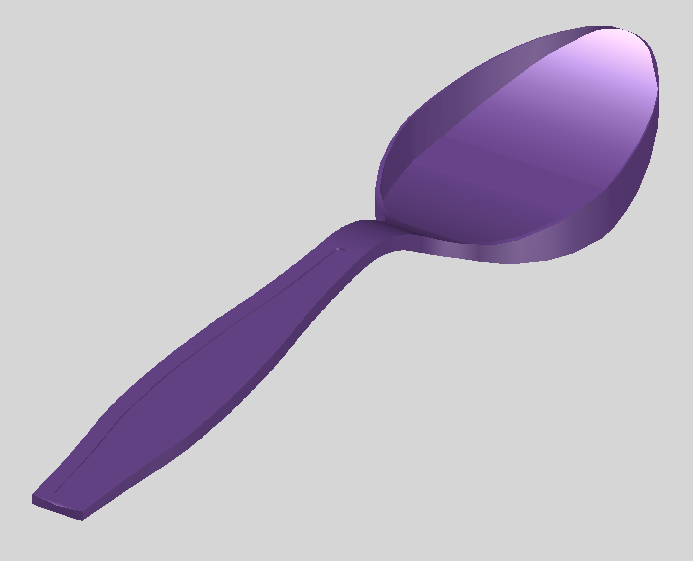

Added the fillets and a little detail in the handle.

Perfection alludes me for the moment. Must think on it some more.

[PotGuy]

[ATTACH=CONFIG]39874[/ATTACH]

Added the fillets and a little detail in the handle.

Perfection alludes me for the moment. Must think on it some more.



Haven't started on my end yet!





Handle wise, have you considered adding a hole near the end of the handle? Like a spoon that's part of a set, that loops round a ring?

[ReMark]

No I have not. My spoon is for having coffee and dessert at the dining table not beans and beer around the campfire. LoL

[PotGuy]

No I have not. My spoon is for having coffee and dessert at the dining table not beans and beer around the campfire. LoL



I was a Scout, so that last one came naturally! I was never good at making a Marhmallow cook, rather than burn it into a gloop of fat and charcoal...

[ReMark]

I've nothing against scouting. I was a Boy Scout at one time myself. I think I joined in 1910.

[PotGuy]

I've nothing against scouting. I was a Boy Scout at one time myself. I think I joined in 1910.



I know you wouldn't! My Smilie was warning you to be careful of cooking Marshmallo-OW!

[PotGuy]

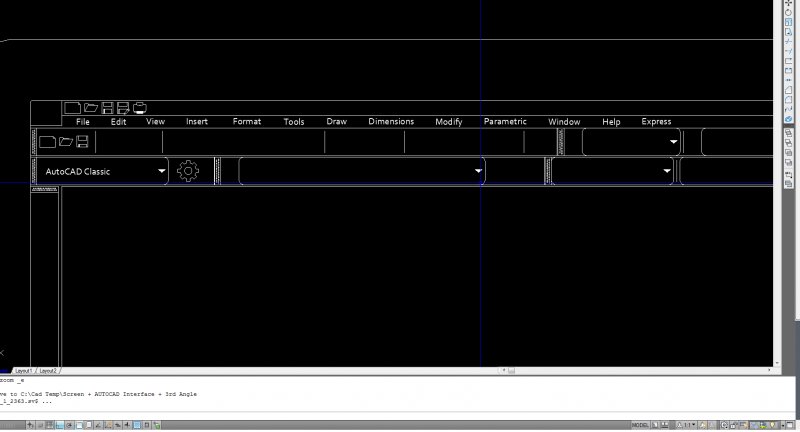

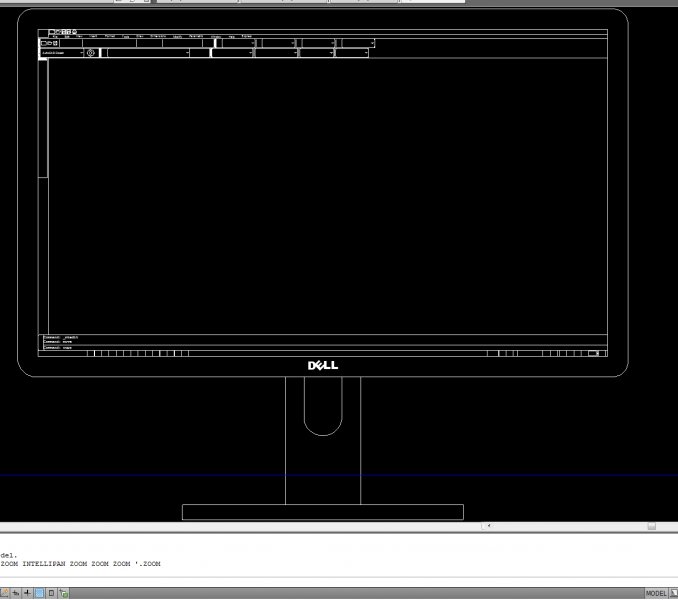

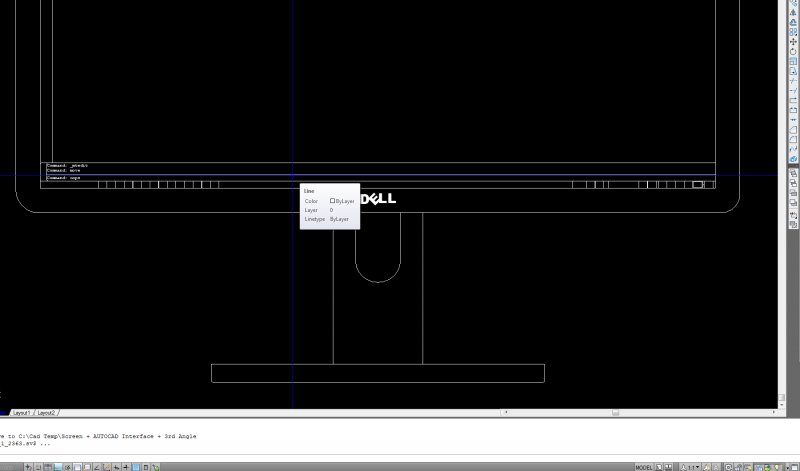

This is not a Spoon, but it is something.



So far, everything I've done is exactly to Scale, including the Text height, spacing, annotations etc.



Autism = Attention to detail. Useful!







[ReMark]

Nice job. Stop stalling.

[PotGuy]

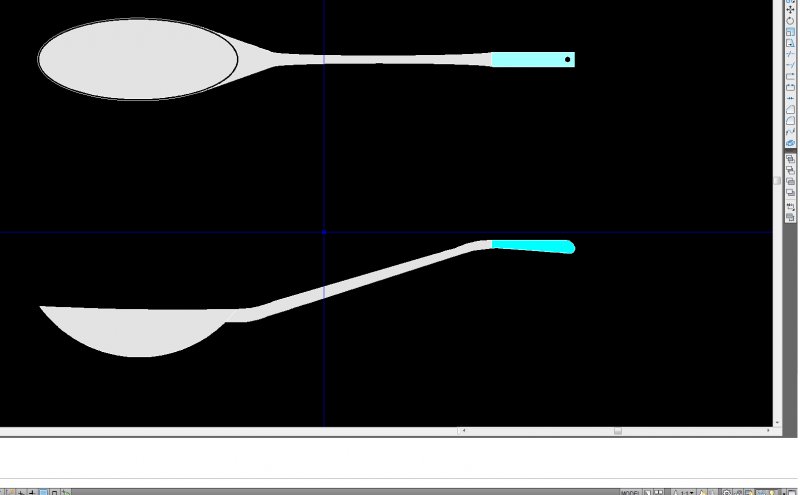

Here's the Spoon. Managed to squeeze it in during Work.



Took about 15 minutes including changing a command to a spline to accomadate hatching.



Used Pline (PE - S for silver handle on Plan view), Elipse, Trim, Hatch, Circle, Fillet



[ReMark]

Good. So now you are ready to go 3D?

[PotGuy]

Good. So now you are ready to go 3D?



I'll give a go at work, and see if I can transfer it to home if i don't get it done.
