3D Lamp

[mvickers89]

http://www.lighting55.com/antinea-floor-lamp-by-terzani.html



Hey guys,



My name is Matt and I am new to Autocad. Trying to get the spiral support drawn in autocad (pictured above). So far I have the base...just do not know how to make the spiral square to look like that.



Lamp.dwg



Any help is greatly appreciated. Trying to learn!



-Matt

[ReMark]

Make one you've got all three as they appear to be the same.



Try a sweep of a square with a twist along a helix.

[ReMark]

Well Matt how are things going? Did you try my suggestion?

[JD Mather]

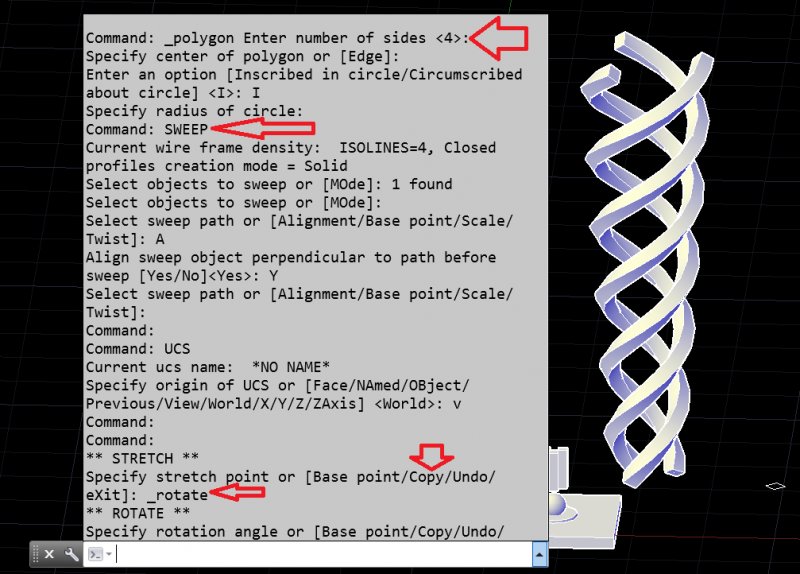

Here are a few clues - (I didn't take the time to try to make it look exactly like your picture).



[mvickers89]

Sorry guys. Been Christmas shopping a little this afternoon. I am getting on now. Is there a reputation button where I can give thanks to the responses?



Will update results

[ReMark]

If you feel so inclined just say "Thanks". It is simple and to the point.

[Peter_Cahill]

http://www.interior-deluxe.com/bellevue-aj2-floor-lamp-p14643.html



Hey guys,



My name is Matt and I am new to Autocad. Trying to get the spiral support drawn in autocad (pictured above). So far I have the base...just do not know how to make the spiral square to look like that.



[ATTACH]39273[/ATTACH]



Any help is greatly appreciated. Trying to learn!



-Matt



Hi, Matt



I suppose you are ready with your model for a long time (I see that the topic is quite old now). Do you still have the files? I'll be glad if you can send me some of them via e-mail. I'm trying to settle a similar task.

Thanks all for the suggestions here!

[JD Mather]

...I'm trying to settle a similar task.



Simply attach your dwg attempt here. Exactly what are you having trouble with?
