gogrey34 Posted September 9, 2019 Share Posted September 9, 2019 On 7/7/2019 at 6:21 PM, ReMark said: You have come to the right thread. Go back to the very first page and look at the second post. Then move on to my subsequent posts. Oleson Village strikes again! It's amazing to see how long this has been creating havoc...with very little changes over the years. By following this thread, I've been able to just about get my drawing completed. The only thing I have left to do is the text for property line lengths/bearings etc. Is it ok to get the info from LIST and enter values using TEXT? Or do they want use to use DIM? I'm driving myself crazy... Thanks for any insight! Quote Link to comment Share on other sites More sharing options...
ReMark Posted September 10, 2019 Share Posted September 10, 2019 There is no reason you could not use the LIST command. Just double check the distances and bearings against those called for in the instructions. The entered information should be parallel to the various property lines. Quote Link to comment Share on other sites More sharing options...
gogrey34 Posted September 10, 2019 Share Posted September 10, 2019 That's what I was leaning towards, but I'm fantastic at overthinking Thank you! Quote Link to comment Share on other sites More sharing options...

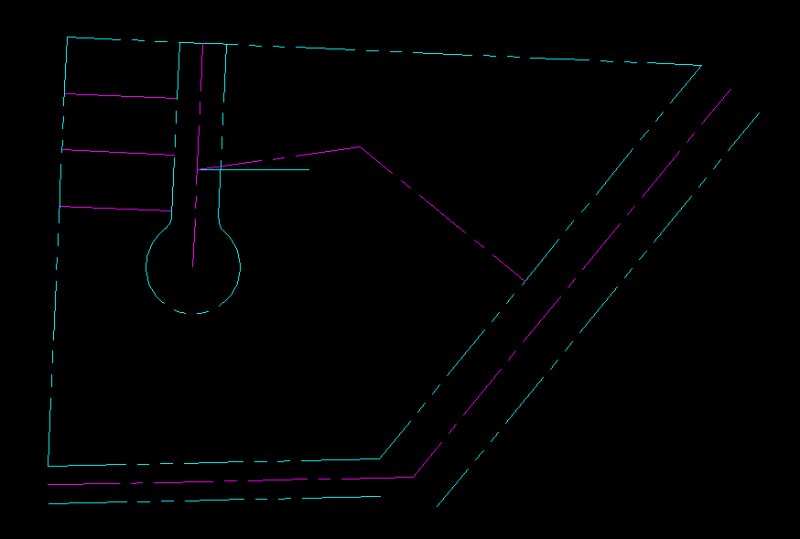

jeffjeff Posted November 25, 2019 Share Posted November 25, 2019 On 12/7/2012 at 1:29 PM, ReMark said: what are the lengths of the purple lines and what distance dos the line start from on the existing road Quote Link to comment Share on other sites More sharing options...
ReMark Posted November 25, 2019 Share Posted November 25, 2019 (edited) You do realize that some of the purple lines are merely there for reference purposes do you not? I am speaking specifically about those purple lines that represent the centerlines of the roads. The three purple lines to the right of the cul-de-sac would be changed to cyan when moved to the correct layer. Edited November 25, 2019 by ReMark Quote Link to comment Share on other sites More sharing options...
Swatson9041 Posted February 13, 2021 Share Posted February 13, 2021 I hope you don’t mind helping. I’m confused. When I punch in the @113.66 I get an error saying that I need to specify point or keyword. Quote Link to comment Share on other sites More sharing options...
Swatson9041 Posted February 13, 2021 Share Posted February 13, 2021 How do I know the bearing of the western boundary Quote Link to comment Share on other sites More sharing options...
BIGAL Posted February 14, 2021 Share Posted February 14, 2021 If you use LIST and select say a line the bearing will be displayed in current units. Line 23.45<20d30'45" Quote Link to comment Share on other sites More sharing options...
ReMark Posted February 14, 2021 Share Posted February 14, 2021 19 hours ago, Swatson9041 said: How do I know the bearing of the western boundary The bearing for the western boundary of the subdivision is S2d28'56"W. If you have already drawn in the other three boundaries then it is only a matter of drawing a line from the west end of the north boundary line to the west end of the south boundary line since Oleson Village consists of only four property lines. Quote Link to comment Share on other sites More sharing options...
ReMark Posted February 14, 2021 Share Posted February 14, 2021 20 hours ago, Swatson9041 said: I hope you don’t mind helping. I’m confused. When I punch in the @113.66 I get an error saying that I need to specify point or keyword. First you start with the Line command and proceed to draw a line from the coordinates for the benchmark specified in your instructions . Then putting aside your mouse momentarily turn to your keyboard on the line that says "Specify next point" type in @113.66<N5d27'23W followed by pressing the Enter key. Quote Link to comment Share on other sites More sharing options...
Swatson9041 Posted February 14, 2021 Share Posted February 14, 2021 Thank you so much! This thread has been a lifesaver! Quote Link to comment Share on other sites More sharing options...

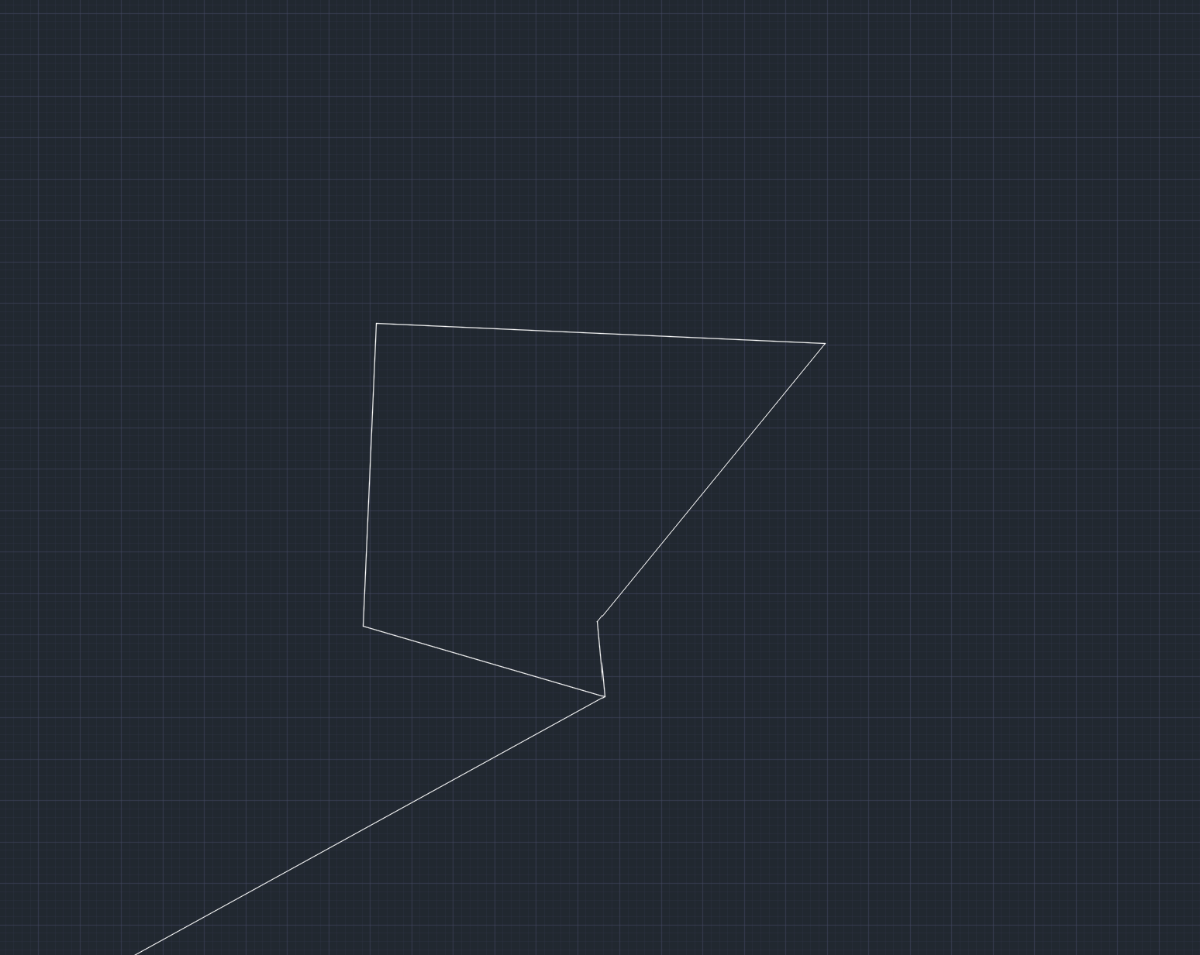

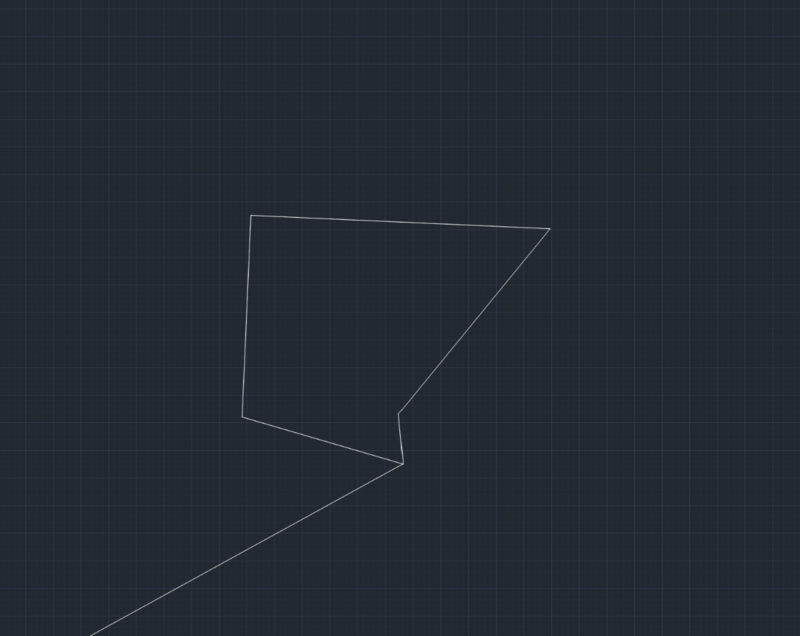

Tay Posted December 18, 2021 Share Posted December 18, 2021 The boundaries of my subdivision are off and I dont have layer for boundaries although I'm doing the same project, Help? Quote Link to comment Share on other sites More sharing options...
ReMark Posted December 20, 2021 Share Posted December 20, 2021 Did you fail to read through the posts contained within this thread? Your boundary issue is addressed therein. Re: Boundary layer. Look at your instructions. I think it is page 2. The student is given a list of layer names, the color to be assigned to the layer and the linetype to be assigned. The Boundary layer makes use of the color Cyan and the Phantom linetype. You need to be drawing the Oleson boundary on the correct layer in order for the color and linetype to agree with the instructions. Quote Link to comment Share on other sites More sharing options...
Tay Posted December 22, 2021 Share Posted December 22, 2021 While I appreciate your help I am struggling with this and I did read..... my project instructions does not have a "Boundary" layer to create.... Quote Link to comment Share on other sites More sharing options...
ReMark Posted December 22, 2021 Share Posted December 22, 2021 12 hours ago, Tay said: While I appreciate your help I am struggling with this and I did read..... my project instructions does not have a "Boundary" layer to create.... Then shouldn't you create one? Wouldn't that be the logical thing to do? The Oleson Village project has been a staple of the P-F AutoCAD curriculum for years. I doubt they would decide to eliminate the Boundary layer at this point in time. Use the criteria I posted above re: Boundary layer and get to work. Quote Link to comment Share on other sites More sharing options...
Swatson9041 Posted December 22, 2021 Share Posted December 22, 2021 Quote 17 hours ago, Tay said: While I appreciate your help I am struggling with this and I did read..... my project instructions does not have a "Boundary" layer to create.... Email the Penn foster instructor. I did early this year and some of the instructions were missing. All I can remember was it was something at the very beginning of the drawing and if you don’t get it right it throws the whole drawing off! Quote Link to comment Share on other sites More sharing options...

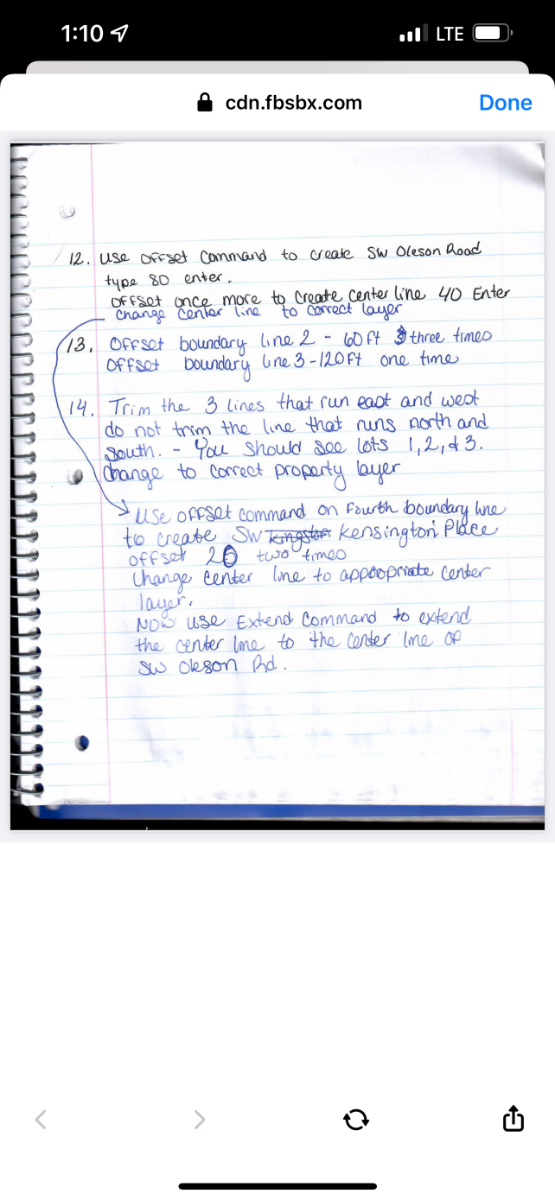

Swatson9041 Posted December 22, 2021 Share Posted December 22, 2021 In response to your message we have reviewed the project instructions on your student portal and it appears that there is one section that does not display correctly. While a correction is being made I have attached a file which contains the "missing bullet" items showing the distances and bearings required for the last two subdivision boundaries. Please feel free to contact me if you have further questions and keep in mind you can always attach your actual .dwg drawing file in a message for review to make sure you are on the right track. Sincerely, Jon D. Instructor 4 main subdivision boundaries.pdf 1 Quote Link to comment Share on other sites More sharing options...
Tay Posted January 1, 2022 Share Posted January 1, 2022 When doing the offset, what distance are you doing for lines 1 and 4? Quote Link to comment Share on other sites More sharing options...
Swatson9041 Posted January 1, 2022 Share Posted January 1, 2022 Quote 1 hour ago, Tay said: When doing the offset, what distance are you doing for lines 1 and 4? 1 Quote Link to comment Share on other sites More sharing options...
MadCadLad Posted January 8, 2022 Share Posted January 8, 2022 I can't find the ROW width of SW Kensington Place. Any idea how I can find this? Quote Link to comment Share on other sites More sharing options...
