Please help with drawing of a pipe

[yasir789]

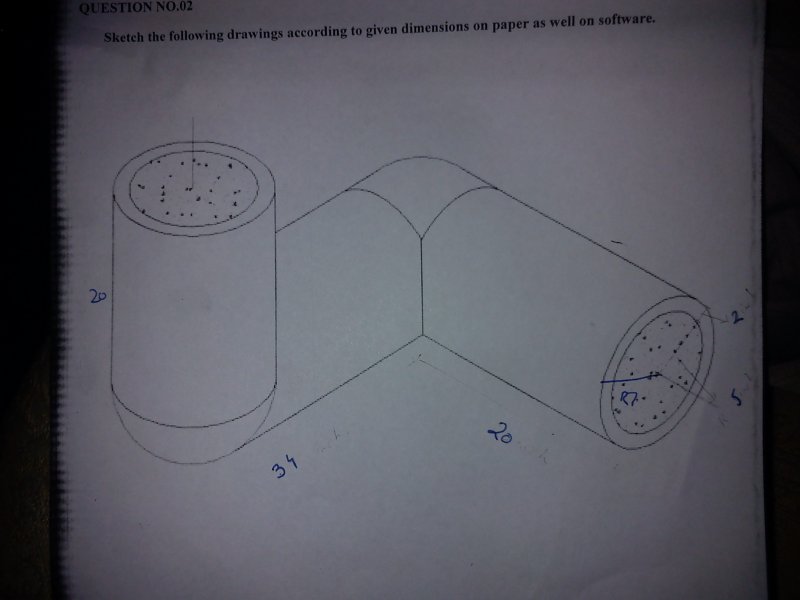

i m a student ...i m learning autocad 2013 in my university our teacher took a quiz and give us a drawing of a pipe bending on 90 degree plz help me wit this

Edited December 1, 2012 by yasir789

[Organic]

No one is going to draw it for you. Ask more specific questions if you are having trouble.

[Cad64]

I have renamed your thread to something much more appropriate. "plz help!!!!!!!!!!!!!!!!!!!!!!!" is not an appropriate thread title.



And by the way, it's Autocad that you're using, not auto can.



Please explain what problems you are having and I'm sure someone will be happy to help you.

[yasir789]

i cant bend the pipe as shown in figure

[Cad64]

Bend the pipe? Are you creating a 3D model?

[yasir789]

yes i m creating a 3d model

[Cad64]

Ok, this is why it's important to be specific about what you need help with. You should have stated in your first post that you were trying to create a 3D pipe.



Until someone else comes along, take a look at this thread: http://www.cadtutor.net/forum/showthread.php?5642-How-do-I-bend-a-3d-cylinder



I have moved your thread to the 3D modeling section.

[yasir789]

bro i have seen that thread but that xpipe and xtube are not working

[Dadgad]

Welcome to the forum.

You can use the SWEEP command to sweep the two different sizes of circles (meaning the ID and OD of the pipe)

along a path which describes the centerlines of the pipe segments. You do not need to put curves in the path, if

you leave the intersections as right angles the software will figure it out when you use the SWEEP command.

Create the path using a 3D POLYLINE, and I suggest that you choose an isometric perspective when creating your path, and

during the rest of the modeling.

After you have swept both of the diameters you will have 2 solids, one representing the ID, which you will have to SUBTRACT from the

larger one which represents the outer diameter of the pipe. Follow the commandline prompts

carefully.

At that point you should be left with an accurate 3D Model of the pipe.

Edited December 1, 2012 by Dadgad

[JD Mather]

I doubt that Sweep will work (self intersecting geometry).

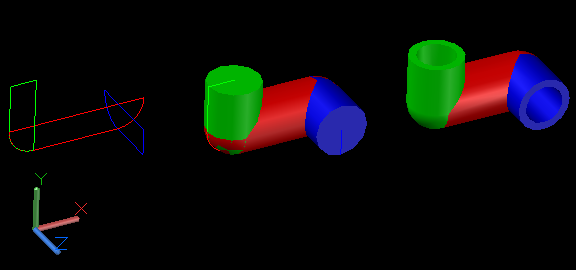

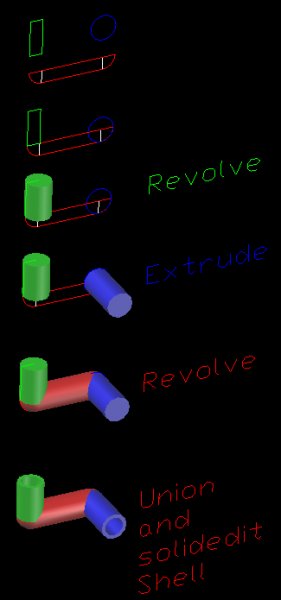

If it doesn't - I would create 3 profiles as shown and then do 3 Revolves.

Join and then solidedit shell.



[yasir789]

sorry bros i cant do it coz i m a beginner .. so ca u pleas send me *.Dwg file

plz,plz,plz.....

[Cad64]

sorry bros i cant do it coz i m a beginner .. so ca u pleas send me *.Dwg file

plz,plz,plz.....



Sorry but we don't do that here. We are a help site. We do not provide finished projects to students. The whole point of this exercise is for you to learn how to build a 3D model of that pipe. If we do it for you, what will you have learned?

[JD Mather]

sorry bros i cant do it coz i m a beginner .. ........



What can't you do?

Draw a line?

Draw a rectangle?

Draw and trim a circle?



Let's walk through this step-by-step.

Make a rectangle 48x7.

Attach the dwg file here.

[yasir789]

What can't you do?

Draw a line?

Draw a rectangle?

Draw and trim a circle?



Let's walk through this step-by-step.

Make a rectangle 48x7.

Attach the dwg file here.

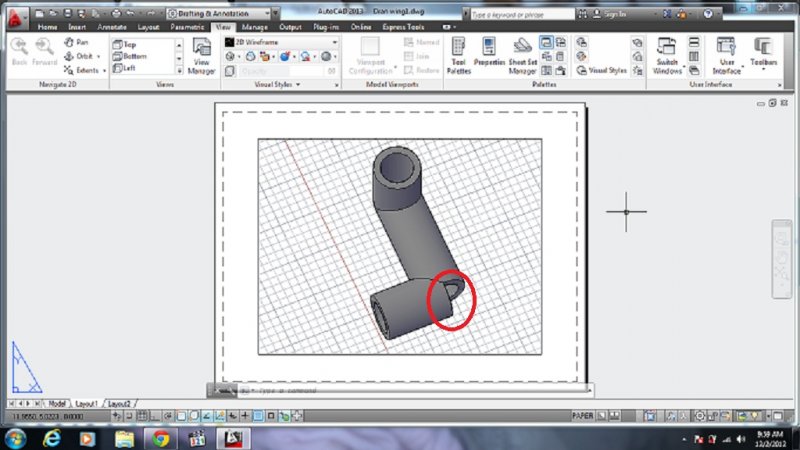

bro i have done it till here now i just want help with that bend in pipe dia garam.....

[ReMark]

A revolved (90 deg) profile would work.

[JD Mather]

Lets start from scratch.



Draw a horizontal line 34 long.

Draw a vertical line at one end of this horizontal line 7 units long.

Attach your file or image of your two lines here.

[mikekmx]

sorry bros i cant do it coz i m a beginner .. so ca u pleas send me *.Dwg file

plz,plz,plz.....





you need to be able to do it yourself, surely?



try typing "3d pipe autocad" into yt. it is a fairly basic procedure.

[JD Mather]

My first example was more complicated than needed.

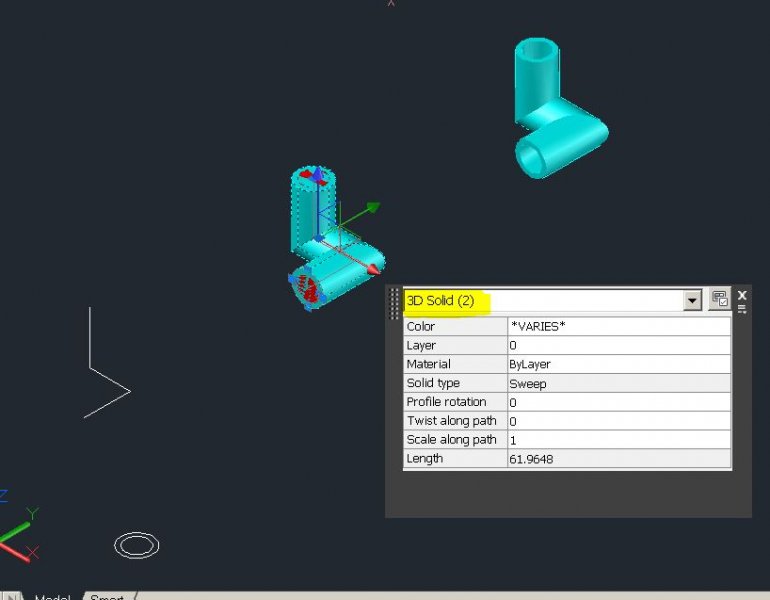

Maybe you can figure out from this example

[mikekmx]

sorry to butt in, but what is wrong with drawing a pathline and a circle and sweeping the circle along the path? bosh bosh

[JD Mather]

sorry to butt in, but what is wrong with drawing a pathline and a circle and sweeping the circle along the path? bosh bosh



Attach your proposed solution here (or picture of...).



What's wrong with your solution? I don't know because I didn't try it, because I don't believe it will work.
