Gavin Studd Posted November 23, 2012 Posted November 23, 2012 Hi guys, is there a way of having different size dimensions on the same drawing? when i go into Annotate, then dimensions and change text size it changes all of the dimensions. in other cad packages ive used you can change selected text and so on a drawing you can for example you can have some text at 100mm and some at 25mm. Quote

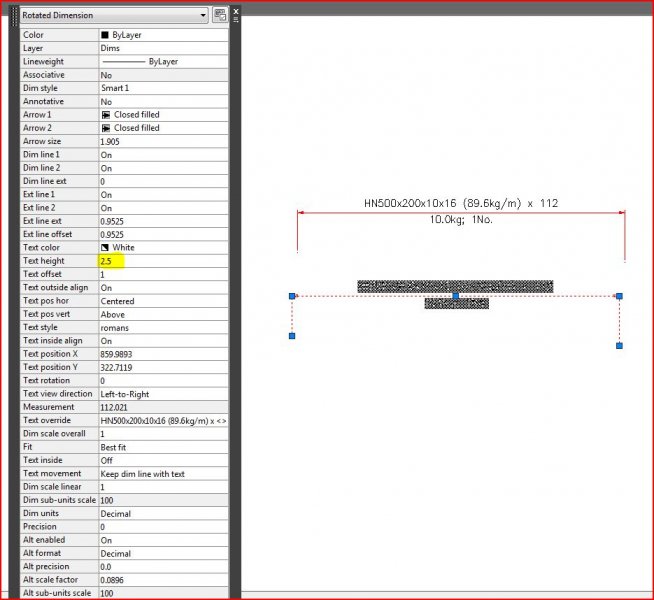

Dadgad Posted November 23, 2012 Posted November 23, 2012 Each dimension style contains a specified TEXT HEIGHT. If you want you can create another DIMSTYLE which will use a different TEXT HEIGHT in the definition. Or you can selectively click on a dimension to SELECT it, and then change the TEXT HEIGHT in the QUICK PROPERTIES palette (if you use it, I live by it) or the PROPERTIES. Quote
Gavin Studd Posted November 23, 2012 Author Posted November 23, 2012 that works brilliantly thanks Quote
