Wire Annotation of panel footprint affect terminal strip editor layout.

[laughingod]

Hello all,



I am new to the forum, just want to thank you all for you help.



I am using Autocad Electrical 2012

My problem is everytime after I have set my terminal strip in the panel layout with wiring annotation, when I re-run the "wire annotation of panel footprint" command, it will affect the layout (whether it is internal or external wire) even though the wires are in the right terminals.

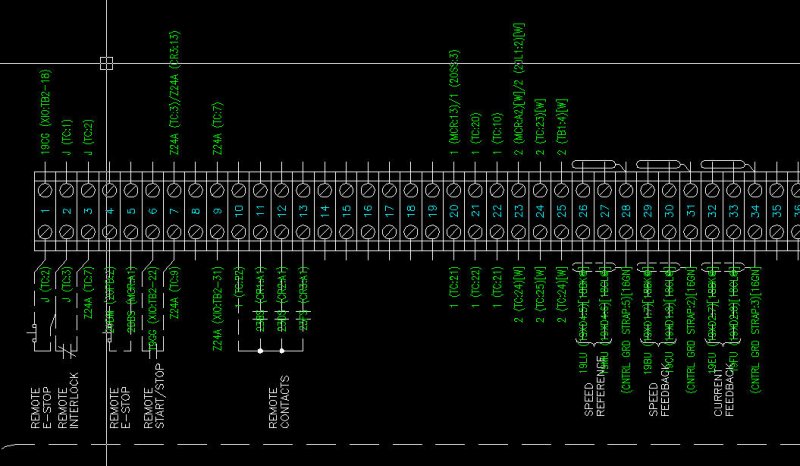

Is there a way to set in in place so that everytime I run "wire annotation of panel footprint", it will not affect whether it is internal or external. See attached pictures showing what happened, versus what I needed.



Let me know if my question is not clear, Thank you so much.
