shahbaba2012 Posted October 14, 2012 Share Posted October 14, 2012 hi, I want to convert a complex object into solid, so that I can measure its volume. Please see attachment. regards, Object.dwg Quote Link to comment Share on other sites More sharing options...
shahbaba2012 Posted October 14, 2012 Author Share Posted October 14, 2012 Hi, I have a complex object( see dwg) and I want to convert it into solid and finally determine it volume. For simple object its easier but how to do it with such objects? Thank in advance. Object.dwg Quote Link to comment Share on other sites More sharing options...
fuccaro Posted October 15, 2012 Share Posted October 15, 2012 I approved the posts and I merged them in this thread. Shahbaba, plesa have some patience until your message appears. Quote Link to comment Share on other sites More sharing options...
nod684 Posted October 15, 2012 Share Posted October 15, 2012 Welcome to the Forum here you go.. please see attachment Object_SOLID.dwg Quote Link to comment Share on other sites More sharing options...
shahbaba2012 Posted October 16, 2012 Author Share Posted October 16, 2012 @nod684 But how can do it. Quote Link to comment Share on other sites More sharing options...

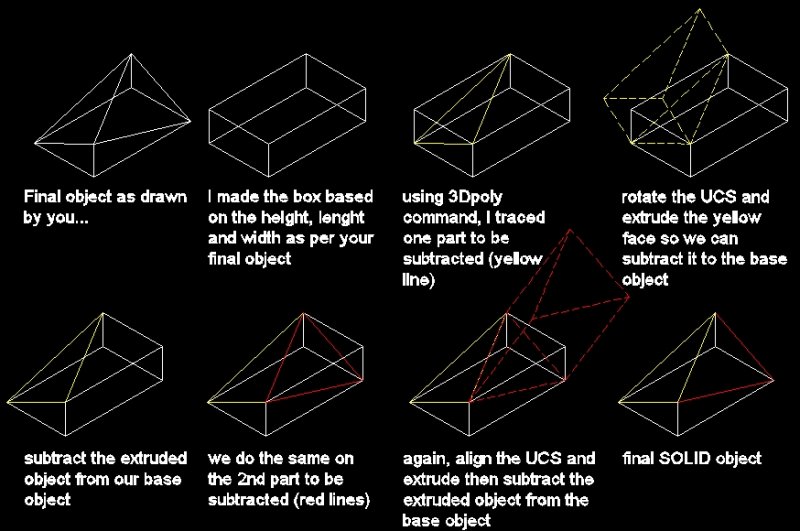

nod684 Posted October 17, 2012 Share Posted October 17, 2012 @nod684 But how can do it. see image below : Quote Link to comment Share on other sites More sharing options...
ReMark Posted October 17, 2012 Share Posted October 17, 2012 Nice explanation nod684. Quote Link to comment Share on other sites More sharing options...
nod684 Posted October 17, 2012 Share Posted October 17, 2012 Nice explanation nod684. Thanks a lot mate Quote Link to comment Share on other sites More sharing options...

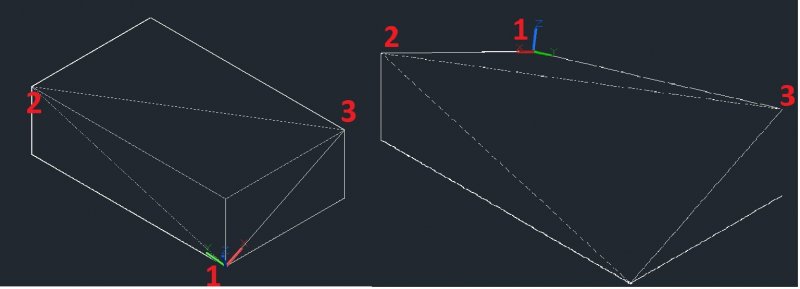

hoss Posted October 17, 2012 Share Posted October 17, 2012 Other option, draw a box on the base and use UCS, 3P and slice corner ( repeat fo rother side) Quote Link to comment Share on other sites More sharing options...
nod684 Posted October 19, 2012 Share Posted October 19, 2012 and for the volume, use MASSPROP command Quote Link to comment Share on other sites More sharing options...
