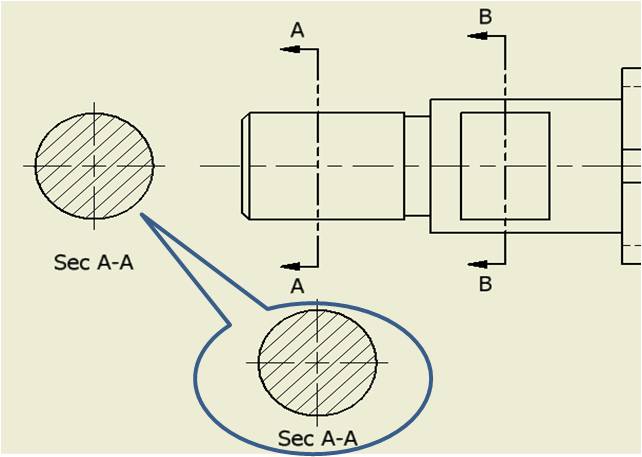

yahia madieh Posted September 23, 2012 Posted September 23, 2012 How to move the Fig Sec A-A to the new position below the cutting line A-A? Quote
JD Mather Posted September 23, 2012 Posted September 23, 2012 Right click an Break Link (or something like that) then Right click Align. Quote

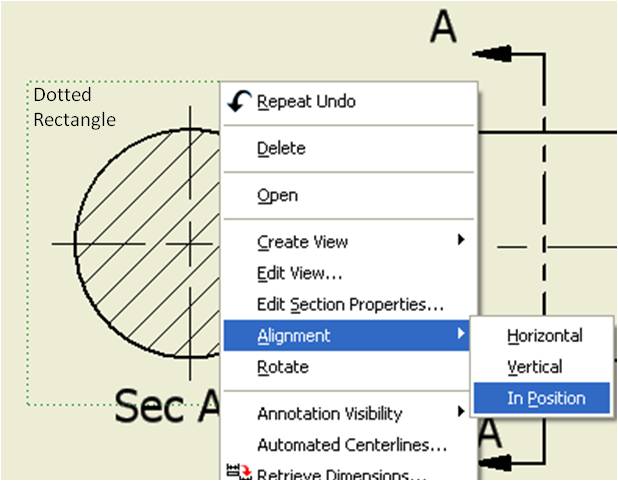

yahia madieh Posted September 24, 2012 Author Posted September 24, 2012 Thanks JD Mather, Right click a Dotted Rectangle which includes the hatched circle- sectional view Choose the Alignment -----> In Position Finally Drag the view---->and move it to the new position. Quote
JD Mather Posted September 24, 2012 Posted September 24, 2012 Glad you figured it out - I didn't have access to Inventor when I replied and was going by memory (which isn't so good these days). Quote
