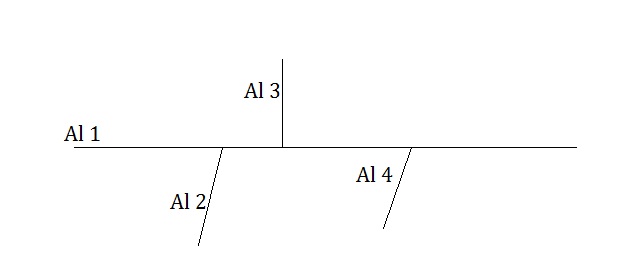

wary faraj Posted September 9, 2012 Posted September 9, 2012 (edited) In this image below, how can I show these intersections in the Al1 profile? please help me... Edited September 10, 2012 by wary faraj Quote
BlackBox Posted September 9, 2012 Posted September 9, 2012 A couple of things.... First, please give your threads a title that allows others to understand what this thread is about; yours is very vague. Second, we need more information... What does the image you show represent, a student homework problem? Quote
CyberAngel Posted September 10, 2012 Posted September 10, 2012 I would guess that Al 1 means Alignment 1, so that's an L not a pipe. How you show them depends on what these alignments are--roads, pipes, or something else. Quote
wary faraj Posted September 11, 2012 Author Posted September 11, 2012 OK dude I will try to explain it the image is 4 alignment, and they are intersected, and I want to show the intersections in profile of alignment 1, and they are located at which station? A couple of things.... First, please give your threads a title that allows others to understand what this thread is about; yours is very vague. Second, we need more information... What does the image you show represent, a student homework problem? Quote
wary faraj Posted September 11, 2012 Author Posted September 11, 2012 Yes you are right CyberAngel I would guess that Al 1 means Alignment 1, so that's an L not a pipe. How you show them depends on what these alignments are--roads, pipes, or something else. Quote
