batt insulation .pat

[meridian]

by any chance does anyone have a .pat file of batt insulation



i would appreciate it

thanks,

[ReMark]

A quick Internet search should turn up a number of batt insulation hatch files. Or try searching CT by using the word "insulation" as your search criteria.

[meridian]

A quick Internet search should turn up a number of batt insulation hatch files. Or try searching CT by using the word "insulation" as your search criteria.



i tried searching but i havent been successful. i found a couple but in the end they didnt work properly

[ReMark]

Where did you search?



Never mind. Use the one in this thread from CADTutor.



http://www.cadtutor.net/forum/showthread.php?34348-Batt-Insulation-Hatch



AutoCAD 2008....that means you could use this dynamic block version of batt insulation.



http://www.cadforum.cz/catalog_en/?q=insulation+hatch

[meridian]

yes i tried this one and it doesnt work.

im trying to upload it to revit if that helps

[ReMark]

What do you mean it doesn't work? Since your profile says AutoCAD 2012 I just assumed that the program you were working in. I know nothing about Revit. I assume however that a simple AutoCAD hatch pattern would work in Revit as well.

[meridian]

im using both systems revit 2012 & autocad 2012....for this particular topic im trying to load the .pat file in revit so i can use it. i have used various .pat files in the past for both autodesk platforms so yes it does work but it doesnt work for the particular batt file u sent me too

[ReMark]

Did you follow the instructions contained within the thread I sent you to?



Did you try the dynamic block version?

[meridian]

dynamic block? there are no blocks in revit

all i did was change the .txt file to a .pat file, that works and im actually able to load it in revit but in my preview screen and on plan it shows the lines out of whack

[ReMark]

Out of whack how? Did you adjust the scale factor as suggested in the last post of the thread you got the hatch from? Can you post an image?

[meridian]

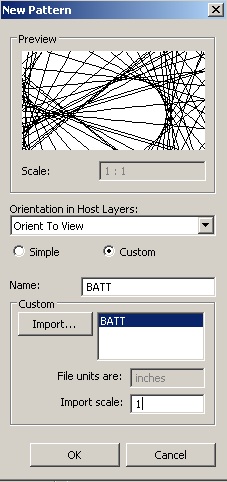

this is what i see, changing the scale makes it worse

[BIGAL]

Search a bit more here for Insulation theres also lisps for drawing insulation.

[SLW210]

I moved your thread to the Revit General forum.

[Lee Roy]

Revit has an insulation button (Annotate Tab -> Insulation). Try as you will, you will NOT get a batt insulation pattern to work as you want it to. Trust me, I've spent countless hours trying and there's not much in Revit that I cannot do.
