EvanZabadah Posted August 28, 2012 Share Posted August 28, 2012 Ive got this blade ive got to draw the revolve I think would be the way to go but I am having problems gettting the curve with the arc or spline command. how do you think the best way to do this would be?Thanks Quote Link to comment Share on other sites More sharing options...
EvanZabadah Posted August 28, 2012 Author Share Posted August 28, 2012 Not extrude loft Quote Link to comment Share on other sites More sharing options...
ReMark Posted August 28, 2012 Share Posted August 28, 2012 The blade isn't circular? Is the edge beveled? I don't see where REVOLVE would be used for this particular object. Quote Link to comment Share on other sites More sharing options...
ReMark Posted August 28, 2012 Share Posted August 28, 2012 A rough approximation of your blade done in AutoCAD. No actual dimensions were used in the construction of this object. Everything is a figment of my imagination. Quote Link to comment Share on other sites More sharing options...
EvanZabadah Posted August 28, 2012 Author Share Posted August 28, 2012 Ive got it I used the loft to fill it out then used the loft to cut it out I would still like to know how anyone else would do it Quote Link to comment Share on other sites More sharing options...
EvanZabadah Posted August 28, 2012 Author Share Posted August 28, 2012 The blade is circular and concave it has a beveled edge Quote Link to comment Share on other sites More sharing options...
ReMark Posted August 28, 2012 Share Posted August 28, 2012 (edited) Circular and concave. Now I see why you mentioned Revolve. Well at least I guessed right on the beveled edge. Can you post an image of what you created? Thanks. Question. Is the blade curving up or down? Not sure I can tell. My guess is curving "up". Where is this blade used and how is it mounted? Edited August 28, 2012 by ReMark Quote Link to comment Share on other sites More sharing options...
JD Mather Posted August 28, 2012 Share Posted August 28, 2012 (edited) Ive got it I used the loft to fill it out then used the loft to cut it out I would still like to know how anyone else would do it Looks like a simple Revolve to me (except of course for the "fins"). Attach your file here. Blade.zip Edited August 28, 2012 by JD Mather Quote Link to comment Share on other sites More sharing options...
EvanZabadah Posted August 28, 2012 Author Share Posted August 28, 2012 Frame for Disk Tool Bar.ipt having problems uploading file Disk for Stalk Chopper.pdf Quote Link to comment Share on other sites More sharing options...

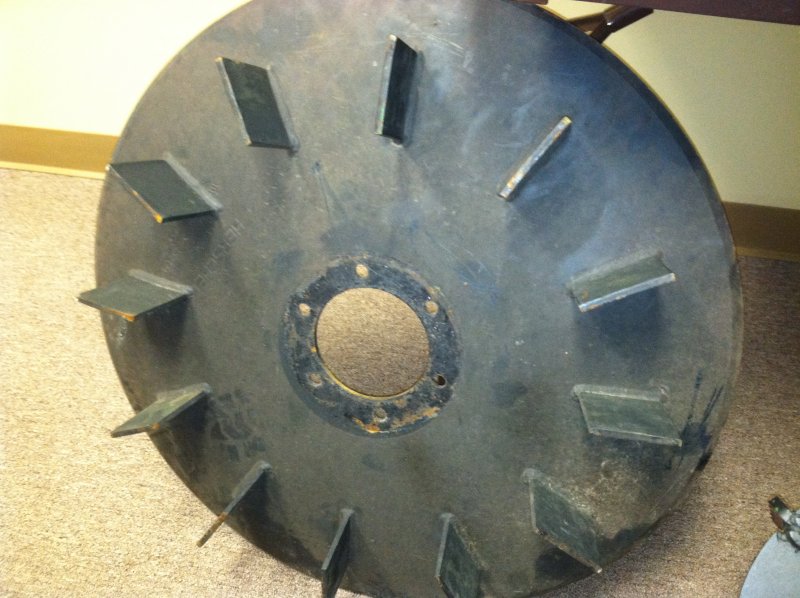

EvanZabadah Posted August 28, 2012 Author Share Posted August 28, 2012 The Blade is used with another blade to pull cotton stalks it is attached with a circular flange and a shaft that is inside of an offset bearing housing http://www.youtube.com/results?search_query=harrell+stalk+puller&oq=harrell+stalk+puller&gs_l=youtube.3...1509.8123.0.9245.20.20.0.0.0.0.265.2023.12j7j1.20.0...0.0...1ac.8oKT7ZnwzS4 If this link doesnt work go on you tube and search harrell stalk puller to see the blades in action Quote Link to comment Share on other sites More sharing options...
