Dimension Text Direction & Position

[Dave^]

Hi Gents,



Long time no pester!!



I'm looking for a "easier" way of changing specific dimensions to read "right-to-left" and be positioned "below" the dim line.



Due to mvsetup, when rotating my views in my viewports, text on the Y-axis is upside down.



I know there's an way to change properties, i have "(vlax-property-available-p x 'explodable)" in a lisp (which I think I got from here) to change blocks from not being able to be exploded.



I've wasted an hour searching for a solution to a 5min problem...



Any hints?

[Lee Mac]

Try this Dave:

(defun c:dimupd ( / sel )
   (if (ssget "_:L" '((0 . "DIMENSION")))
       (progn
           (vlax-for obj
               (setq sel (vla-get-activeselectionset (vla-get-activedocument (vlax-get-acad-object))))
               (vla-put-dimtxtdirection obj :vlax-true)
               (vla-put-verticaltextposition obj acunder)
           )
           (vla-delete sel)
       )
   )
   (princ)
)
(vl-load-com) (princ)

[Dave^]

Legend, thanks Lee...



1 virtual Friday pint for you!!!

[Lee Mac]

Cheers!

[Dave^]

Oh, by the way...



Part of my hour search earlier was playing Mastermind... So thanks for that too!!

[Lee Mac]

Happy to assist with your procrastination

[mailmaverick]

Dear Lee,



From where did you get to know about "vla-put-dimtxtdirection", "vla-put-verticaltextposition" and acunder properties ?



The biggest problem in Visual LISP is that proper listing of all functions along with their explanation and properties are not available anywhere properly.

[Lee Mac]

See this tutorial

[OMEGA-ThundeR]

Great piece of code there Lee Mac, i would like however to it being able to change it back with the same command.



Something like



If (Dimension is normal) {
  - Change view direction to Right-to-Left
  - Change Text pos vert to Below
} else if (Dimension is allready changed) {
  - Change view direction back to Left-to-Right
  - Change Text pos vert back to Above
}



Would that be possible? (ofcourse it would ) And how?

[Lee Mac]

Great piece of code there Lee Mac, i would like however to it being able to change it back with the same command.



Try the following:

(defun c:dimupd ( / sel )
   (if (ssget "_:L" '((0 . "DIMENSION")))
       (progn
           (vlax-for obj
               (setq sel (vla-get-activeselectionset (vla-get-activedocument (vlax-get-acad-object))))
               (vlax-put obj 'dimtxtdirection (~ (vlax-get obj 'dimtxtdirection)))
               (if (= acunder (vla-get-verticaltextposition obj))
                   (vla-put-verticaltextposition obj acabove)
                   (vla-put-verticaltextposition obj acunder)
               )
           )
           (vla-delete sel)
       )
   )
   (princ)
)
(vl-load-com) (princ)

[lamensterms]

Very nice routine Lee, thank you very much for providing it.

[francine2013]

Hello,

I'm looking to find a way to align multiple dimension text. The reason is that I'm using the Viewport and all dimension aren't visible. Attached are 2 drawings explaining my problem, to change the position, I manually copied the coordinates in the properties and inserted them in the dimensions I wanted to change.

Is it possible, by using the text position X or Y coordinate, to modify by lisp the other dimensions?

I have started the routine from this forum but I don't know how to make it work. I have no idea how to program lisp.

Can somebody help me please.

Many thank

DimensionAlignManualy.dwg Dimension.dwg DimTextMove.lsp

[BIGAL]

Not sure but dim hor 2 points, then Base pick 1st dim then pick next pt, next pt all done.

[francine2013]

Hello Bigal,

I think your proposal is not what I'm looking for.

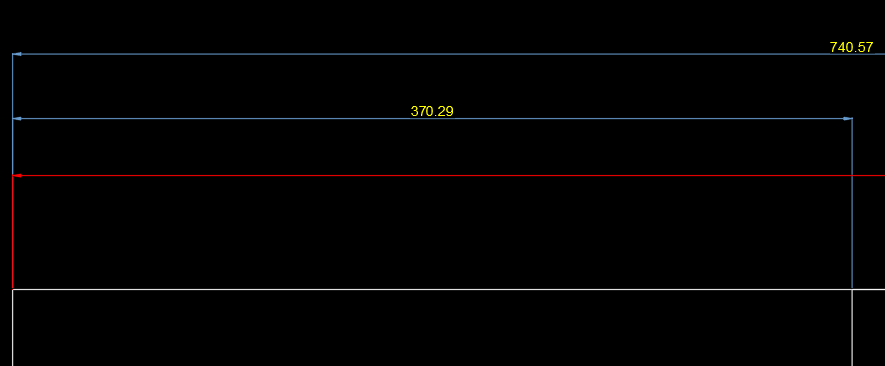

When I'm working on the model space I would like to move the dimension text (in red) to the same x position as the visible dimension





[BIGAL]

Could read the dim string sort on that then edit the order, updating the dimension location,  a doable task, but for me do it right in 1st place.

[francine2013]

I found a lisp on the Autodesk forum but it works only with horizontal dimension.

How to change this lisp so that it works for both cases?

Autodesk Forum : https://forums.autodesk.com/t5/autocad-forum/lisp-routine-to-slide-dimension-text/td-p/5189789





tt.lsp

[francine2013]

this is what I'm exactly looking for but I can't get the lisp to work, the DTA command doesn't appear



[BIGAL]

If you have the lisp is it open code or a FAS ? If open look for C:DTA or something similar that is the function command name after the c :

Edited November 6, 2021 by BIGAL

[francine2013]

Hi Bigal

Here the lisp that I upload, but in Vlx format. And c:DTA is not working

DTA (v1.0).VLX

Edited November 6, 2021 by francine2013

[francine2013]

Gile solved my request with a lisp at the end of the following page:

https://cadxp.com/topic/53420-aligner-les-textes-de-cotation-en-modifiant-les-propriétés-des-coordonnées-du-texte/
